5. Stand Information Contacts
Workstation 820 System Unit Input/Output (IO) Panel
The Workstation 820 system unit IO panel includes ports for power, network
connectivity, and peripherals.
Note:
The Workstation 820 ships with protective covering installed over the
Network and USB (CFD) ports. It is not necessary to remove the protective
covering unless the ports will be used. If required, remove the protective
covering by peeling from the end.

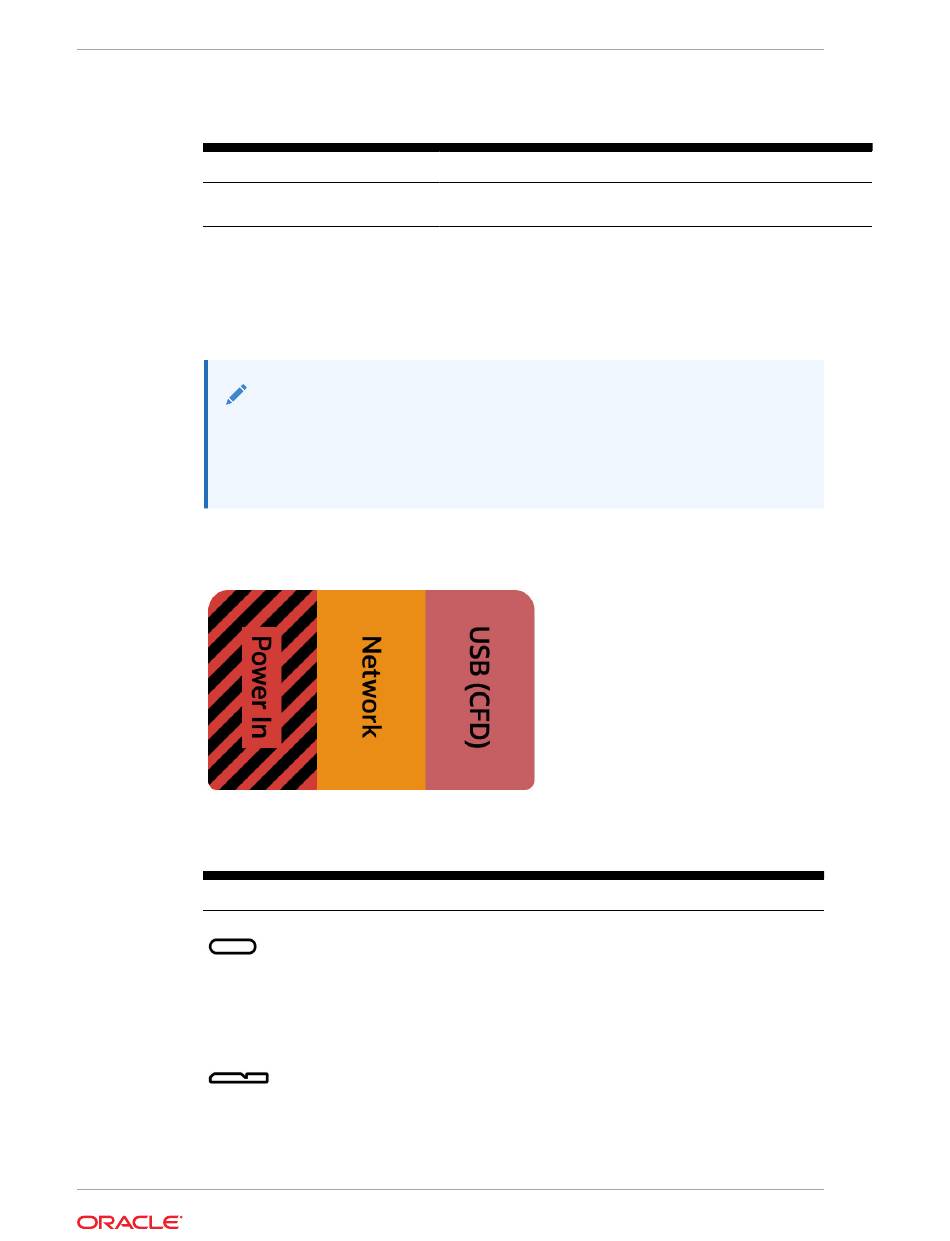

Figure 2-2
Table 2-2
Port
Power In
Network
(Cont.) Oracle MICROS Workstation 820 System Unit Basic Features
Description
Contact points used to transmit stand-specific information,
including part and serial numbers.
Workstation 820 System Unit IO Panel
Workstation 820 System Unit IO Panel Ports
Description
•
For configurations without the Peripheral Expansion Module:
Connect the included MICROS power adapter to the Power In
port.
•
For configurations with the Peripheral Expansion Module: Connect
cable from Workstation 820 Power In port to the Peripheral
Expansion Module System port. The cable provides necessary
connectivity for power and IO ports.
Lets you connect the Workstation 820 system unit to a wired network
via the Ethernet adapter cable for Oracle MICROS Workstation 8
Series.
Note: It is not necessary to remove the protective cover from the
Network port if wireless networking or the Peripheral Expansion
Module will be used.
Workstation 820 System Unit Input/Output (IO) Panel
Chapter 2
2-4
