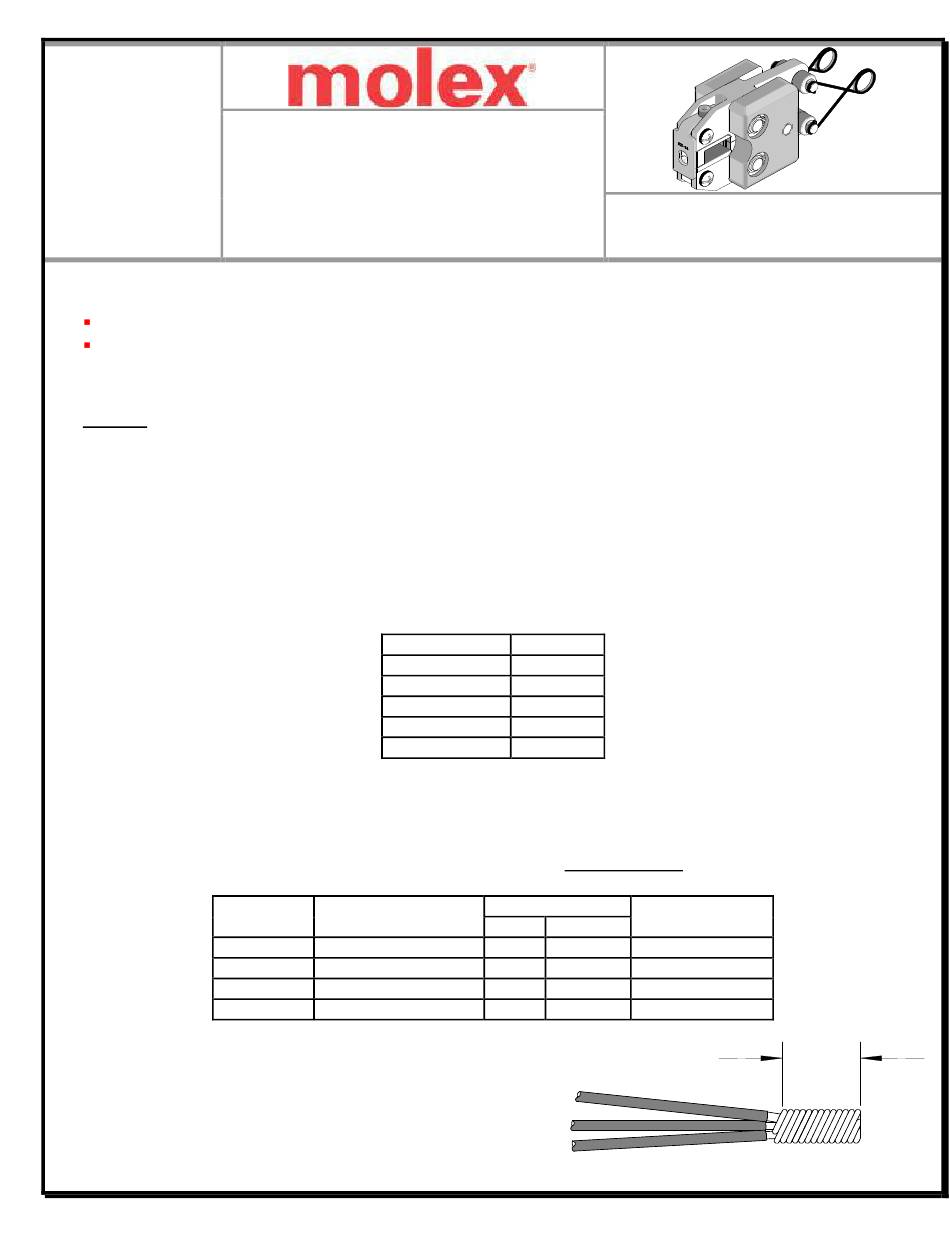

AT-2214 Head Crimp Tool
Air Powered
Crimp
Tool Head
FEATURES
Quick-change tool head for the 19279-0001 (AT-200)
A precision user-friendly terminal locator stop holds terminals in the proper crimping position
SCOPE
Products: Nylon closed end connectors 14 - 22 AWG. This tool head is intended for use in the 19279-0001 (AT-
200) either hand held or with optional bench adapter 19078-0307 (ATBA) and foot switch.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The
following charts show the UL specifications for various wire sizes. The tensile strength is shown in pounds and
indicates the minimum acceptable force to break or separate terminal from the conductor. On this style product,
only the reading from the smallest wire AWG is used. See Chart 1.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
Terminal No.
19160-0012
19160-0013
19160-0015
19160-0016
OPERATION
Refer to the instruction manual for the 19279-0001 (AT200) for
mounting this crimp tool head.
Doc No: ATS-640053400
Revision: B
Application Tooling
Specification Sheet
Wire Size (AWG)
22
20
18
16
14
* UL – 486 C – Closed end connectors and Wire Nuts.
Terminal Eng No. (REF)
NC-2214
NC-2214-BA
NC-2214-L
NC-2214-Y
Release Date: 06-23-03
Revision Date: 09-30-05
Engineering No. AT 2214
*UL – 486 C
8
10
10
15
25
Wire Size
Wire Combinations
AWG
mm²
14 - 22
(2.00-0.35)
See Chart 1
14 - 22
(2.00-0.35)
See Chart 1
14 - 22
(2.00-0.35)
See Chart 1
14 - 22
(2.00-0.35)
See Chart 1
UNCONTROLLED COPY
Order No. 64005-3400
3/8 "
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 64005-3400
Summary of Contents for molex 64005-3400
- Page 1 The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to this list and an up to date copy is available on www.molex.com. Wire Size Terminal No.
- Page 2 AT-2214 Head Crimp Tool Wire Preparation Pre-twisted wire not required for OEM applications. For Solid wire (OEM only) strip leads to 3/8 of an inch. Insert into connector and crimp. For stranded wire strip leads to approximately 3/4 of an inch. Twist the wire combination even and tight. Trim stripped pre-twisted area to 3/8 of an inch and insert into connector and crimp.
-
Page 3: Maintenance
Caution: Never place fingers in the tool nests. 4. Remove the crimped connector and inspect for proper crimp location and insulation closure. Molex offers a Crimp Inspection Handbook for closed barrel industrial product. See our website or contact your sales engineer. -
Page 4: Tool Calibration
30 days. Should such a defect occur, we would repair or exchange the tool free of charge. This repair or exchange will not be applicable to alter, misused or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals, applicators and tooling. UNCONTROLLED COPY... -
Page 5: Parts List
AT-2214 Head Crimp Tool PARTS LIST Item Order No Description Quantity 64005-3400 Crimp Tool Head Figure 5 64005-0120 Air Tool Head, Nose Mount 64001-3475 Locator Assembly 64001-3470 Tooling Kit Tooling Kit Only 64001-3401 Conductor Punch 64001-3402 Conductor Anvil #6-32 X 1/4”... - Page 6 AT-2214 Head Crimp Tool Parts List (Continued) Item Order No. Description Quantity 64005-0120 Air Tool Head, Nose Mount Figure 6 64000-0077 Repair Kit (Springs, Rods Pivots, Rings, and Washers) #4-40 by 3 /8”Long SHCS M4 by 12LG. Freedrive Pan Head Screw 3/16”...
-
Page 7: Certificate Of Calibration
Technician ______________ Date of Calibration ______________ Calibration should be done every 5,000 cycles or 3 months. Tools should be lubricated during this operation. Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-640053400 Release Date: 06-23-03 Page 7 of 7...
