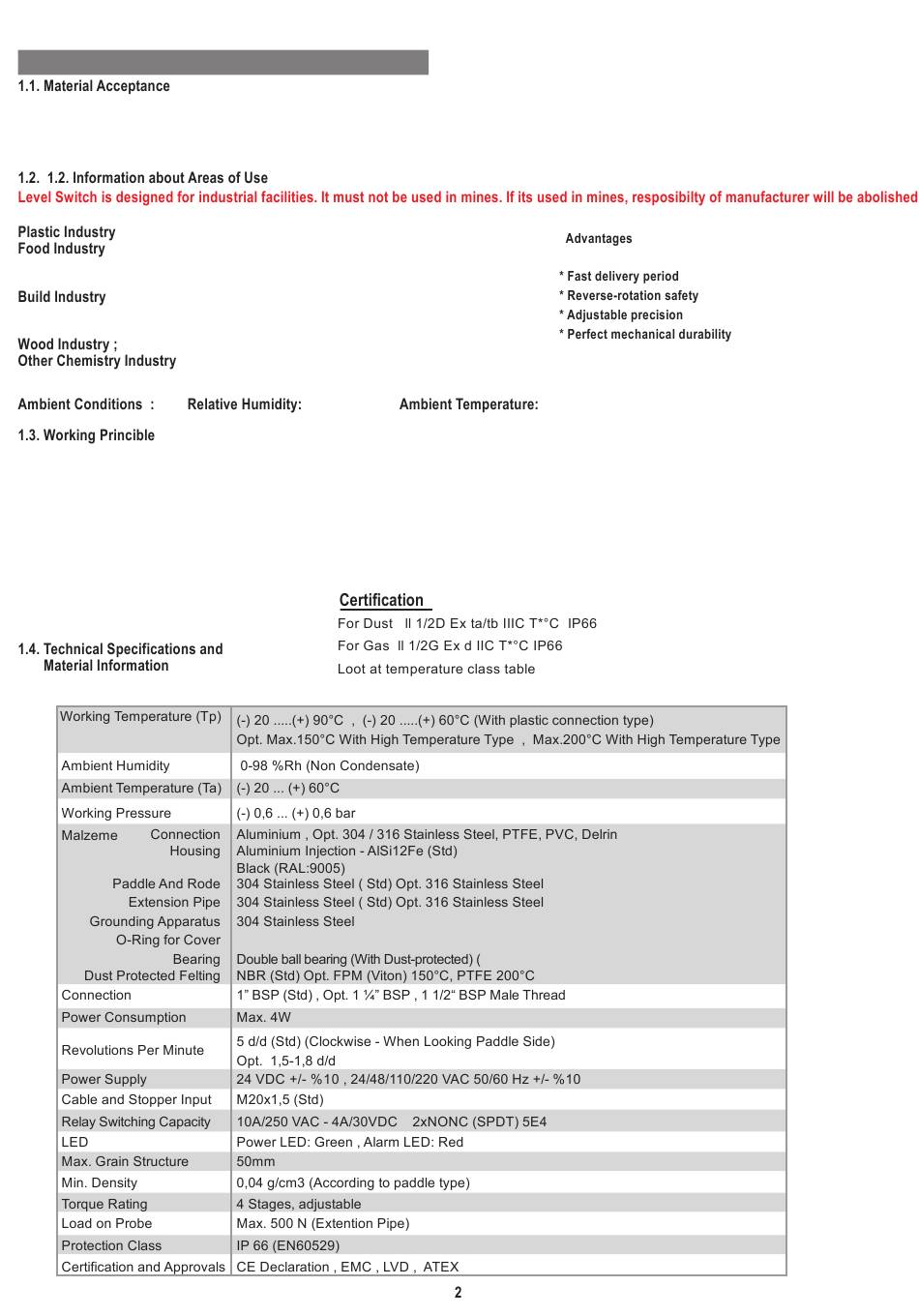

1. General Information :

Check that there is no damage on the packages during the transportation immediately after the material acceptance. If packages are
damaged, open the packages immediately and check whether products are affected or not, if there is any damage, send your
complaint report to the transporter company and its photocopy to the address of our company.
; PVC, PVDF, PP granular etc..
; Grain Dust, Ground Corn, Sugar-Granulated,Cacao,
Malt-Graoung Dry, Sunflower Corn, Whead, Peanuts-Shelled,
Clays- Kaoline, Talcum Powder, Ground-Paprika, Coffee-Roasted vb..
; Rocks-Limestone Crushed, Lime, Cement Powder,
Rubber Ground, Lime Hydrate Dust, Calsium Dust, Iron Chips,
Silica Sand, Moulding Sand, Styrofaam etc..
Wooden Fiberst, Saw Dust etc..
; Coal Lump, Ash-Coal Dry etc..
A palette selected according to the material is installed on the tip of the motorized level switch which can be installed on the tank wall. It revolves
idly with the revolution speed of the probe motor. Material to be detected reaches to the level of the palette and covers its circumference and
creates a counter-force according to the revolution force. Firstly, level information alarm contact is activated. Then, the other contact is
triggered and stops the motor. Adjustment of the spring in four different torque values according to specific weight of the material can be realized
by the user. When the material level at the end of the palette is decreased the created force is released and the motor starts to revolve, consequently,
changing the alarm position.
0-95 %RH
*
Elastomer Thermoplastic 120°C (Std) Opt. FPM (Viton) 150°C
60C (It is not used under -20 C)
120°C) Opt. 280°C
