1. General Information :

1.1. Material Acceptance
Check that there is no damage on the packages during the transportation immediately after the material acceptance. If packages are
damaged, open the packages immediately and check whether products are affected or not, if there is any damage, send your
complaint report to the transporter company and its photocopy to the address of our company.
1.2. Information about Areas of Use
It should be used in allowed using medium and application areas! It is not used in the corrosive mediums,
ambient with explosive and flammable material. Conformity with medium to be measured should be also taken into consideration.
Responsibility is not assumed in case of inappropriate use, modification and injure, and such cases are not covered by warranty.
Ambient Conditions: Relative Humidity: 5-95 %RH Ambient temperature: 70C (It is not used under -5 C)

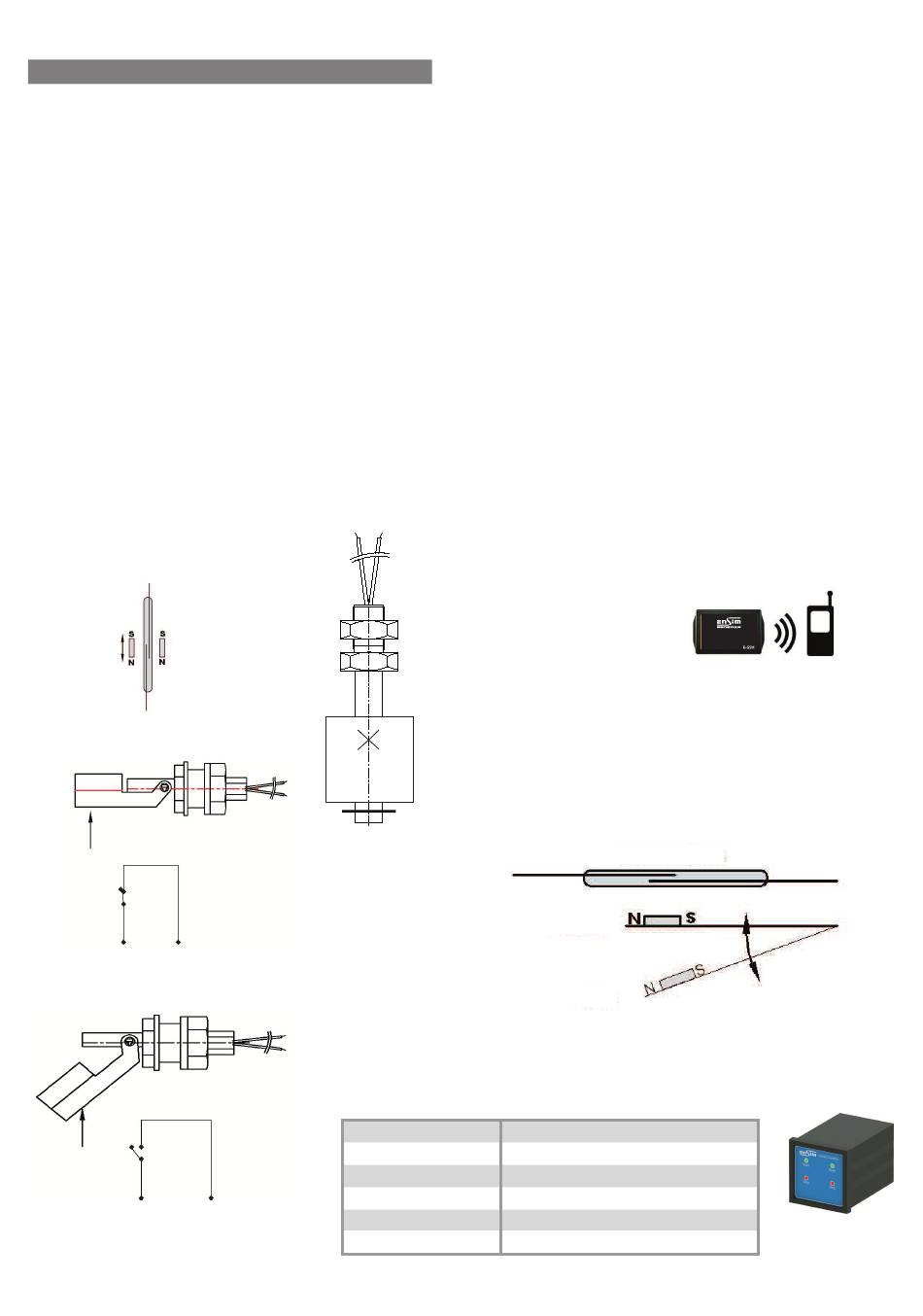

1.3. Operating Princible
ELP level switches are used for checkin level of tank. It is preferred by machine manufacturers, especially in terms of its ease ofg use and
economy. The ELP level switched can be mounted in litte places because of their mini design. The switches are made by stainless steel
material and so can be used in various liquids.
When magnetic field of magnet in the float is aligned withreed sensor in the tube , it opens or closes
the electric circuit.When float moves away , sensor reverts back ( upon demand , drawn contact may be made).
Level informationcan be assessed with a relay circuit.
REED RELAY
CLOSE
RING
MAGNET
OPEN
Advantages :
* Economic.
* Practical and easy installation.
* Fast delivery.
* Plastic material.
LEVEL CONTROL DEVICE
Power Supply
Output
2 pcs. 5 A / 250 VAC Relay (Start/Stop)
Working Temperature
Dimensions
Input
Contact Information , coming from ELP
Isolation
2
E-GSM Alarm Device - Double Entry
Battery or and supply
2 pcs. Lithium batteries, 12V adaptor (Incluced)
Excluding phone card.
..
REED RELAY
CLOSE
MAGNET
OPEN
SK-P2
220 VAC, 2.8 VA
(-) 20 °C / (+) 70 °C
72 mm x 72 mm
Input and output are isolated
SK-P2
72 mm x 72 mm
