Installation - Input Connection - StarTech.com VS310HD2HDMI Instruction Manual

9. Up/Down/Left/Right - Press the up/down buttons to move the highlight bar to the
10. OK (Enter) - Press to confirm selections
11. Reset - Press to reset the unit's firmware setting to the factory default values
12. Auto Adjust - Press to optimize the position of the picture (picture centering) on the
screen

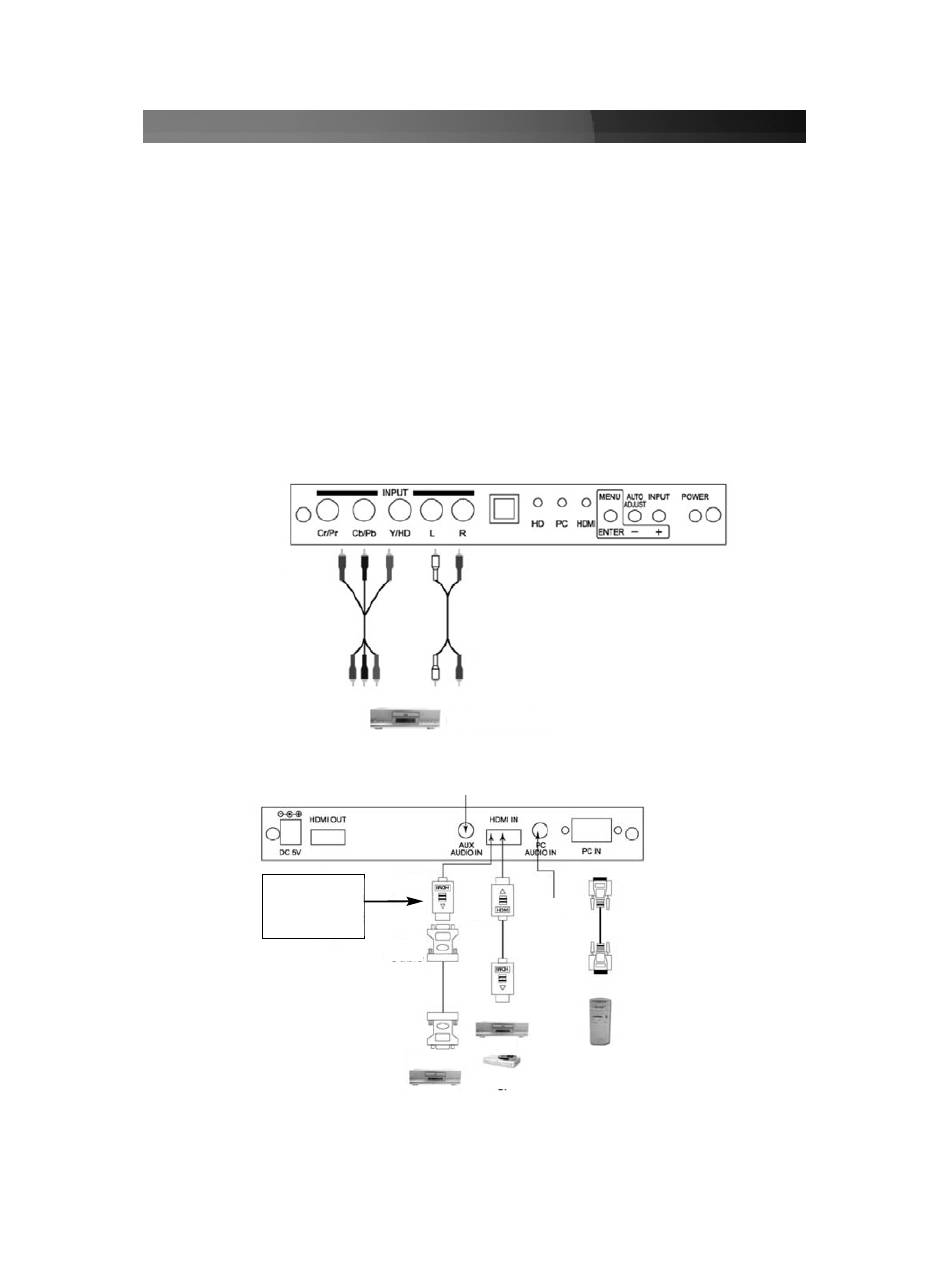

Installation - Input connection

Component IN
DVI to HDMI
connector
adapter
Instruction Manual
desired parameter during OSD operation. exit from a sub-menu
or main menu. Press the left/right buttons to increase/decrease
the value of a selected parameter.
Stereo IN
Audio
L R
Component OUT
DVD or Set top box
Audio in for
DVI source
HDMI
DVI
OR
DVI
Cable
HDMI Out
DVD
DVI Out
Set top box
DVD
4
PC Audio
PC IN
HDMI
Cable
PC
