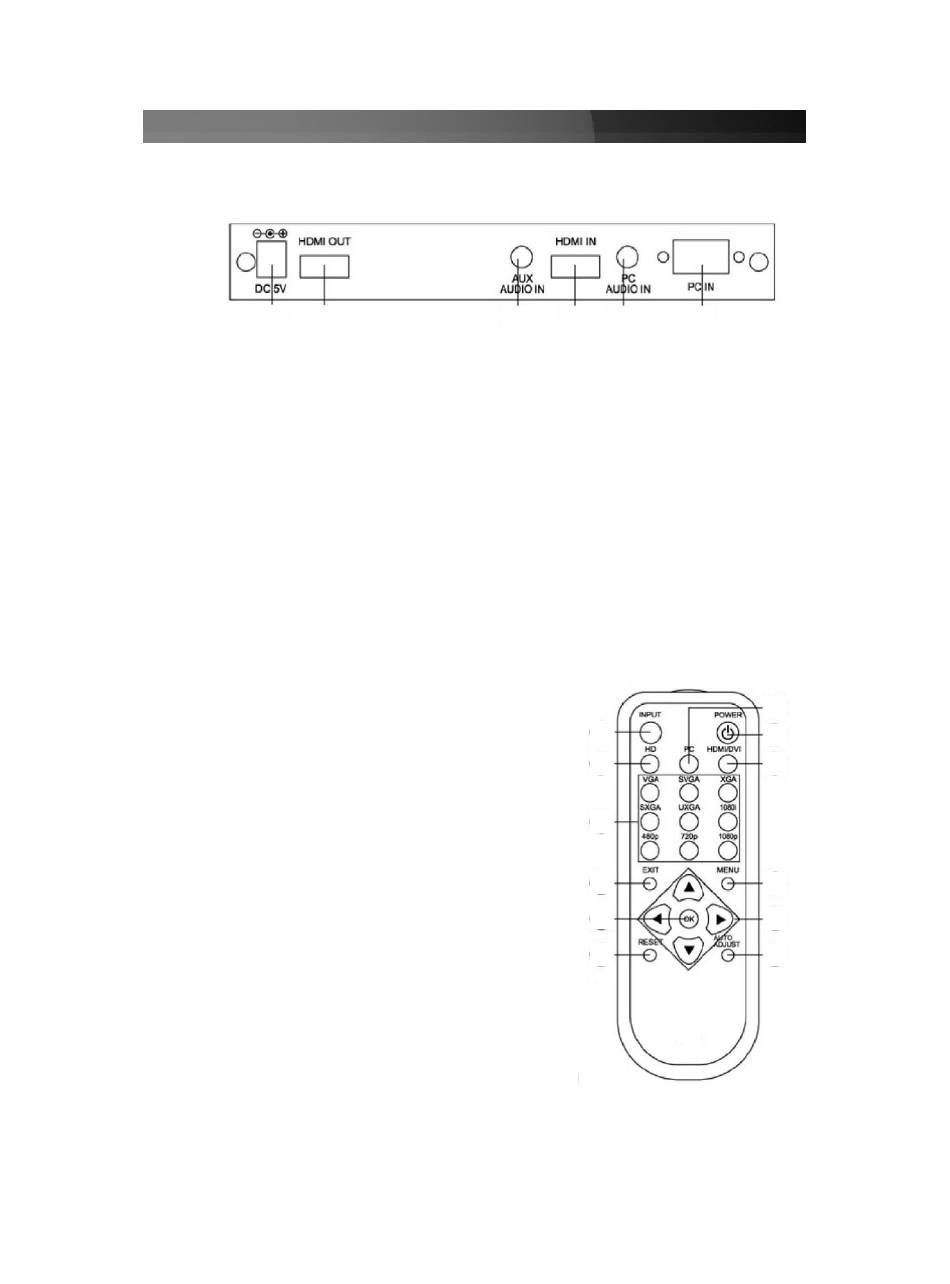

Rear Panel
6
5
1. PC IN - Connects VS310HD2HDMI to the VGA output of your PC. Acceptable PC
resolutions range from VGA - WUXGA
2. PC Audio IN - Stereo audio input from video source. Requires 3.5mm audio cable.
3. HDMI (DVI) IN: Connects VS310HD2HDMI to your HDMI source equipment
4. AUX (DVI) Audio IN: This audio input should be used only when a DVI source is
connected to the HDMI input. This device will convert DVI and AUX audio
input to HDMI Output.
5. HDMI OUT - Connect this output to the HDMI input on your HD display.
6. Power jack - For connection to the 5V 2.6A DC power adapter (included).

Remote Control and functions

1. Power - Press this button once to power on the
scaler/ converter. Press a second time to
power down
2. Input - Press repeatedly, to toggle through input
sources
3. HD Input - Press to select component input.
4. PC Input - Press this button to select PC input
5. HDMI/DVI Input - Press to select DVI or HDMI input
6. Output resolution - Select from available output
resolutions
7. Menu - Press to bring up the OSD main menu page
8. Exit - Press to exit from a sub-menu or main menu
