- Page 1 VGA2TV2WAY2 Instruction Manual Video Converter with Scaler 2-Way High Resolution HDTV/ VGA Video Converter with Scaler...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Side 1 View ..................2 Side 2 View ..................2 Installation ............... 3 Hardware Installation ..............3 Driver Installation .................3 How to Use ..............4 On Screen Display ...............4 OSD Menu ...................5 Support Resolutions ............ -
Page 4: Introduction
Introduction The StarTech.com 2-Way VGA to Component (HDTV) or Component (HDTV) to VGA video Converter / Scaler combines the features of a video scaler and a format converter, to provide a cost-effective way to display VGA (PC) or component YPbPr (HDTV) feeds. -
Page 5: Side 1 View

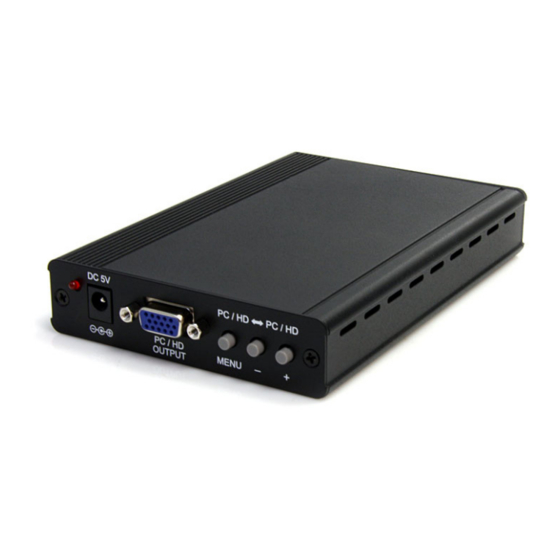

Side 1 View Video Pass- through output VGA or Component* connector input connector *requires use of VGA to component breakout cable Side 2 View VGA or Component* output connector DC Power Configuration connector buttons *requires use of VGA to component breakout cable... -
Page 6: Installation
Installation WARNING: The default output signal from the video converter/ scaler is 1024 x 768 (XGA) at 60 Hz. Not all display devices have the capability to display this resolution, so it is advisable to consult the documentation for your display before attempting installation. If your display does not support this resolution, you may not be able to access the menu features through the on-screen display (OSD). -
Page 7: How To Use
How to Use On-Screen Display The video converter/scaler has a built in On-Screen Display (OSD) that can be accessed via the push buttons on the unit itself. The OSD allows for manual configuration of the video converter/scaler. Press the “Menu” button to activate the OSD and the + and - buttons to navigate the menu. -
Page 8: Osd Menu
OSD Menu 1st Level Menu 2nd Level Menu Adjustment Contrast 0~100 Brightness 0~100 0~100 Saturation 0~100 Fine Tune Sharpness 0~100 Exit Return to 1st Level Menu 0~100 Green 0~100 Color Blue 0~100 Exit Return to 1st Level Menu Full, Overscan, Underscan, Size Letterbox, Panscan Native, VGA, SVGA, XGA,... -
Page 9: Support Resolutions
Support Resolutions Input/Output Resolution PC/HD Input PC/HD Output 480i/576i NTSC/PAL NTSC/PAL 480p/576p NTSC/PAL NTSC/PAL 720p 50/60Hz 50/60Hz 1080i 25/30Hz 25/30Hz 1080p 50/60Hz 50/60Hz VGA (640x480) 60/72/75/85Hz 60Hz SVGA (800x600) 56/60/72/75/85Hz 60Hz XGA (1024x768) 60/70/75/85Hz 60Hz SXGA (1280x1024) 60/75/85 60Hz UXGA (1600x1200) 60Hz 60Hz WXGA (1280x800) -
Page 10: Specifications
Specifications VGA (RGBHV), Compatible Video Formats Component (YPbPr) 3 x DE-15 VGA female Connectors 1 x DC Power LEDs 1 x Power Maximum Video Resolution 1920x1200 / 1080p On Screen Display Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature 0°C to 60°C (32°F to 140°F) Humidity 0~60% RH... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 12 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
