Appendix E: Serial Number Tag Description provides current rating code used on
serial number tag.
Appendix F: References lists the various resources available that deal with
laboratory fume hoods.
Appendix G: VAV Open Area Guidelines to properly assess fume hood effective
area whenever variable air volume (VAV) mechanical systems are installed.

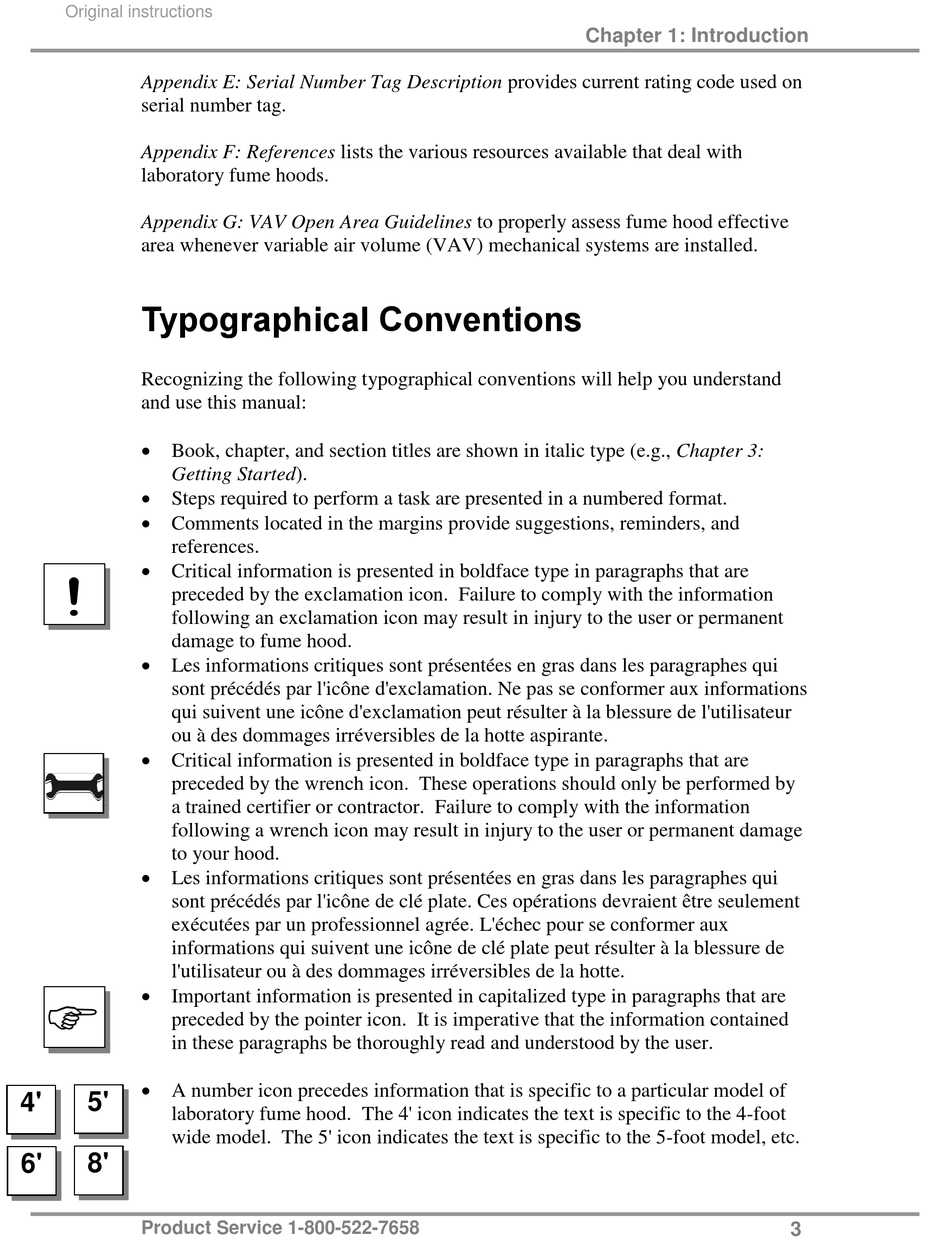

Typographical Conventions

Recognizing the following typographical conventions will help you understand
and use this manual:
 Book, chapter, and section titles are shown in italic type (e.g., Chapter 3:
Getting Started).
 Steps required to perform a task are presented in a numbered format.
 Comments located in the margins provide suggestions, reminders, and
references.
 Critical information is presented in boldface type in paragraphs that are
!
preceded by the exclamation icon. Failure to comply with the information
following an exclamation icon may result in injury to the user or permanent
damage to fume hood.
 Les informations critiques sont présentées en gras dans les paragraphes qui
sont précédés par l'icône d'exclamation. Ne pas se conformer aux informations
qui suivent une icône d'exclamation peut résulter à la blessure de l'utilisateur
ou à des dommages irréversibles de la hotte aspirante.
 Critical information is presented in boldface type in paragraphs that are
preceded by the wrench icon. These operations should only be performed by
a trained certifier or contractor. Failure to comply with the information
following a wrench icon may result in injury to the user or permanent damage
to your hood.
 Les informations critiques sont présentées en gras dans les paragraphes qui
sont précédés par l'icône de clé plate. Ces opérations devraient être seulement
exécutées par un professionnel agrée. L'échec pour se conformer aux
informations qui suivent une icône de clé plate peut résulter à la blessure de
l'utilisateur ou à des dommages irréversibles de la hotte.
 Important information is presented in capitalized type in paragraphs that are

preceded by the pointer icon. It is imperative that the information contained
in these paragraphs be thoroughly read and understood by the user.
 A number icon precedes information that is specific to a particular model of
4' 5'
laboratory fume hood. The 4' icon indicates the text is specific to the 4-foot
wide model. The 5' icon indicates the text is specific to the 5-foot model, etc.
8'
6'
