are directly connected to the memory interface of the PS BANK504. The
highest operating speed of the DDR4 SDRAM on the PL side can reach
1066MHz (data rate 2133Mbps), and four DDR4 storage systems are directly
connected to the memory interface of PS's BANK504. The specific
configuration of DDR4 SDRAM is shown in Table 2-3-1 below:
Bit Number
U12,U14,U15,U16
The hardware design of DDR4 requires strict consideration of signal
integrity. We have fully considered the matching resistor/terminal resistance,
trace impedance control, and trace length control in circuit design and PCB
design to ensure high-speed and stable operation of DDR4.

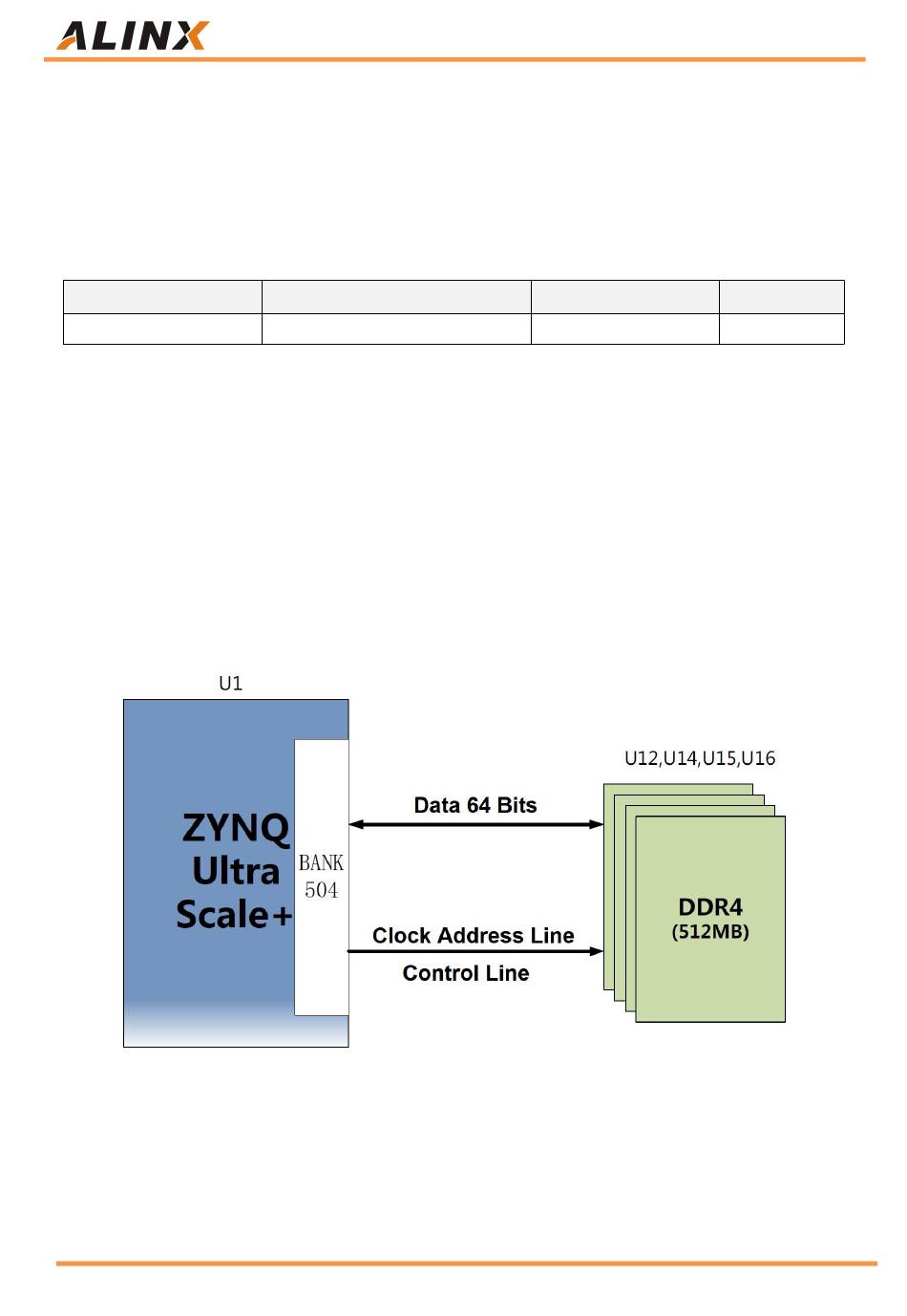

The hardware connection of DDR4 SDRAM on the PS Side is shown in
Figure 2-3-1:
Figure 2-3-1: DDR4 DRAM schematic diagram on the PS Side
www.alinx.com
Chip Model
CXDQ2BFAM-CG
Table 2-3-1: DDR4 SDRAM Configuration
ACU2CG User Manual
Capacity Factory
256M x 16bit PANGO
