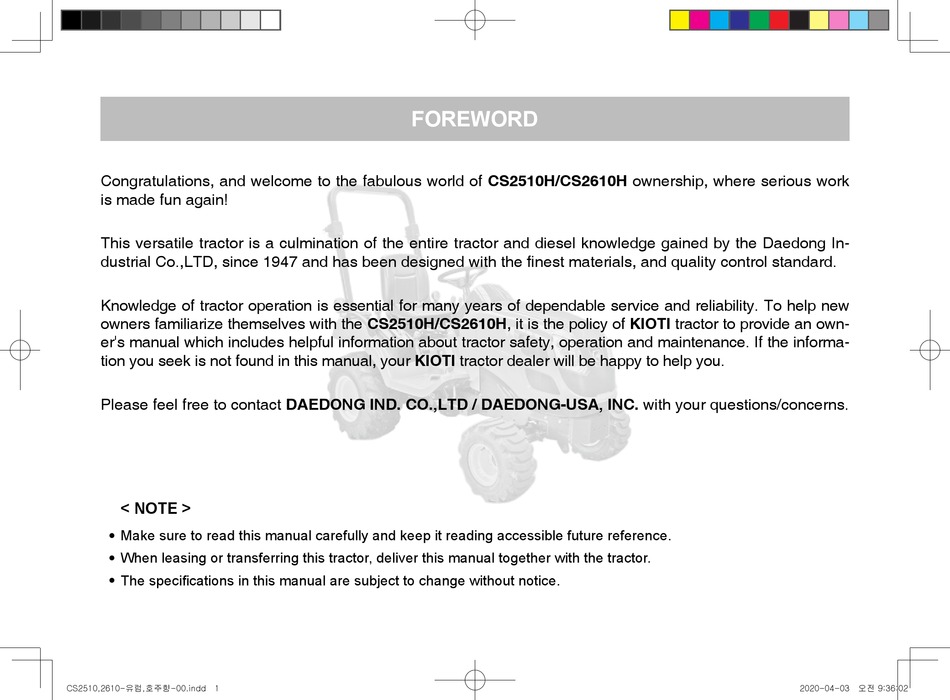

Congratulations, and welcome to the fabulous world of CS2510H/CS2610H ownership, where serious work
is made fun again!
This versatile tractor is a culmination of the entire tractor and diesel knowledge gained by the Daedong In-
dustrial Co.,LTD, since 1947 and has been designed with the finest materials, and quality control standard.
Knowledge of tractor operation is essential for many years of dependable service and reliability. To help new
owners familiarize themselves with the CS2510H/CS2610H, it is the policy of KIOTI tractor to provide an own-
er's manual which includes helpful information about tractor safety, operation and maintenance. If the informa-
tion you seek is not found in this manual, your KIOTI tractor dealer will be happy to help you.
Please feel free to contact DAEDONG IND. CO.,LTD / DAEDONG-USA, INC. with your questions/concerns.
< NOTe >
Make sure to read this manual carefully and keep it reading accessible future reference.
When leasing or transferring this tractor, deliver this manual together with the tractor.
The specifications in this manual are subject to change without notice.
