PRODUCT DESCRIPTION

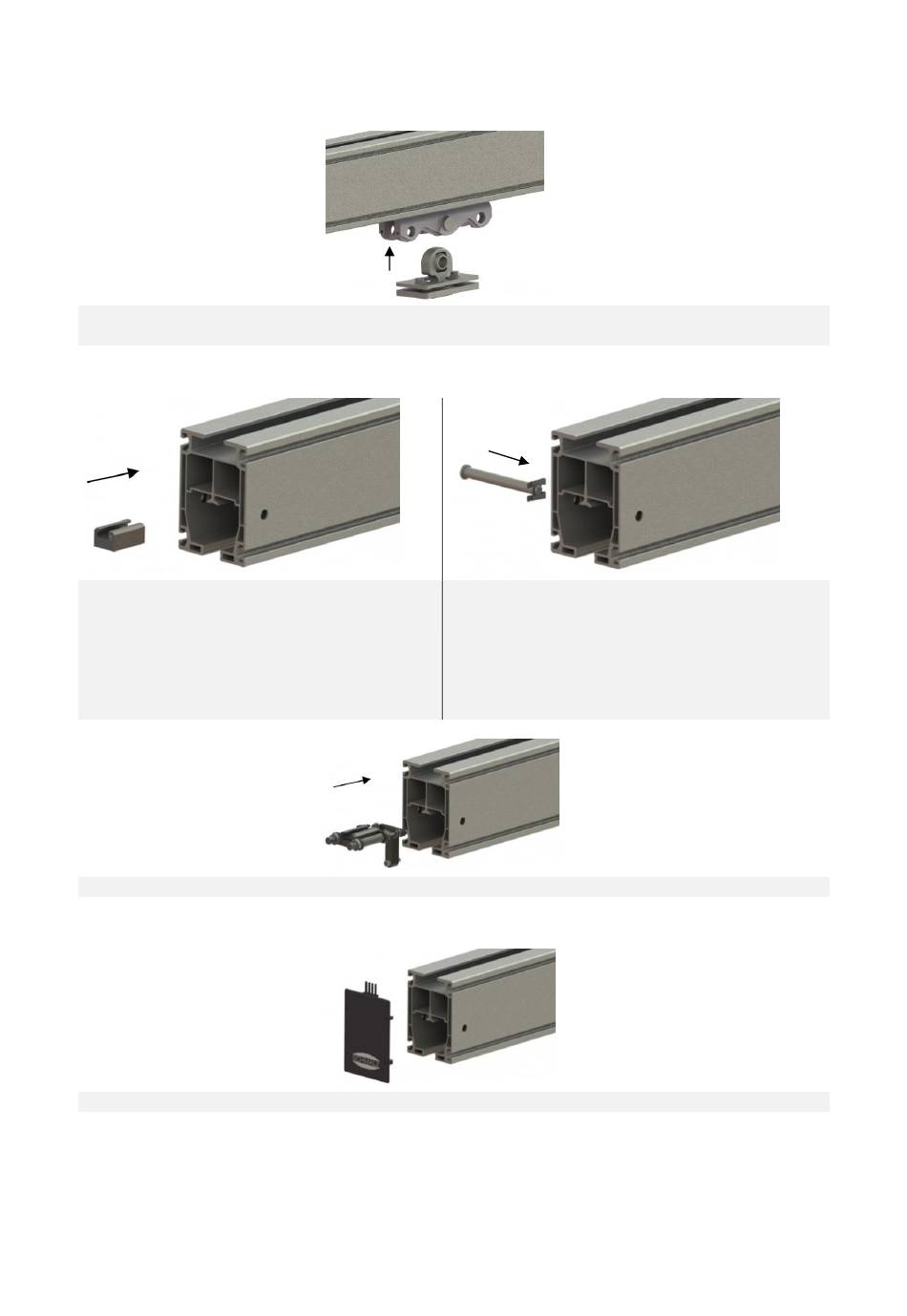

2.7.7 Telescopic jib suspension

Crane girder SUS-B suspension
Component for connecting the transport trolley (ball) with the telescopic jib

2.7.8 End stops

End stop STO-VAR
Variable limit stop, attached in the dovetail
inside main body, serves all transport trolleys
as a variably adjustable limit stop. Line/hose
trolleys can travel through under the travel
limiter, the terminal clamps here serve as a limit
stop.
Variable spring-mounted end stop, STO-VAR-FED and STO-VAR can be used with telescopic jigs

2.7.9 End plate

Sealing plate VRS-PL, aluminum jib seal which prevents dirt from entering from the side.
26 | EN
Fig.1
Fig.1
Fixed end stop STO bolt on both sides of the crane
runway and crane girder at the end, serves as a
secured end stop for carrying trolleys.
Fig.3
Fig.1
Fig.2
30.30.01.00225/01
