PRODUCT DESCRIPTION

2.7 Description of component parts

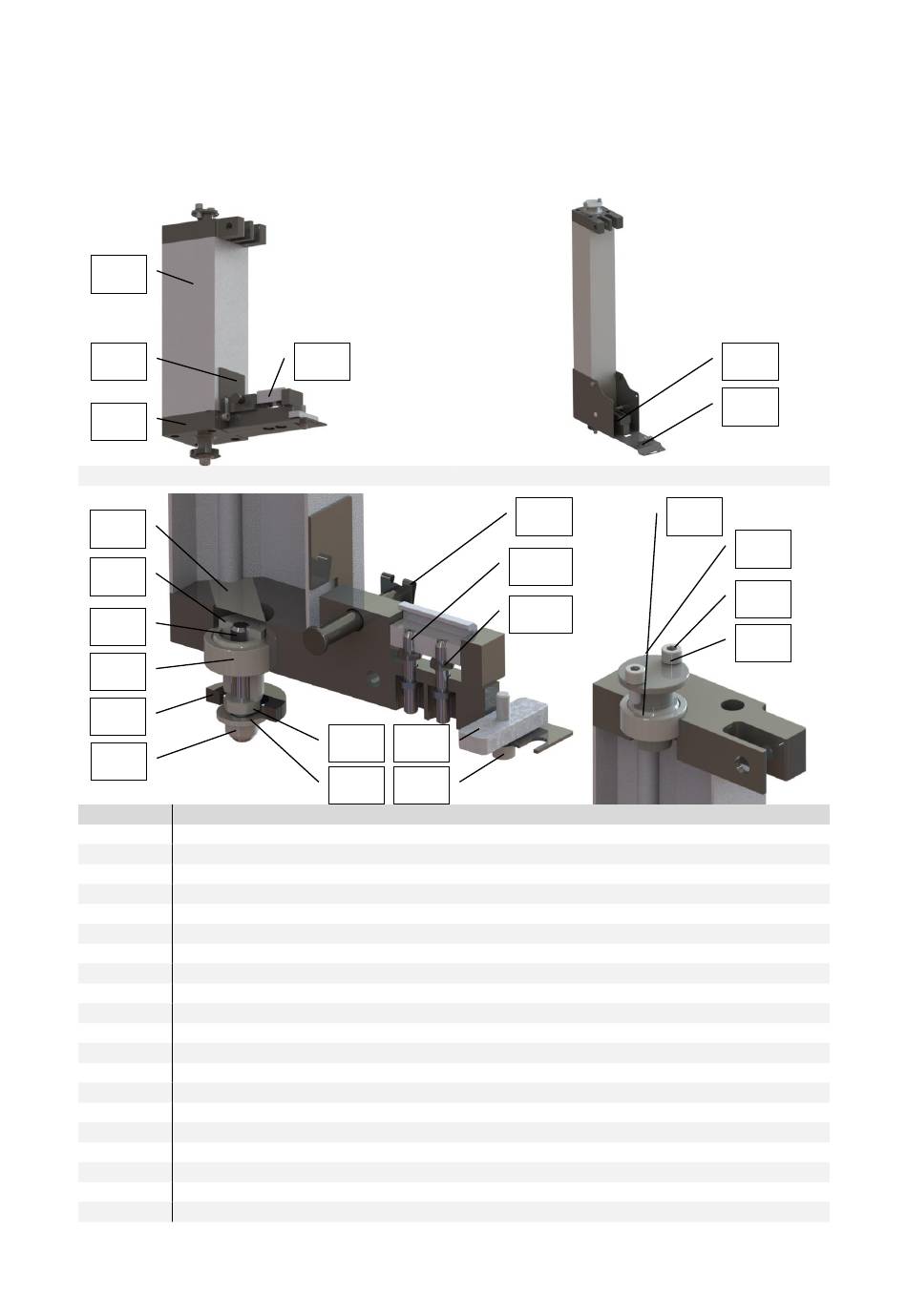

2.7.1 Pivot bearing

3.2
3.5
3.6
Pivot bearing for SRA 100, SRA 105
3.7
3.4
32
3.3
27
30
Item Name
3.1 Aluminum section
3.2 Upper bearing plate
3.3 Bearing
3.4 Lower bearing bolt
3.5 Angle plate
3.6 Lower bearing plate, welded
3.7 Film
3.8 MB screw x30
3.9 Sliding block
3.10 Set screw M8x50
3.11 Nut M8 flat shape
14 End stop
15 Variable limit stop
24 Bolt for upper pivot bearing
25 Machine screw M8x16
27 Disc with slot
29 Flat hexagonal nut M13
30 Self-locking M12 nut
32 Set screw M12x70
33 Conical spring M12
22 | EN
15
Pivot bearing for SRA 140, SRA 180
29 3.9
33 3.8
Fig.2
14 3.3
3.10
3.11
3.6
3.5
24
25
23
30.30.01.00225/01
