INSTALLATION


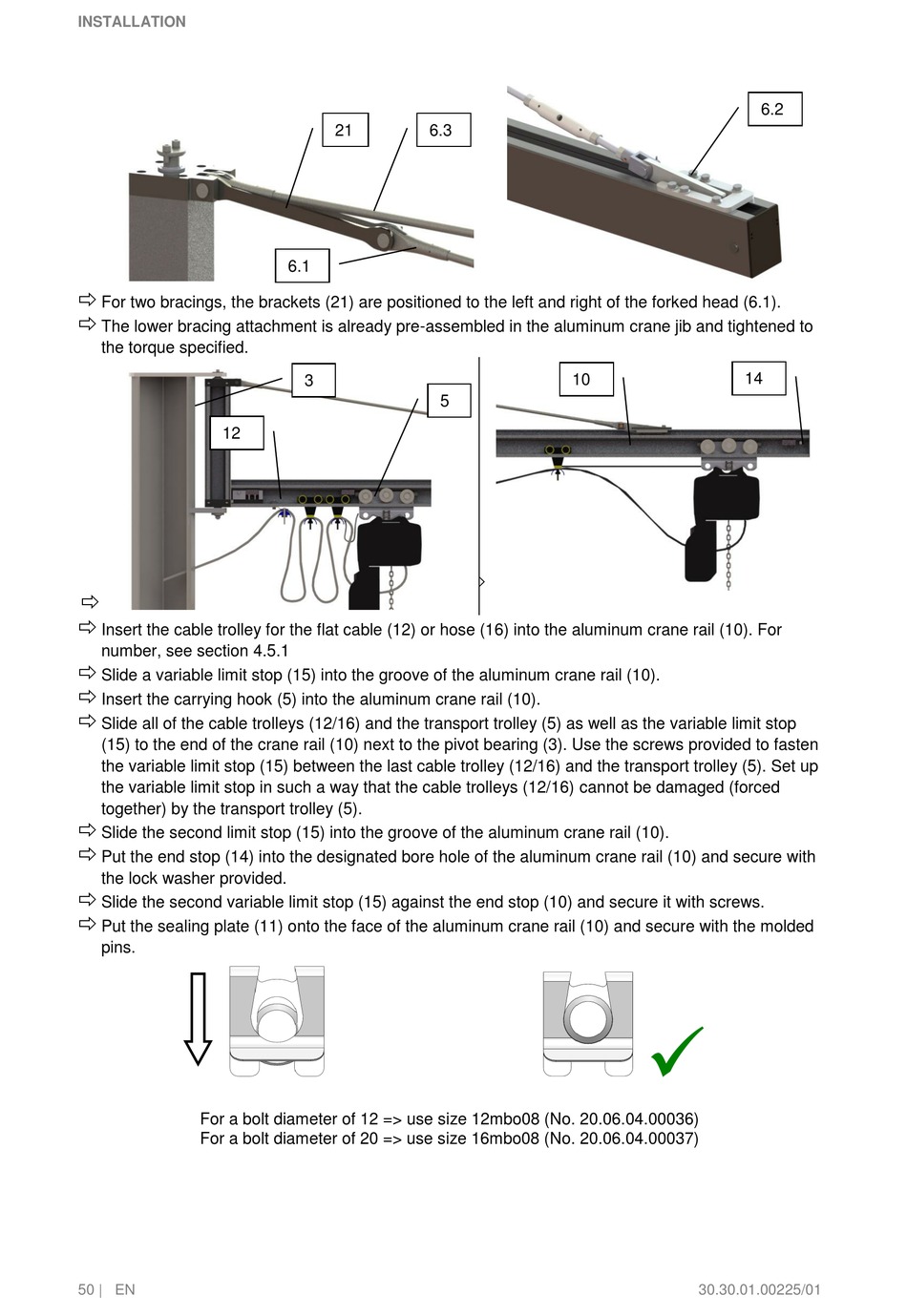

For two bracings, the brackets (21) are positioned to the left and right of the forked head (6.1).

The lower bracing attachment is already pre-assembled in the aluminum crane jib and tightened to
the torque specified.
12


Insert the cable trolley for the flat cable (12) or hose (16) into the aluminum crane rail (10). For
number, see section 4.5.1

Slide a variable limit stop (15) into the groove of the aluminum crane rail (10).

Insert the carrying hook (5) into the aluminum crane rail (10).

Slide all of the cable trolleys (12/16) and the transport trolley (5) as well as the variable limit stop
(15) to the end of the crane rail (10) next to the pivot bearing (3). Use the screws provided to fasten
the variable limit stop (15) between the last cable trolley (12/16) and the transport trolley (5). Set up
the variable limit stop in such a way that the cable trolleys (12/16) cannot be damaged (forced
together) by the transport trolley (5).

Slide the second limit stop (15) into the groove of the aluminum crane rail (10).

Put the end stop (14) into the designated bore hole of the aluminum crane rail (10) and secure with
the lock washer provided.

Slide the second variable limit stop (15) against the end stop (10) and secure it with screws.

Put the sealing plate (11) onto the face of the aluminum crane rail (10) and secure with the molded
pins.
For a bolt diameter of 12 => use size 12mbo08 (No. 20.06.04.00036)
For a bolt diameter of 20 => use size 16mbo08 (No. 20.06.04.00037)
