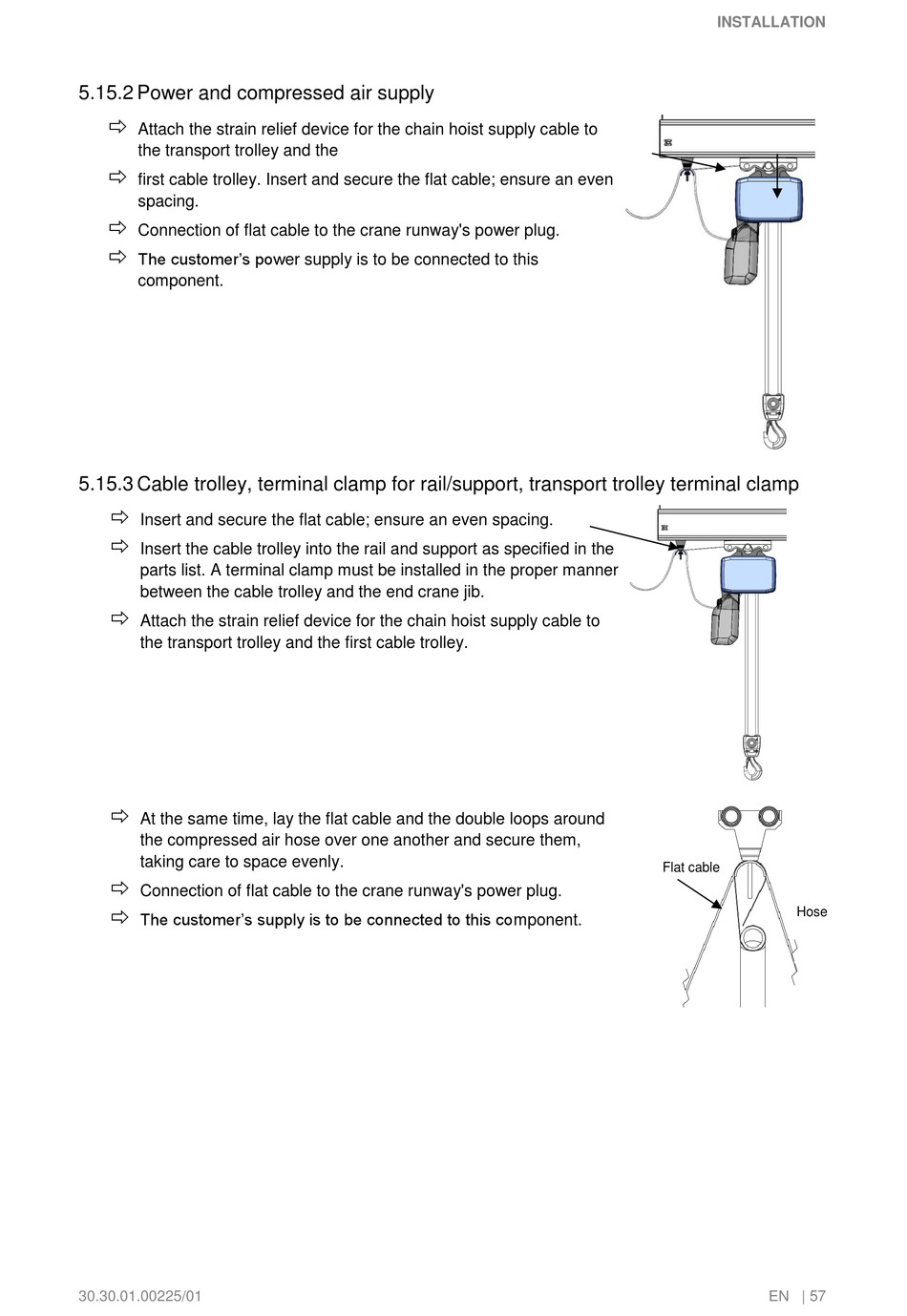

5.15.2 Power and compressed air supply
Attach the strain relief device for the chain hoist supply cable to
the transport trolley and the
first cable trolley. Insert and secure the flat cable; ensure an even
spacing.
Connection of flat cable to the crane runway's power plug.
The customer's power supply is to be connected to this
component.
5.15.3 Cable trolley, terminal clamp for rail/support, transport trolley terminal clamp
Insert and secure the flat cable; ensure an even spacing.
Insert the cable trolley into the rail and support as specified in the
parts list. A terminal clamp must be installed in the proper manner
between the cable trolley and the end crane jib.
Attach the strain relief device for the chain hoist supply cable to
the transport trolley and the first cable trolley.
At the same time, lay the flat cable and the double loops around
the compressed air hose over one another and secure them,
taking care to space evenly.
Connection of flat cable to the crane runway's power plug.
The customer's supply is to be connected to this component.
30.30.01.00225/01
INSTALLATION
Flat cable
Hose
