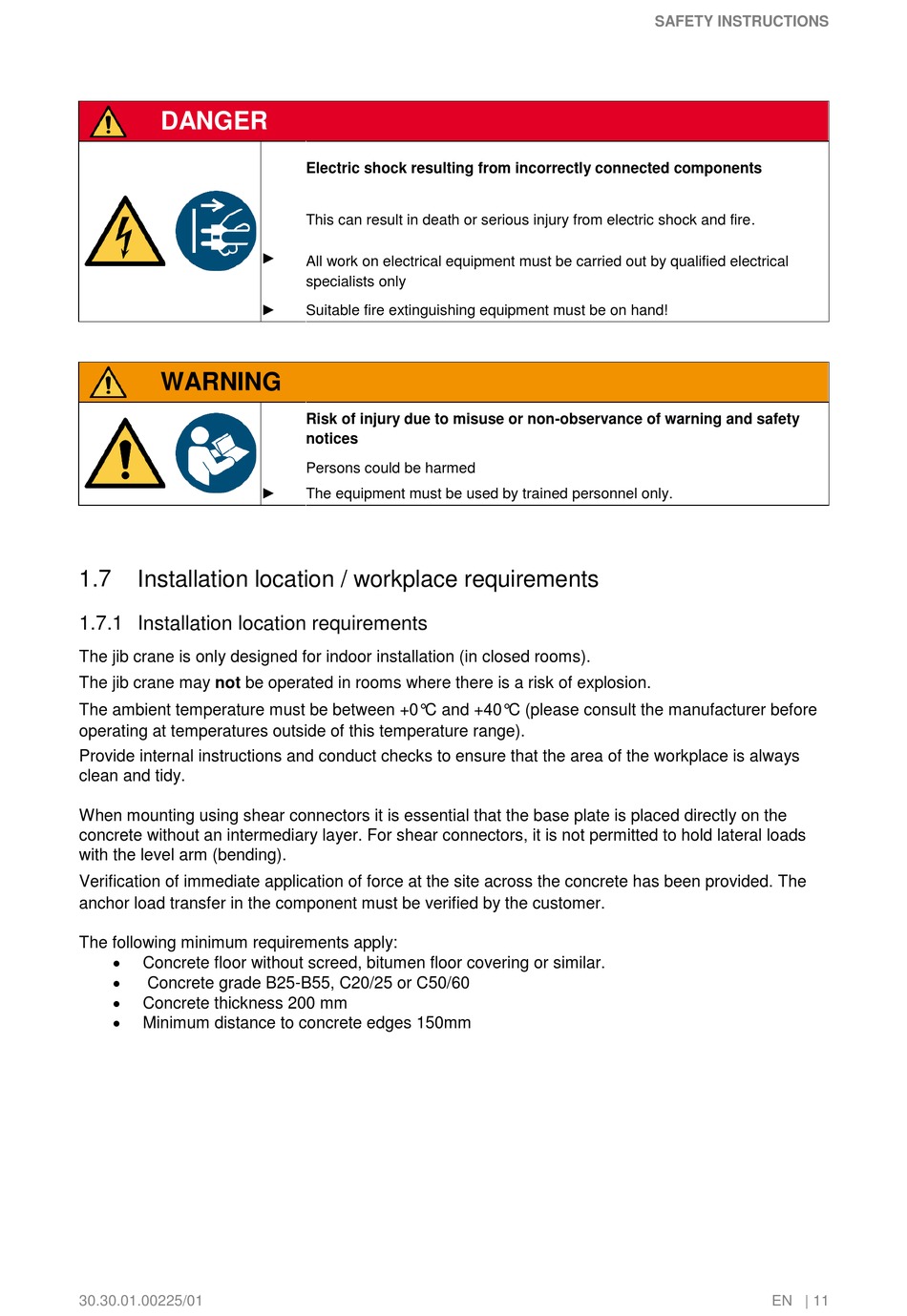

Installation Location / Workplace Requirements; Installation Location Requirements - probst ASSK 150-4 Operating Instructions Manual

DANGER
WARNING
1.7

Installation location / workplace requirements

1.7.1 Installation location requirements

The jib crane is only designed for indoor installation (in closed rooms).
The jib crane may not be operated in rooms where there is a risk of explosion.
The ambient temperature must be between +0°C and +40°C (please consult the manufacturer before
operating at temperatures outside of this temperature range).
Provide internal instructions and conduct checks to ensure that the area of the workplace is always
clean and tidy.
When mounting using shear connectors it is essential that the base plate is placed directly on the
concrete without an intermediary layer. For shear connectors, it is not permitted to hold lateral loads
with the level arm (bending).
Verification of immediate application of force at the site across the concrete has been provided. The
anchor load transfer in the component must be verified by the customer.
The following minimum requirements apply:

Concrete floor without screed, bitumen floor covering or similar.

Concrete grade B25-B55, C20/25 or C50/60

Concrete thickness 200 mm

Minimum distance to concrete edges 150mm
30.30.01.00225/01
Electric shock resulting from incorrectly connected components
This can result in death or serious injury from electric shock and fire.
►
All work on electrical equipment must be carried out by qualified electrical
specialists only
►
Suitable fire extinguishing equipment must be on hand!
Risk of injury due to misuse or non-observance of warning and safety
notices
Persons could be harmed
►
The equipment must be used by trained personnel only.
SAFETY INSTRUCTIONS
EN | 11
