Workstation Exit

Remove Cap from storage brackets, and ensure the handle is oriented in a vertical position on the
Cap. The Handle is designed with "indexing" detent features to help locate the Handle relative to
the Cap.
Drawing the handle into the Glove Port, replace the cap, using the location posts and graphic to
orient the Cap correctly on the Glove Port.
Note: Care should be taken to ensure that the Ezee-Sleeve material does not become caught
between the Cap and the Glove Port seal.

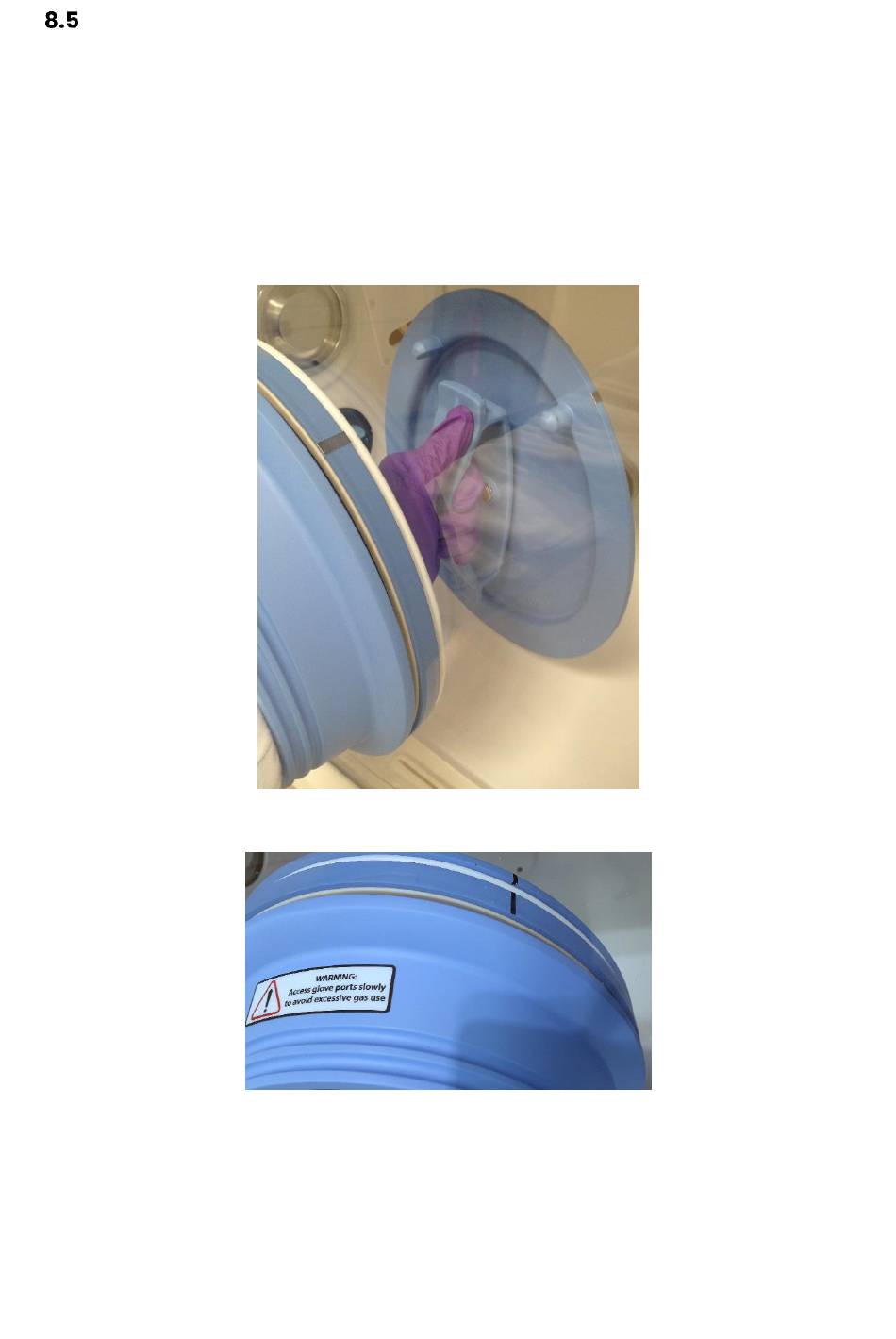

Figure 23: Glove port cap
Figure 24: Glove Port Locator
Rotating the Handle by 90 degrees to the horizontal position will now lock the Cap to the Glove
Port, allowing withdrawal of the users arm from the Ezee-Sleeve.
