Workstation overview

Workstation layout

The Bugbox Ax workstation consists of 2 main areas; the workstation chamber and the interlock
chamber. The workstation chamber is the main working area of the workstation. Access to the
workstation chamber is provided by the glove ports and the interlock. The interlock consists of the
interlock chamber, with an inner and an outer door. The Bugbox Ax workstation is controlled via
the control panel.

Component layout

Please familiarise yourself with the layout of your Bugbox Ax workstation.

Front view

Figure 3 shows the front view of the Bugbox Ax workstation;

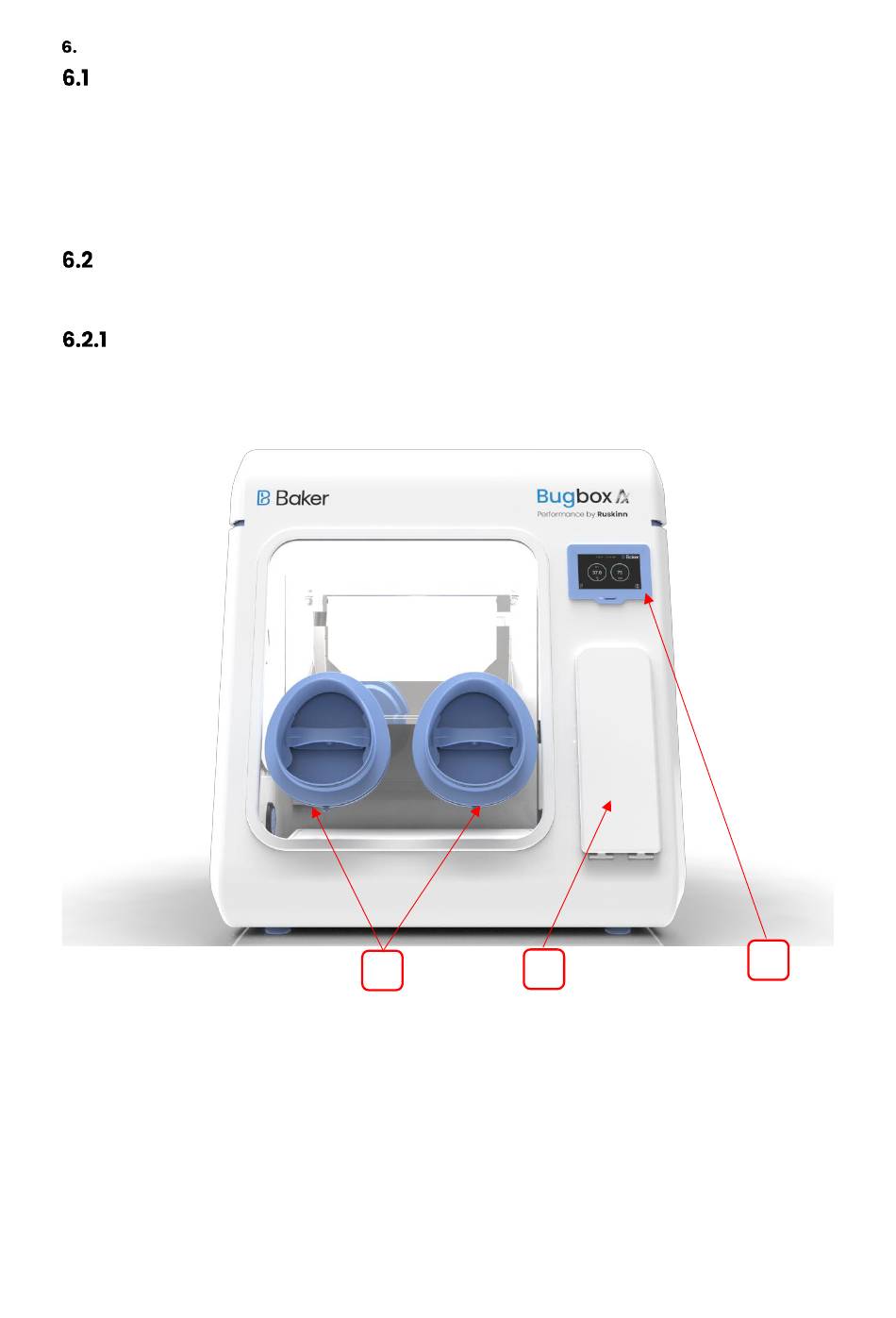

Figure 3: Bugbox Ax workstation front view
1
1. Glove ports (shown without Ezee Sleeves).
2. Interlock outer door.
3. Control panel.
2
3
