Control system layout
Please familiarise yourself with the control system layout of your Bugbox Ax workstation.
Control panel
Figure 7 shows the control panel of the Bugbox Ax workstation;
1
2
3
4
5
1.
Temperature Set Point
2.
Temperature Reading
3.
ANO
Low Alarm Icon
2
4. N
Low Alarm Icon
2
5.
Trend Log Button
6.
Time / Date / Settings Button
7.
Humidity Set Point
8.
Humidity Reading
9.
Interlock Purge Button
10. Humidity Decrease Button
11. Humidity Increase Button
12. Gas Control status- Green =Active. Red =Deactivated

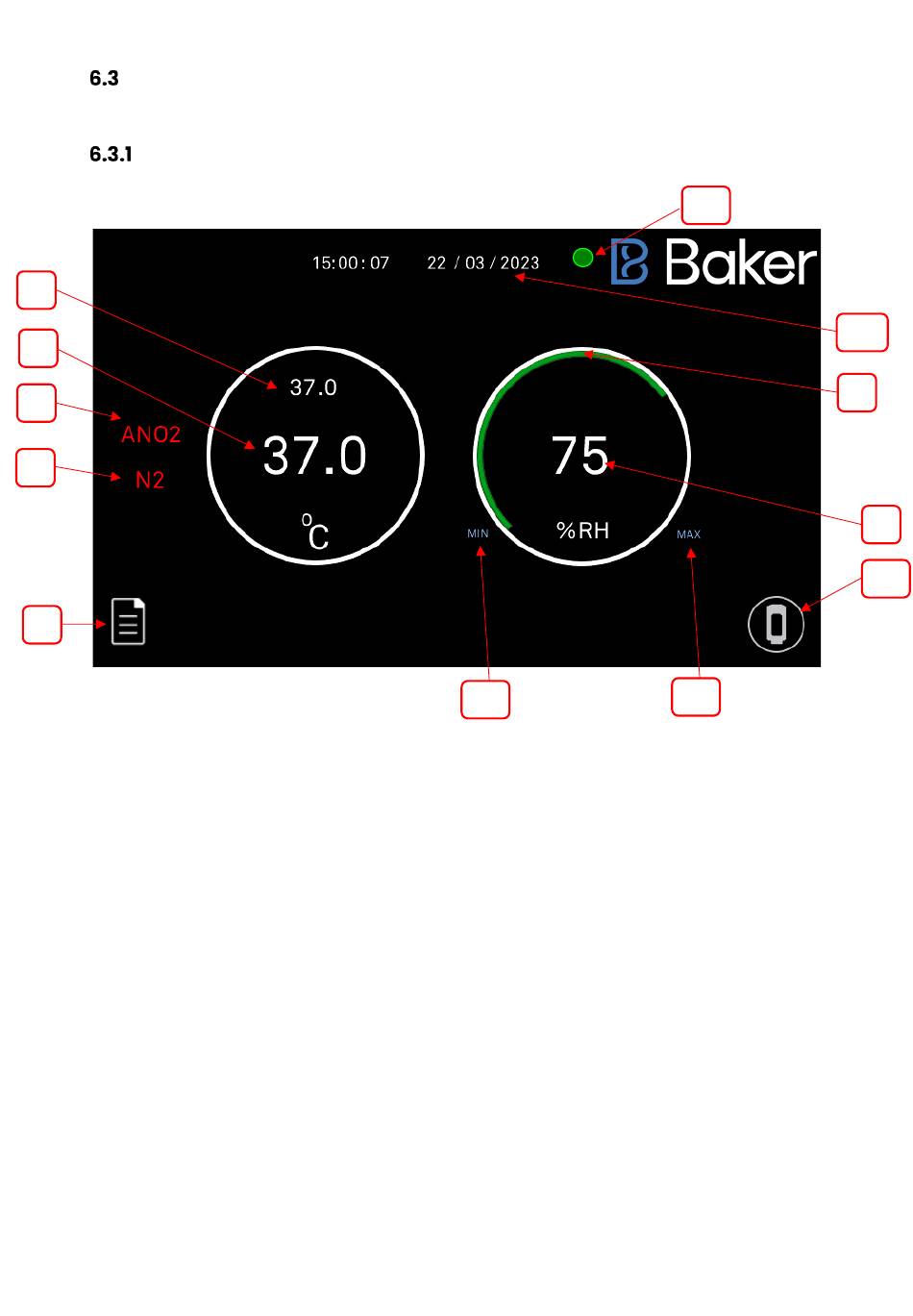

Figure 7: Bugbox Ax workstation control panel
10
12
6
7
11
Page 18 of 55
8
9
