EWM Taurus 301 Synergic Operating Instructions Manual page 19

Item Symbol Description
1
2
3
4
5
6
7
8
9
10
11
12
099-005157-EW501
09.06.2011

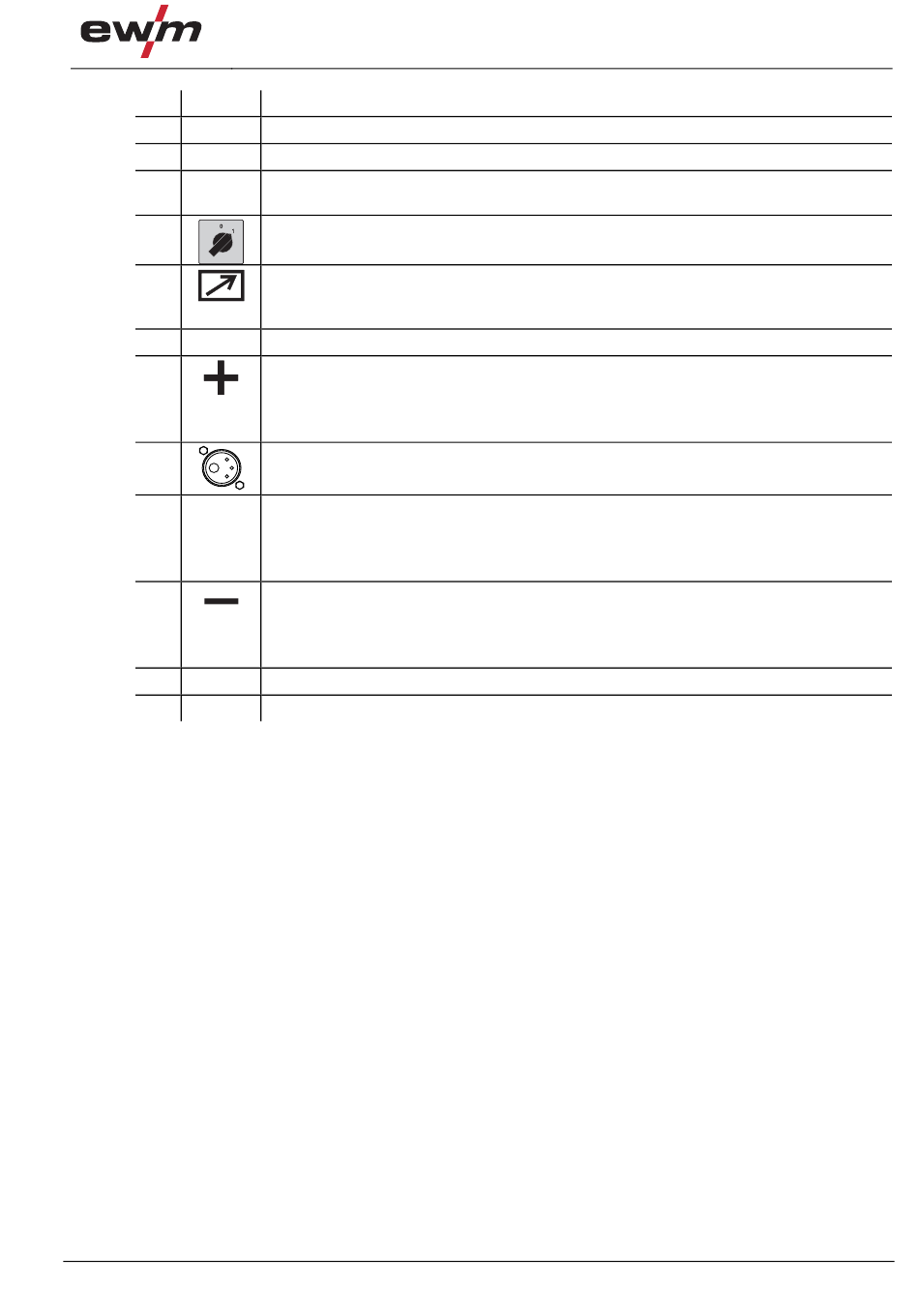

Machine description – quick overview
0
Lifting lug
Carrying handle
Machine control
See Machine control – operating elements chapter
Main switch, machine on/off
19-pole connection socket (analogue)
For connecting analogue accessory components (remote control, welding torch control
lead, etc.)
Cooling air inlet
Connection socket, "+" welding current
• MIG/MAG cored wire welding:
• TIG welding:
• MMA welding:
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
Welding current cable, polarity selection
Welding current to the central connector/torch, enables polarity selection.
• MIG/MAG: Connection socket for "+" welding current
• Self-shielding cored wire/TIG: Connection socket for "-" welding current
"-" welding current connection socket
• MIG/MAG welding:
• TIG welding:
• MMA welding:
Wheels, guide castors
Wheels, fixed castors
Workpiece connection
Workpiece connection
Workpiece connection
Workpiece connection
Welding current connection for welding torch
electrode holder connection
