Machine description – quick overview

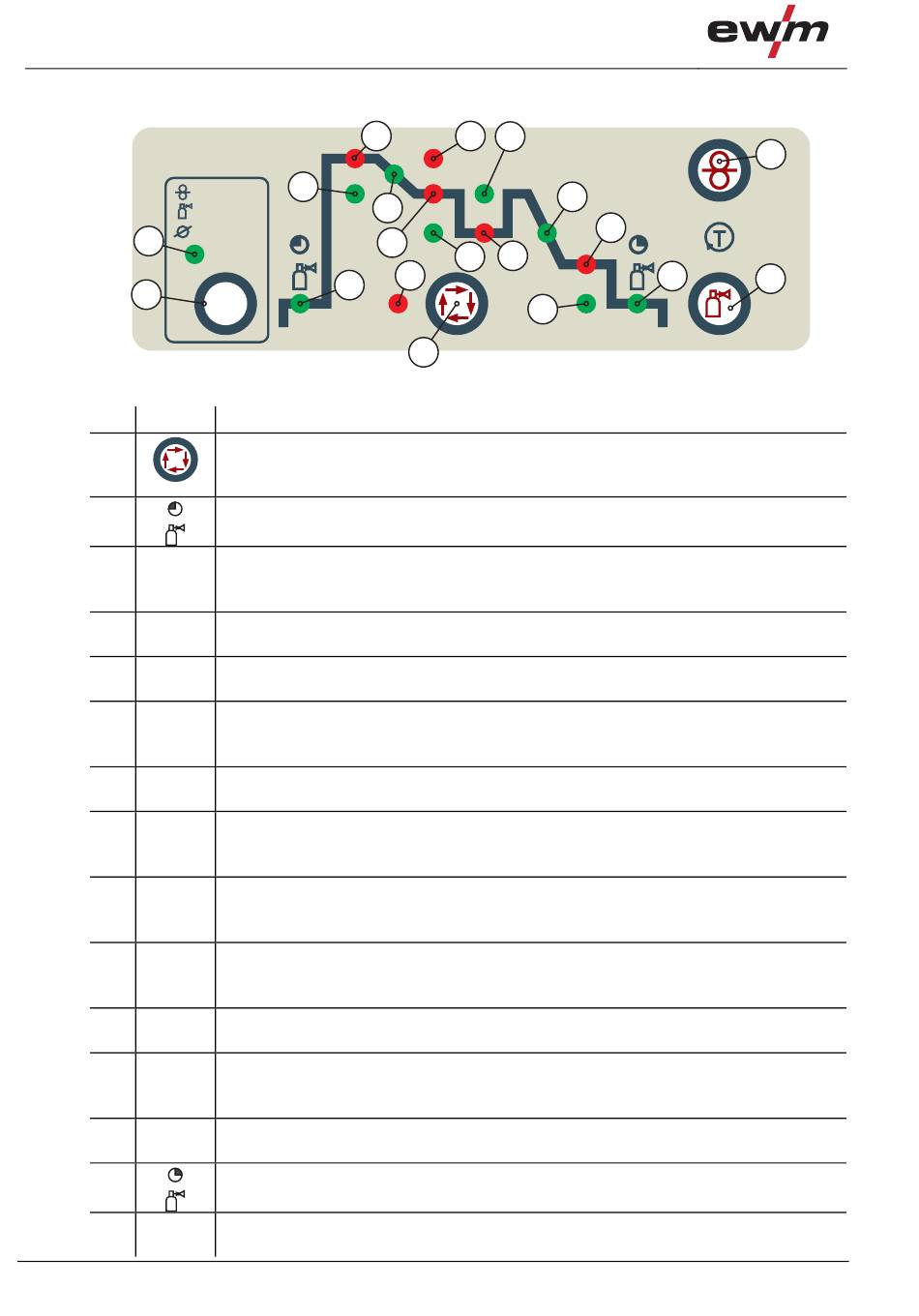

Machine control – Operating elements
4.2.1

Covered operating elements

M 3.74
Material
Gas
Wire
16
17
Item Symbol Description
1
2
3
4 sec
5 sec
6
7
DYN
8 sec
9
10 sec
11 sec
12
13 sec
14
Super-
15
puls
24
3
4
5
sec
2
JOB-
LIST
sec
Super-
puls
0
Select welding parameters button
This button is used to select the welding parameters depending on the welding process
and operating mode used.
Signal light, gas pre-flow time
Setting range 0.0 s to 20.0 s
Signal light, start program (P
• Wire speed:1% to 200% of the main program P
• Correction of the arc length -9.9 V to +9.9 V
Signal light, start time
Setting range, absolute 0.0 s to 20.0 s (0.1 s increments)
Signal light, slope time program P
Setting range 0.0 s to 20.0 s (0.1 s increments)
Signal light, main program (P
• Wire speed WF-min. to WF-max.
• Correction of the arc length -9.9 V to +9.9 V
Signal light, dynamics
Setting range -40 to +40
Signal light, duration of main program P
Setting range 0.0 s to 20.0 s (0.1 s increments).
Used e.g. in connection with the super pulse function
Signal light, reduced main program (P
• Wire speed:1% to 200% of the main program P
• Correction of the arc length -9.9 V to +9.9 V
Signal light, duration reduced main program P
Setting range 0.0 s to 20.0 s (0.1 s increments).
Used e.g. in connection with the super pulse function.
Signal light, slope time program P
Setting range 0.0 s to 20.0 s (0.1 s increments)
Signal light, end program (P
• Wire speed:1% to 200% of the main program P
• Correction of the arc length -9.9 V to +9.9 V
Signal light, duration of end program P
Setting range 0.0 s to 20.0 s (0.1 s increments)
Signal light, gas post-flow time
Setting range 0.0 s to 20.0 s
Signal lamp, super pulse function
Lights up when the super pulse function is active.
7 10
DYN
sec
sec
sec
6
9
8
sec
15
13
1
Figure 4-4
)
START
to main program P
START
)
A
A
)
B
(or P ) to end program P
A B
)
END
END
11
12
14
sec sec
A
A
A
B
END
A
