13.19 Adjusting the firebox door

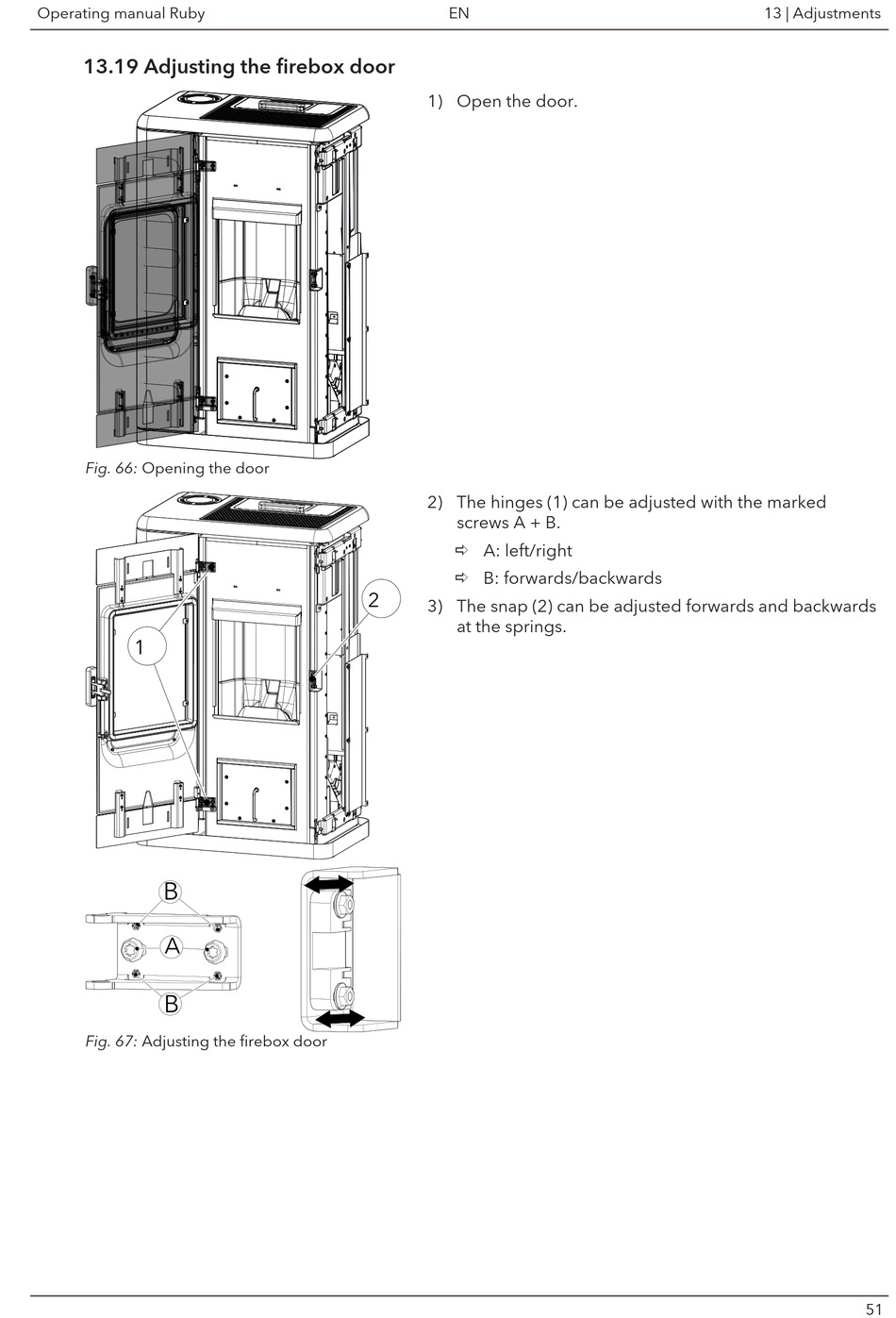

Fig. 66: Opening the door
1
B
A
B
Fig. 67: Adjusting the firebox door
EN
1) Open the door.
2) The hinges (1) can be adjusted with the marked
screws A + B.
ð A: left/right
ð B: forwards/backwards
2
3) The snap (2) can be adjusted forwards and backwards
at the springs.
13 | Adjustments
