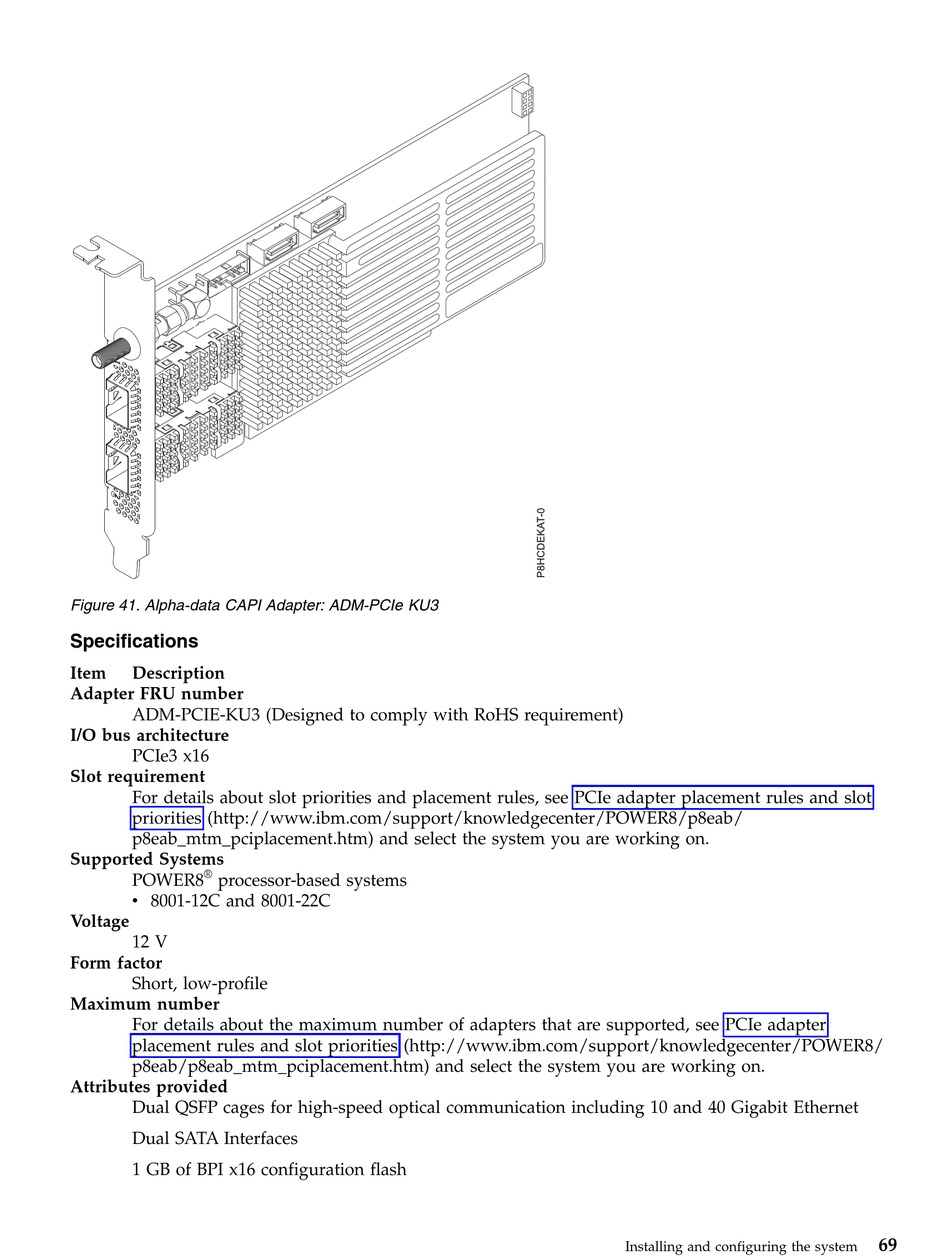

Figure 41. Alpha-data CAPI Adapter: ADM-PCIe KU3
Specifications
Item
Description
Adapter FRU number
ADM-PCIE-KU3 (Designed to comply with RoHS requirement)
I/O bus architecture
PCIe3 x16
Slot requirement
For details about slot priorities and placement rules, see PCIe adapter placement rules and slot
priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/
p8eab_mtm_pciplacement.htm) and select the system you are working on.
Supported Systems
®
POWER8
processor-based systems
v 8001-12C and 8001-22C
Voltage
12 V
Form factor
Short, low-profile
Maximum number
For details about the maximum number of adapters that are supported, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/
p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.
Attributes provided
Dual QSFP cages for high-speed optical communication including 10 and 40 Gigabit Ethernet
Dual SATA Interfaces
1 GB of BPI x16 configuration flash
Installing and configuring the system
69
