PCIe adapter placement rules and slot priorities for the 8001-22C or
8005-22N system
Find information about the placement rules and slot priorities for the Peripheral Component Interconnect
Express (PCIe) adapters that are supported for the IBM Power System S822LC for Big Data (8001-22C) or
the IBM CS822 (8005-22N).
PCIe slot descriptions
The 8001-22C or 8005-22N system provides PCIe generation 3 slots. Full-length, half-length or short
(low-profile) adapters can be installed. Figure 23 shows the rear view of the system with the PCIe adapter
slots. Table 6 lists the PCIe adapter slot locations and details for the 8001-22C or 8005-22N system.
Important: The only two adapters that are currently supported on the 8005-22N are FC EKFH and
AOC-S3008L-L8e-P.

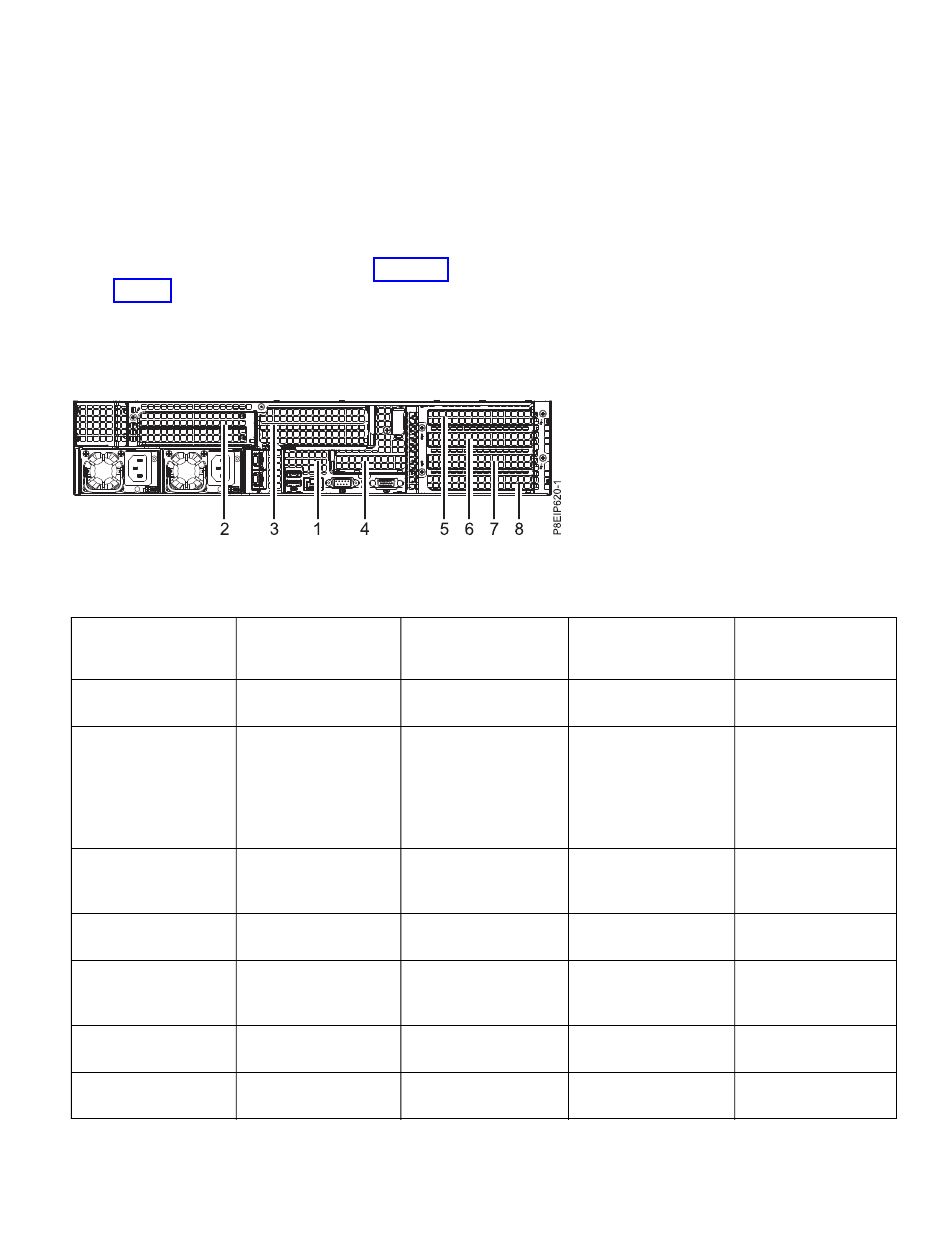

Figure 23. Rear view of an 8001-22C or 8005-22N system with PCIe slots indicated
Table 6. PCIe slot locations and descriptions for the 8001-22C or 8005-22N system
Slot Description
1 (UIO Network) 4 ports 10 networking
card x8
2 (UIO Slot2) Reserved for a SAS
super capacitor
carrier. This position
is not a functional
PCIe adapter
location.
3 (UIO Slot1) PCIe3 x16
4 (PLX Slot1) PCIe3 x8
5 (WIO Slot1) PCIe3 x16
7 (WIO Slot2) PCIe3 x8
8 (WIO Slot3) PCIe3 x8
PCI host bridge
(PHB) Adapter size
Processor Module 1, Riser
PHB0
Unused NA
Processor Module 1, Full-height,
PHB0 full-length,
double-width
Processor Module 1, Half-height,
PHB0 half-length
Processor Module 2, Full-height,
PHB1 full-length,
double-width
Processor Module 2, Full-height,
PHB1 full-length
Processor Module 2, Full-height,
PHB1 full-length
Coherent Accelerator
Processor Interface
(CAPI)
No
Unused
Yes
No
Yes
Yes
Yes
