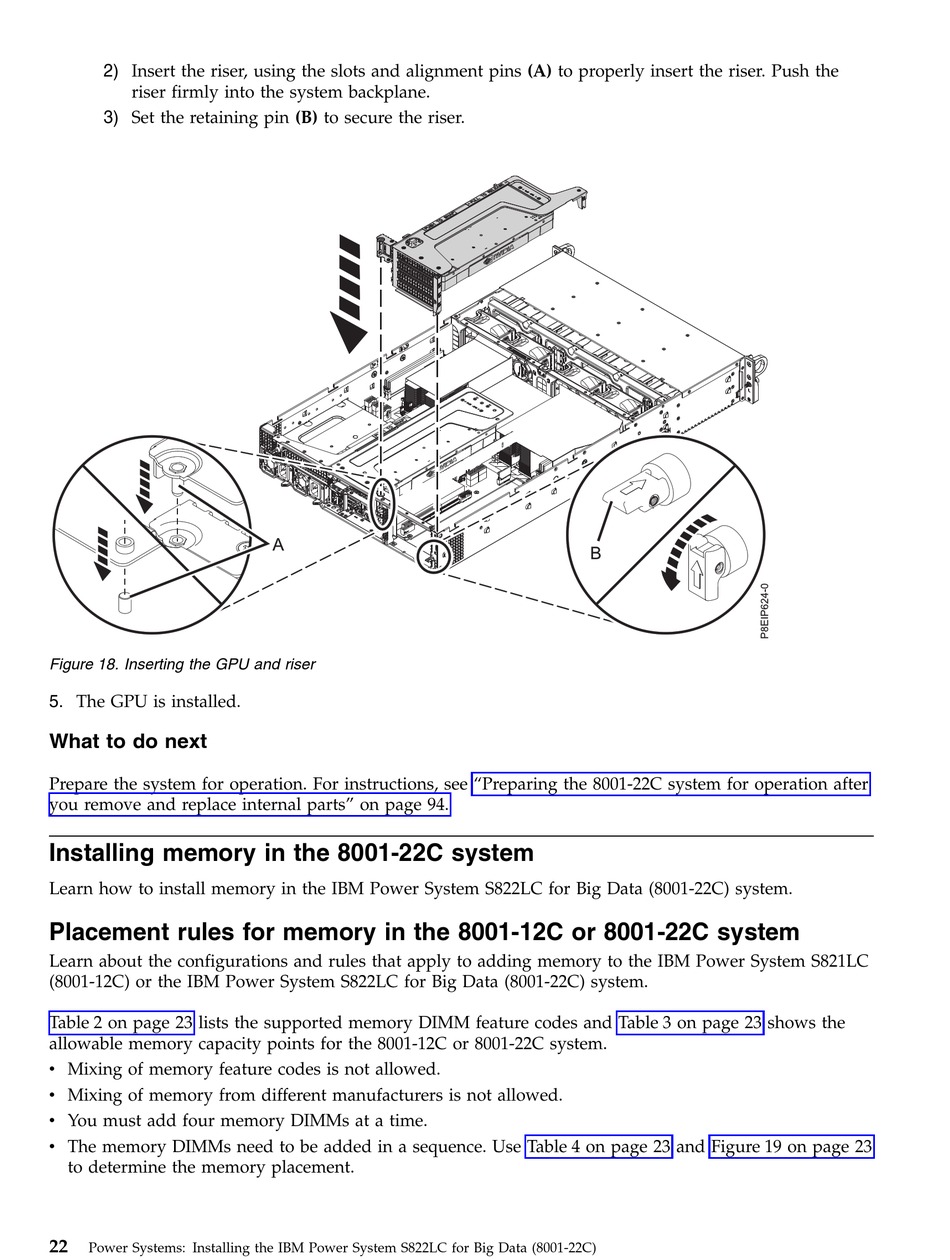

2) Insert the riser, using the slots and alignment pins (A) to properly insert the riser. Push the
riser firmly into the system backplane.
3) Set the retaining pin (B) to secure the riser.
Figure 18. Inserting the GPU and riser
5. The GPU is installed.
What to do next
Prepare the system for operation. For instructions, see "Preparing the 8001-22C system for operation after
you remove and replace internal parts" on page 94.
Installing memory in the 8001-22C system
Learn how to install memory in the IBM Power System S822LC for Big Data (8001-22C) system.
Placement rules for memory in the 8001-12C or 8001-22C system
Learn about the configurations and rules that apply to adding memory to the IBM Power System S821LC
(8001-12C) or the IBM Power System S822LC for Big Data (8001-22C) system.
Table 2 on page 23 lists the supported memory DIMM feature codes and Table 3 on page 23 shows the
allowable memory capacity points for the 8001-12C or 8001-22C system.
v Mixing of memory feature codes is not allowed.
v Mixing of memory from different manufacturers is not allowed.
v You must add four memory DIMMs at a time.
v The memory DIMMs need to be added in a sequence. Use Table 4 on page 23 and Figure 19 on page 23
to determine the memory placement.
22
Power Systems: Installing the IBM Power System S822LC for Big Data (8001-22C)
