b. Press firmly on each side of the memory DIMM until the locking tab locks in place with an
audible click.

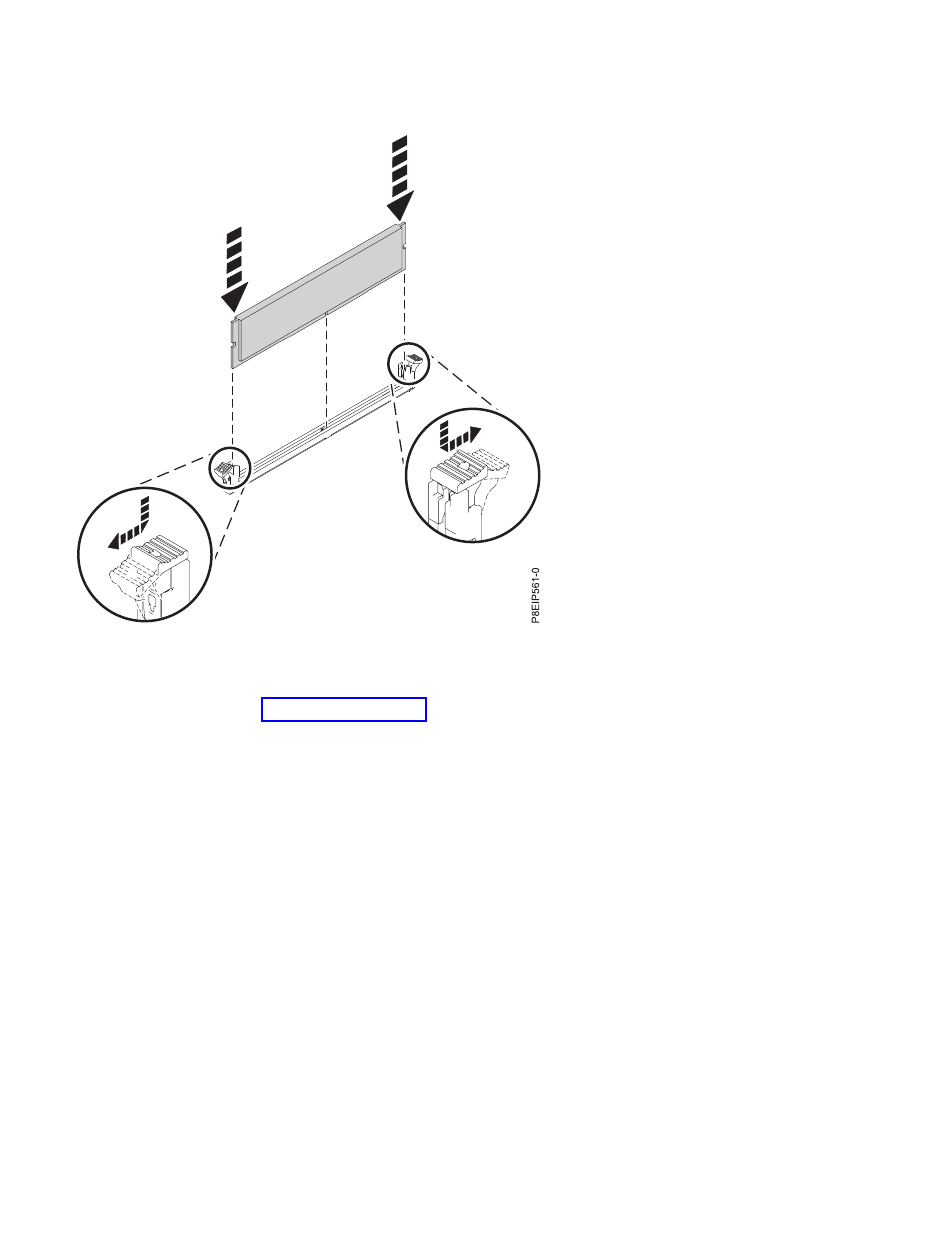

Figure 21. Inserting the memory DIMM
6. If you removed the system processor air baffle, replace it. Insert the edge of the baffle into the fan
support as shown in Figure 22 on page 26. Then, carefully press the baffle down into place.
Installing and configuring the system
25
