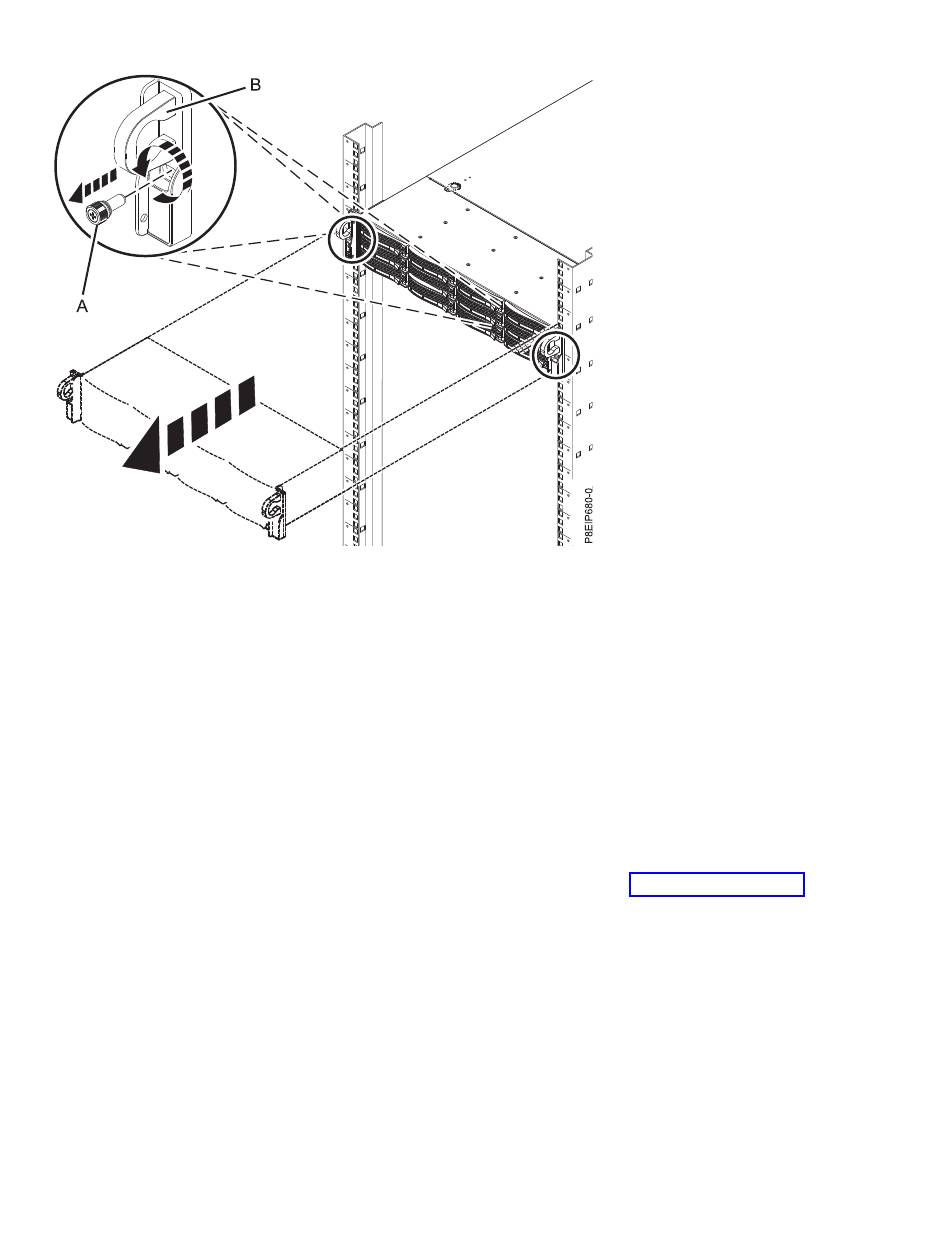

Figure 67. Removing the front screws and removing the system from the rack
5. Pull the system unit out of the rack.
6. Release the rail safety latches and remove the system from the rails.
7. Carefully set the system on a table with an appropriate ESD surface.
Placing an 8001-22C or 8005-22N system into the operating position
Learn how to place an IBM Power System S822LC for Big Data (8001-22C) or the IBM CS822 (8005-22N)
system into the operating position.
Procedure
1. Lift the system from the table.
2. Tilt the system into position over the rails.
3. Carefully lower the system onto the rails.
4. Release the rail safety latches (A) by lifting them upward, as shown in Figure 68 on page 107, then
push the system fully into the rack.
106
Power Systems: Installing the IBM Power System S822LC for Big Data (8001-22C)
