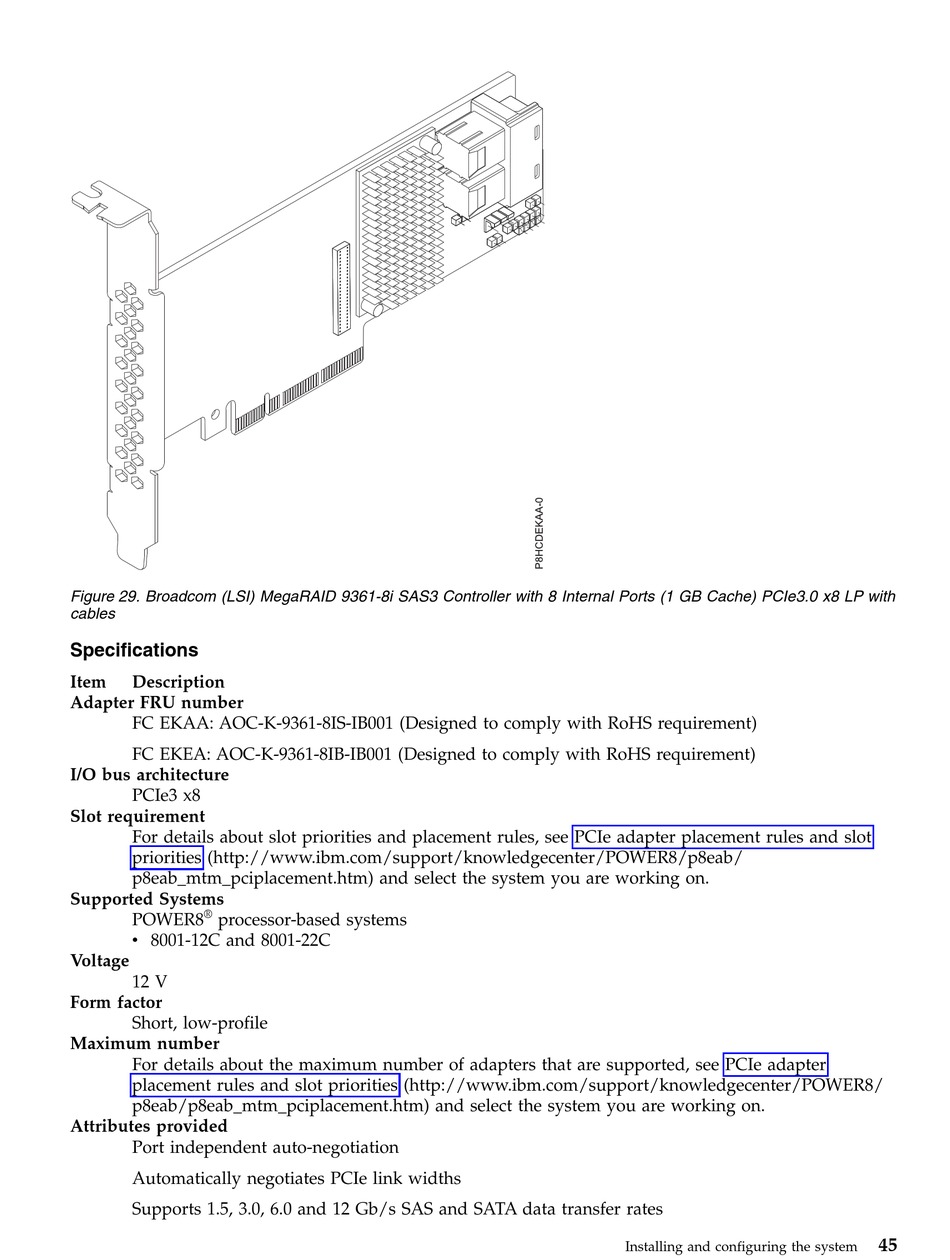

Figure 29. Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 Internal Ports (1 GB Cache) PCIe3.0 x8 LP with
cables
Specifications
Item Description
Adapter FRU number
FC EKAA: AOC-K-9361-8IS-IB001 (Designed to comply with RoHS requirement)
FC EKEA: AOC-K-9361-8IB-IB001 (Designed to comply with RoHS requirement)
I/O bus architecture
PCIe3 x8
Slot requirement
For details about slot priorities and placement rules, see PCIe adapter placement rules and slot
priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/
p8eab_mtm_pciplacement.htm) and select the system you are working on.
Supported Systems
®
POWER8 processor-based systems
v 8001-12C and 8001-22C
Voltage
12 V
Form factor
Short, low-profile
Maximum number
For details about the maximum number of adapters that are supported, see PCIe adapter
placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/
p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.
Attributes provided
Port independent auto-negotiation
Automatically negotiates PCIe link widths
Supports 1.5, 3.0, 6.0 and 12 Gb/s SAS and SATA data transfer rates
