NOTE
If the device contains a CODESYS Runtime, then the CODESYS Runtime must be
transferred to the device after the image has been updated. See section
the CODESYS Runtime Version Using USB or SD Card
Version Over

4.3. Update the Image Version Using Recovery SD Card

In a complete system update the IP settings will be reset to default values and the iX Developer
project will be deleted. To keep the IP setting and the iX Developer project it is recommended to
make a backup of the iX Developer project and make a note of the IP settings prior to an image
update.
NOTE
When updating the system image through "Make recovery SD card" an SD card
formatted with FAT16/FAT32 and maximum 32 GB must be used.
Do the following:
In Select drive:, choose the connected SD card.
1.

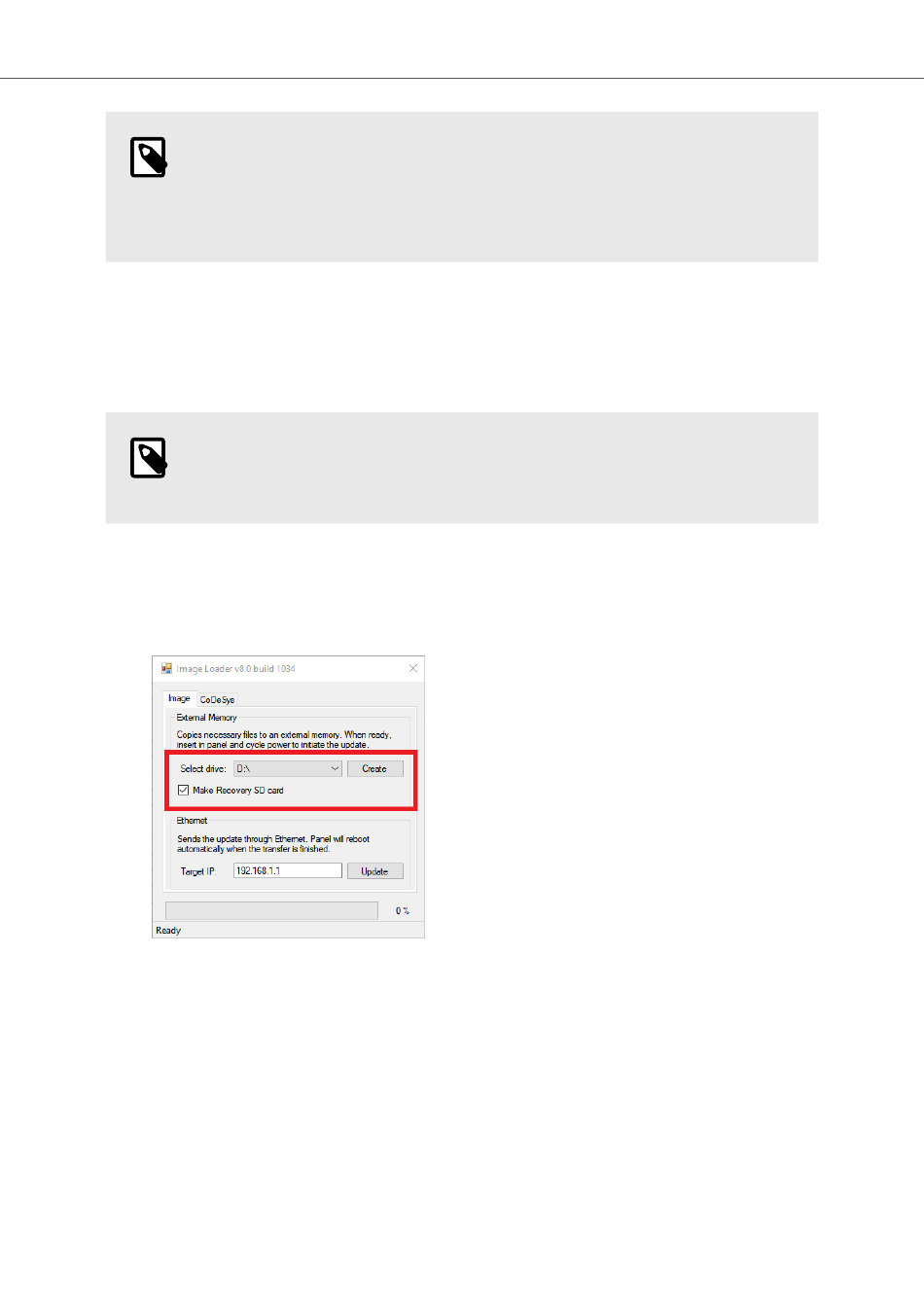

Create an image recovery SD card by selecting Make Recovery SD card when using the Image
2.
Loader utility.
Click Create.
3.
4. When finished, eject the SD card.
5. Connect the SD card to the BoX2 device and boot the device.
6. A red LED indication, with constant light, will indicate that the device is booting and updating
the image.
7. When the red LED indication starts to slowly blink, 2 seconds on, 2 seconds off, the update is
complete.
8. Eject the SD card and reboot the device.
9. After the reboot, wait until the LED indications shows purple, on/off every 0.5 seconds.
Beijer Electronics, MAEN363
Ethernet.
17
Image and CODESYS Runtime Update
Update
or Update the CODESYS Runtime
2023-06
