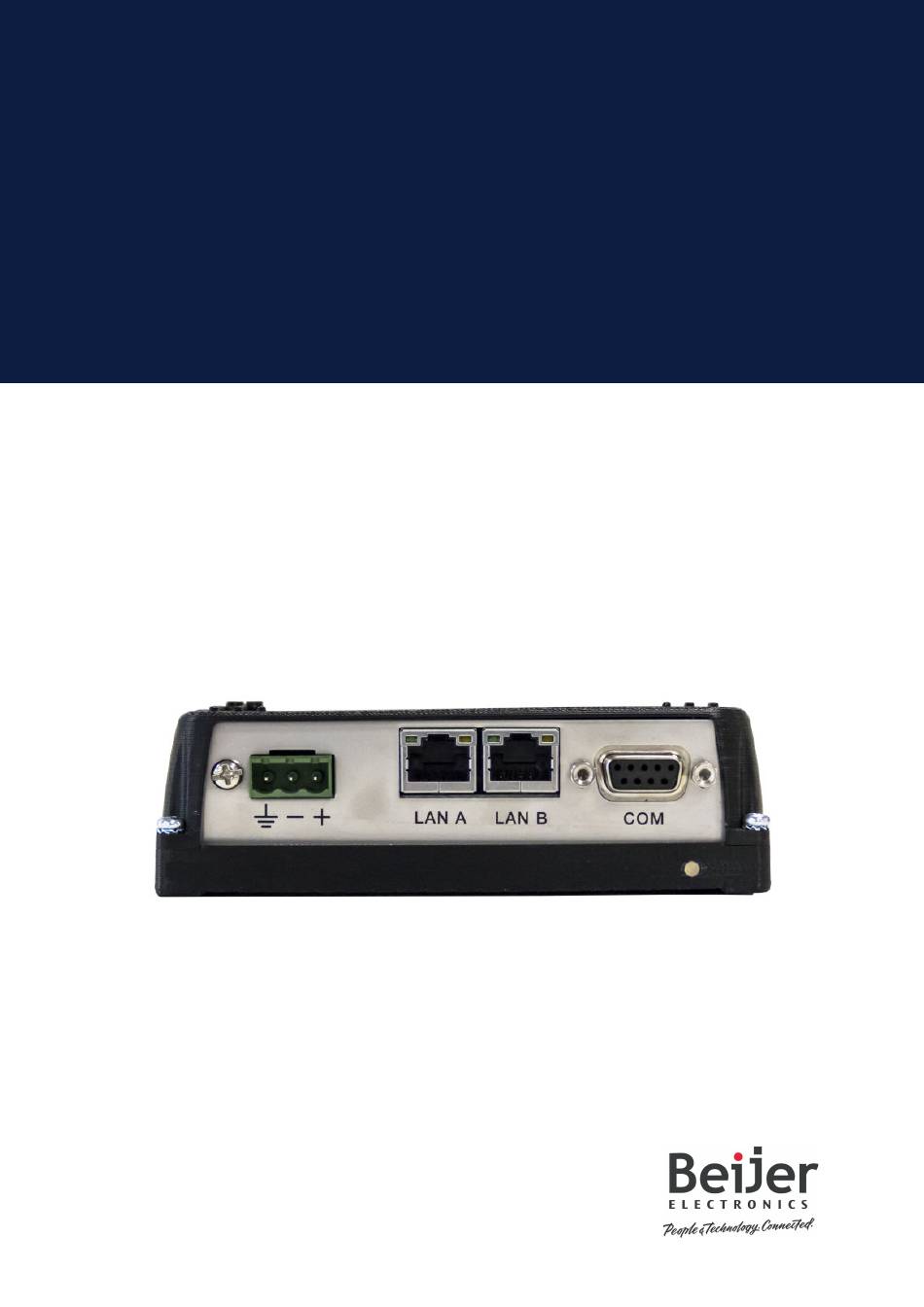

- Page 1 Installation Manual BoX2 pro MAEN275 2023-09...
- Page 2 The information in this document is subject to change without notice and is provided as availa- ble at the time of printing. Beijer Electronics AB, including all its group companies, reserves the right to change any information without updating this publication. Beijer Electronics AB, in- cluding all its group companies, assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
6.6. Galvanic Isolation ................21 6.7. Cable and Bus Termination RS-485 ............22 6.8. CAN Interface ..................22 6.8.1. Cable Recommendations .............. 22 6.8.2. Termination ................22 6.8.3. Restrictions and Recommendations ..........23 6.9. USB Flash Drive .................. 23 Beijer Electronics, MAEN275 2023-09... -
Page 5: Safety Precautions
(EEE), please contact your dealer or supplier for further information. For disposal in countries outside of the European Union: If you wish to discard this product please contact your local authorities or dealer and ask for the correct method of disposal. Beijer Electronics, MAEN275 2023-09... -
Page 6: Ul And Cul Installation
AWG 24 – 12 • These devices are Class 2 supplied programmable controllers (industrial PCs) for the use in industrial control equipment and are intended to be (front) panel mounted (Type 12 and 4x for indoor use only). 2023-09 Beijer Electronics, MAEN275... -
Page 7: During Installation
• Before carrying out any cleaning or maintenance operations, disconnect the equipment from the electrical supply. • The battery must be replaced by an authorized Beijer Electronics service center. 1.8. Dismantling and Scrapping • Recycle the device and parts of it according to local regulations. -
Page 8: Installation
• No tools required - standard usage. • A Phillips screwdriver for movement or removal of the DIN rail mounting bracket Do the following: Unpack and check the delivery. If damage is found, notify the supplier. 2023-09 Beijer Electronics, MAEN275... -
Page 9: Connections To The Controller
• Shielded communication cables are recommended. 2.1.1. Connections to the Controller For information about the cables to be used when connecting the HMI panel to the controller, please refer to the help file for the driver in question. Beijer Electronics, MAEN275 2023-09... -
Page 10: Other Connections And Peripherals
Installation 2.1.2. Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. 2023-09 Beijer Electronics, MAEN275... -
Page 11: Technical Data
Technical Data 3. Technical Data Parameter BoX2 pro Front panel, W×H×D 128 × 101 × 39 mm Standalone mounting VESA 75 × 75 Note: Maximum screw length for VESA mounting is 4 mm. Usage of longer screws may lead to damage. -
Page 12: Compass Safe Distance
UL.com Marine certificates Information is available on www.beijerelectronics.com 3.1. Compass Safe Distance Variant Condition Standard Compass Steering Compass BoX2 pro (SC) Non-energized 10 cm 5 cm Non-energized after 15 cm 5 cm magnetization Energized and operating 10 cm 5 cm... -
Page 13: Chemical Resistance
The powder paint shows little or no resistance to the following chemicals at room temperature: Acetic acid, conc. Methyl-ethyl ketone Toluene Acetone Nitric acid 30% Trichlorethylene Ammonia 5% Phenol Xylene Ammonia, conc. Sodium hydroxide 5% 97 octane unleaded petrol Ethyl acetate Sodium hydroxide 30% 98 octane leaded petrol Beijer Electronics, MAEN275 2023-09... -
Page 14: Device Drawings
The connector supports up to three independent communication channels and can be configured for RS-232 and RS-422 or 2x RS-485 or 1x CAN. NOTE In order to utilize two communication ports, the Y-split cable CAB109 can be used. To use RS-232 and RS-422, use CAB 109. 2023-09 Beijer Electronics, MAEN275... -
Page 15: Hmi Panel Outline
Device Drawings 5.2. HMI Panel Outline NOTE A Step CAD file is available on www.beijerelectronics.com Beijer Electronics, MAEN275 2023-09... -
Page 16: Additional Installation Tips
Multi-wire conductors are better than single wire conductors with the same area. A braided conductor wire with the same area is even better. The best is a short, thick grounding braid. 2023-09 Beijer Electronics, MAEN275... -
Page 17: Ethernet Connection For The Device
This connects the HF transients to ground. 6.3. To Achieve Better EMC Protection • Initially, use the original cabling from Beijer Electronics primarily. • Place the 24 V DC and communications cabling in one cable trunk/cable duct and 230/380 V AC in another. -
Page 18: Ambient Temperature
2-4 times around the cores are approximately 5-25 times more efficient. 6.4. Ambient Temperature The maximum ambient temperature for the BoX2 device is provided in the specifications. The ambient temperature refers to the temperature in the device cabinet which cools the BoX2 device's electronics. 2023-09 Beijer Electronics, MAEN275... - Page 19 This is assuming that all supplied power is transformed to heat. NOTE Please ensure that the temperature will not exceed the maximum ambient operating temperature in the enclosure. This can be influenced by other heat generating devices. Beijer Electronics, MAEN275 2023-09...
-
Page 20: Safety
• Transients on the 24 V feed are connected to the ground. • No risk that the 24 V feed is at a high level in relationship to the ground. This is not unusual since there is high static electricity. 2023-09 Beijer Electronics, MAEN275... -
Page 21: Galvanic Isolation
HMI panel, and can cause errors. Use external units to improve communication and achieve galvanic isolation. Westermo has good industry-standard insulators that are also insulated from the 24 V DC feed. Beijer Electronics, MAEN275 2023-09... -
Page 22: Cable And Bus Termination Rs-485
120 Ohm/1%/0.25W on each end. • Place the termination resistor near the CAN bus connector (as close as possible). • This product has no integrated termination resistors. They must be added externally. 2023-09 Beijer Electronics, MAEN275... -
Page 23: Restrictions And Recommendations
The USB port, or ports, are of 2.0 standard and support FAT16, FAT32 and exFAT file systems for USB flash drives (option, sold separately). Size limitations for file systems: • FAT16: up to 2 GB • FAT32: up to 32 GB • exFAT: up to 2 TB Beijer Electronics, MAEN275 2023-09...
