Shape the Beam with a Pattern

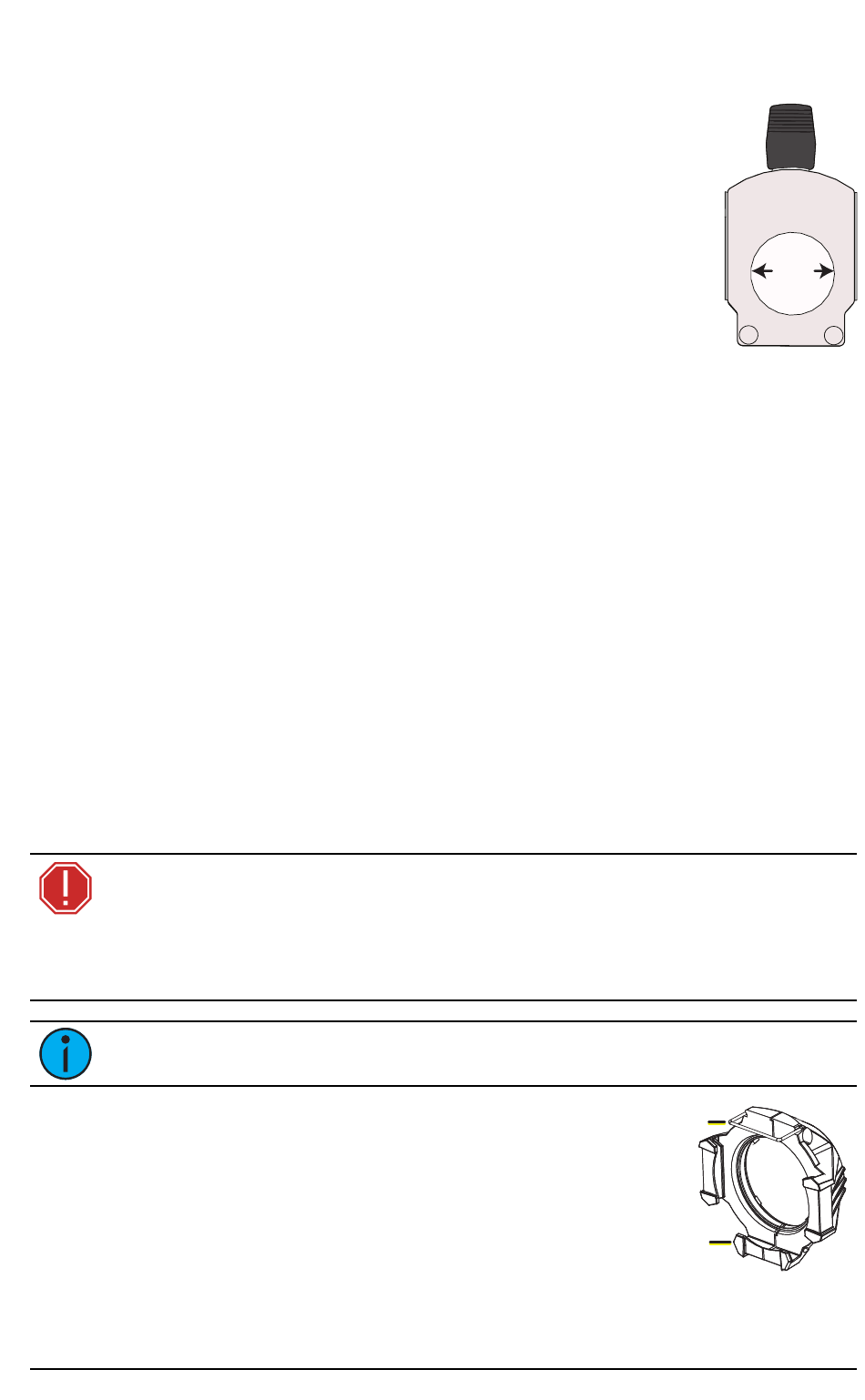

The luminaire has a pattern-holder slot on the top side of
the shutter barrel, in front of the shutter. It accommodates
a glass or stainless steel E-size (37.5 mm with a 25.4 mm
image area) pattern. The maximum pattern thickness that
can be accommodated is 1.1 mm (0.04 in).
Use an optional donut in the color frame holder to enhance
pattern projection.
When the slot is not in use, a small sheet metal cover
secured with a Phillips screw prevents light leakage.
1. Use a Phillips screwdriver to loosen the screw on the slot cover. Do not
remove the screw.
2. Slide the cover knob on the luminaire completely to the side to expose
the slot.
3. Insert the pattern holder.
4. Slide the slot cover back toward the shutters until it meets the pattern
handle. Leave enough space to move the handle.
5. Secure the slot cover by tightening the screw.

Use the Color Frame Holder

The Source Four Mini LED comes equipped with a color frame (either 70 mm
or 2 3/4 in), which is a metal frame used to hold color media (often referred
to as gel) in front of the lens. The color frame holder is equipped with a
retaining clip that prevents the color frame from falling out.
Additional accessories are available that also fit into the color frame holder:
top hat, short top hat, half hat, short half hat, and donut. When you use an
accessory, install the color frame in the rear slot of the holder.
WARNING:
mounting the luminaire.
AVERTISSEMENT :
verrouillé avant de monter le projecteur.
Note:
The color frame should be inserted with the open side down.
1. Release the retaining clip by gently
pushing it up.
2. Insert the color frame.
3. Lock the retaining clip by gently pushing
it down.
Source Four Mini LED User Manual
Check that the accessory holder is locked before
Vérifiez que le porte-accessoires est
Retaining clip
Color frame
holder
25.4 mm
(1 in)
Diameter
11
