Install Track-Mounted Luminaire (DataTrack)

WARNING:
the track-mount luminaire only with its designated track
system (for example, One Track or DataTrack).
AVERTISSEMENT :
choc électrique, utiliser le luminaire à adaptateur pour rail
uniquement avec son système de rail désigné (OneTrack ou
DataTrack par exemple).
WARNING:
ceiling-mounted track only.

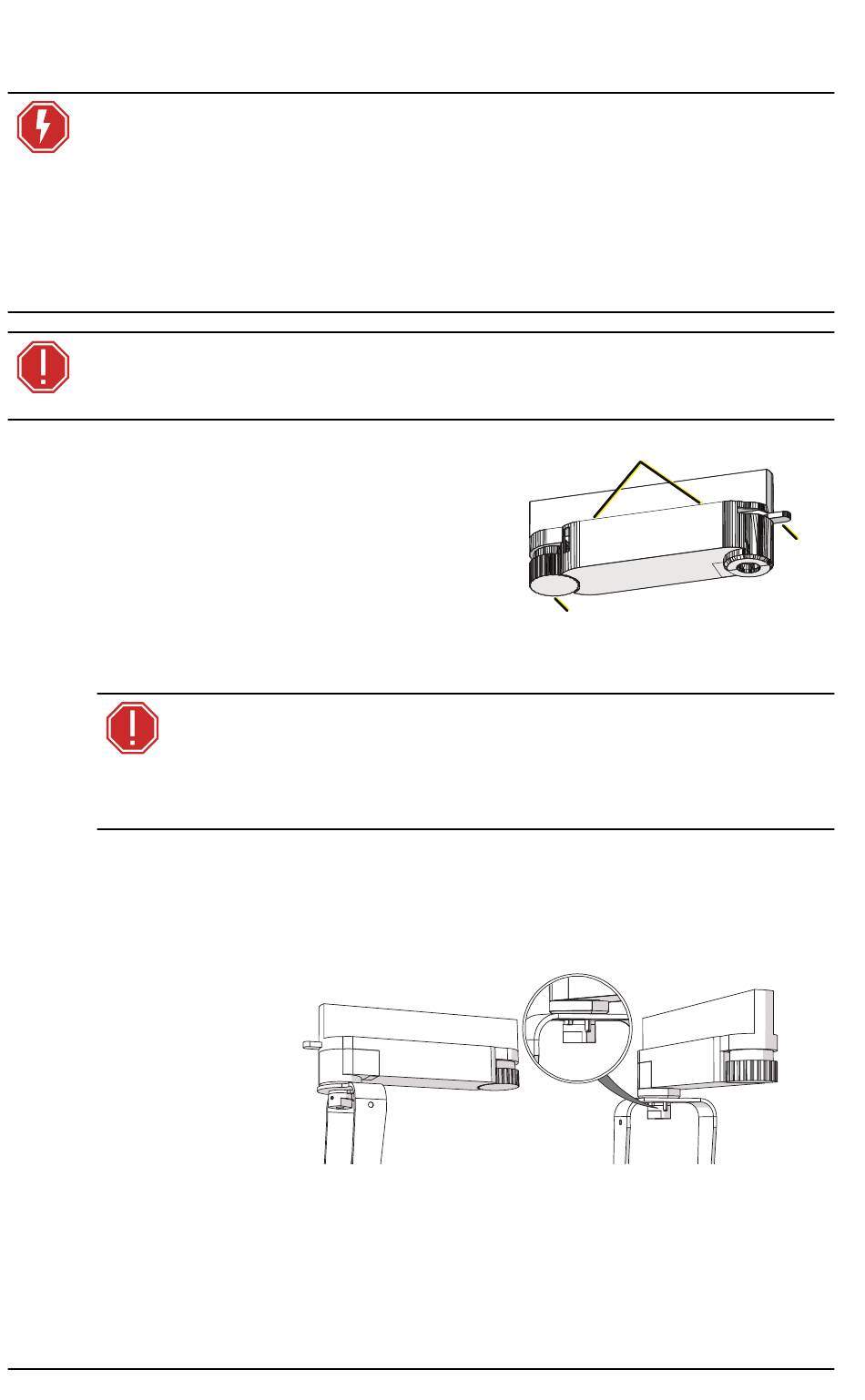

1. Insert the DataTrack adapter into
the track. The adapter only fits into
the track one way with the tabs
nesting into the track's groove.
2. Rotate the locking mechanism to
lock the adapter into place.
3. Use the circuit selection lock to select the circuit. The desired circuit
number should point toward the center of the adapter.
4. Focus the luminaire.
5. Lock the luminaire into place using the yoke lock.
Cable protection
posts on both the
yoke lock and the
yoke prevent the
luminaire from
rotating a full
360°. To lock the
yoke in place use
a 1.5 mm hex key.
6
To reduce the risk of fire and electric shock, use
Pour éviter le risque d'incendie ou de
Use the DataTrack track-mount luminaire with
WARNING:
When using the circuit selection lock,
ensure that the selected circuit is a constant power
circuit. Selecting a dimmable circuit may cause
luminaire damage that will void the ETC warranty.
Tabs
Circuit
selection wheel
Source Four Mini LED User Manual
Lock
