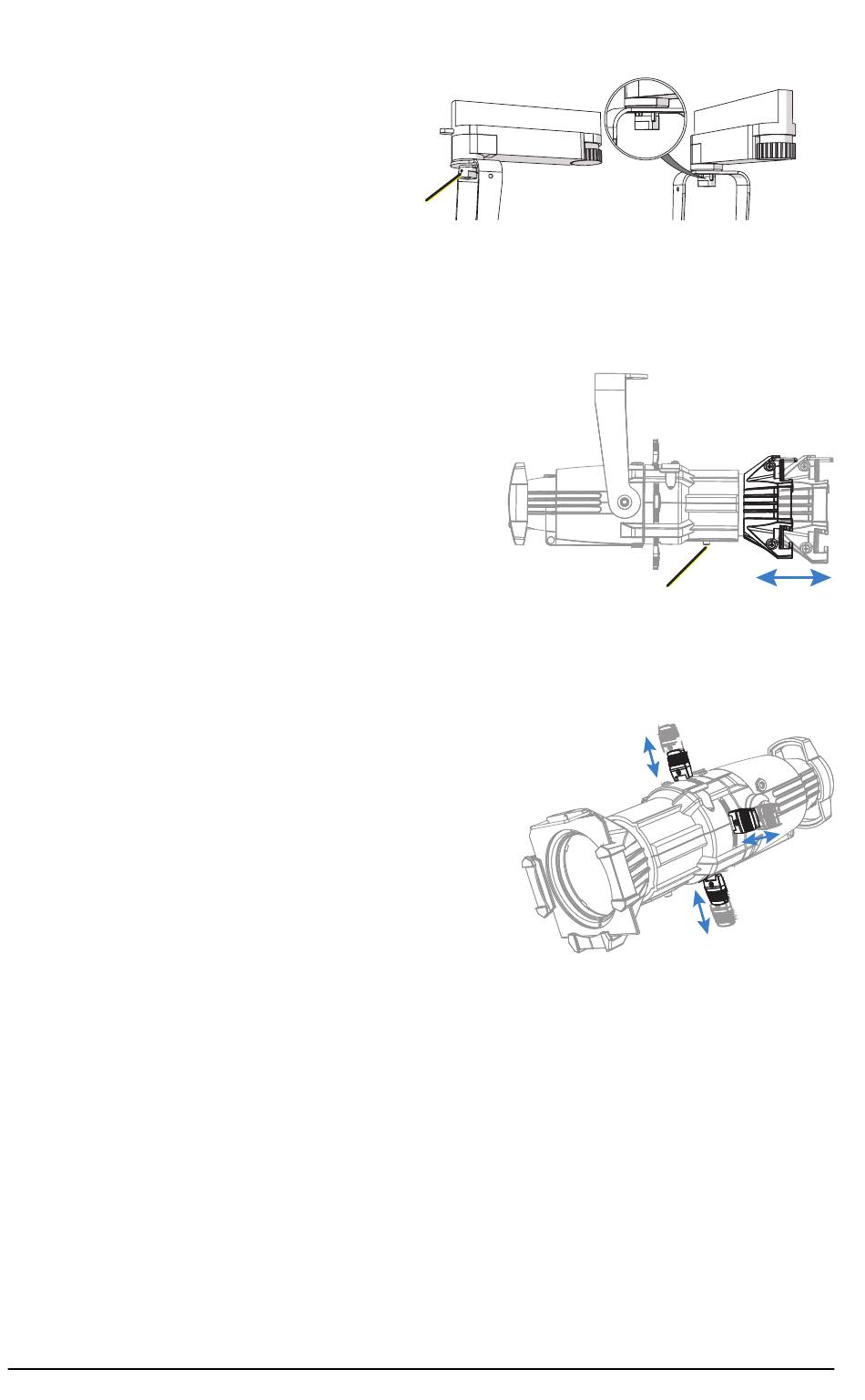

Lock the Rotation (Canopy and Track-Mount)

1. Rotate the luminaire
to the desired
position. To protect
the wiring, the
luminaire cannot
rotate completely
around.
2. Insert a 1.5 mm hex key into the small hole on the yoke lock, and turn
it to tighten the yoke lock.

Focus the Beam

Loosen the beam focus knob, adjust the
lens tube position as needed, and then
tighten the knob.

Shape the Beam

You can shape the beam using the four shutters or with a pattern.
Shape the Beam with
Shutters
The luminaire has four shutters: left,
right, top, and bottom. Each shutter can
be pulled out or pushed in to create the
desired beam shape.
