1. Remove the mounting plate from the luminaire by removing the two
canopy bolts and the ground bolt. Set the ground bolt aside.
2. Using the mounting plate bolts, secure the mounting plate to the
installed back box (not included).
CAUTION:
allowing the mounting plate bolts to nest into the canopy
plate. For an ideal flush-mount installation, you may need to
rotate the plate to accommodate these indentations. See the
following image.
3. Place the copper ground braid loop over the ground bolt and attach
the ground bolt to the back box.
4. Connect the building ground wire to the ground wire on the
luminaire, following local electrical codes.
5. Connect the supply power wires to the luminaire wiring using the
included WAGO
• For 120 V luminaires: Connect the black wire to line and the
white wire to neutral.
• For 230 V luminaires: Connect the brown wire to line and the
blue wire to neutral.
6. Use the canopy bolts to secure the luminaire to the mounting plate.
7. Open all four shutter blades by sliding them outward until they stop.
8. Install a gobo and gel as desired and confirm that they are properly
secured.
9. Restore power at the disconnect device.
10. Focus the luminaire as needed.
8

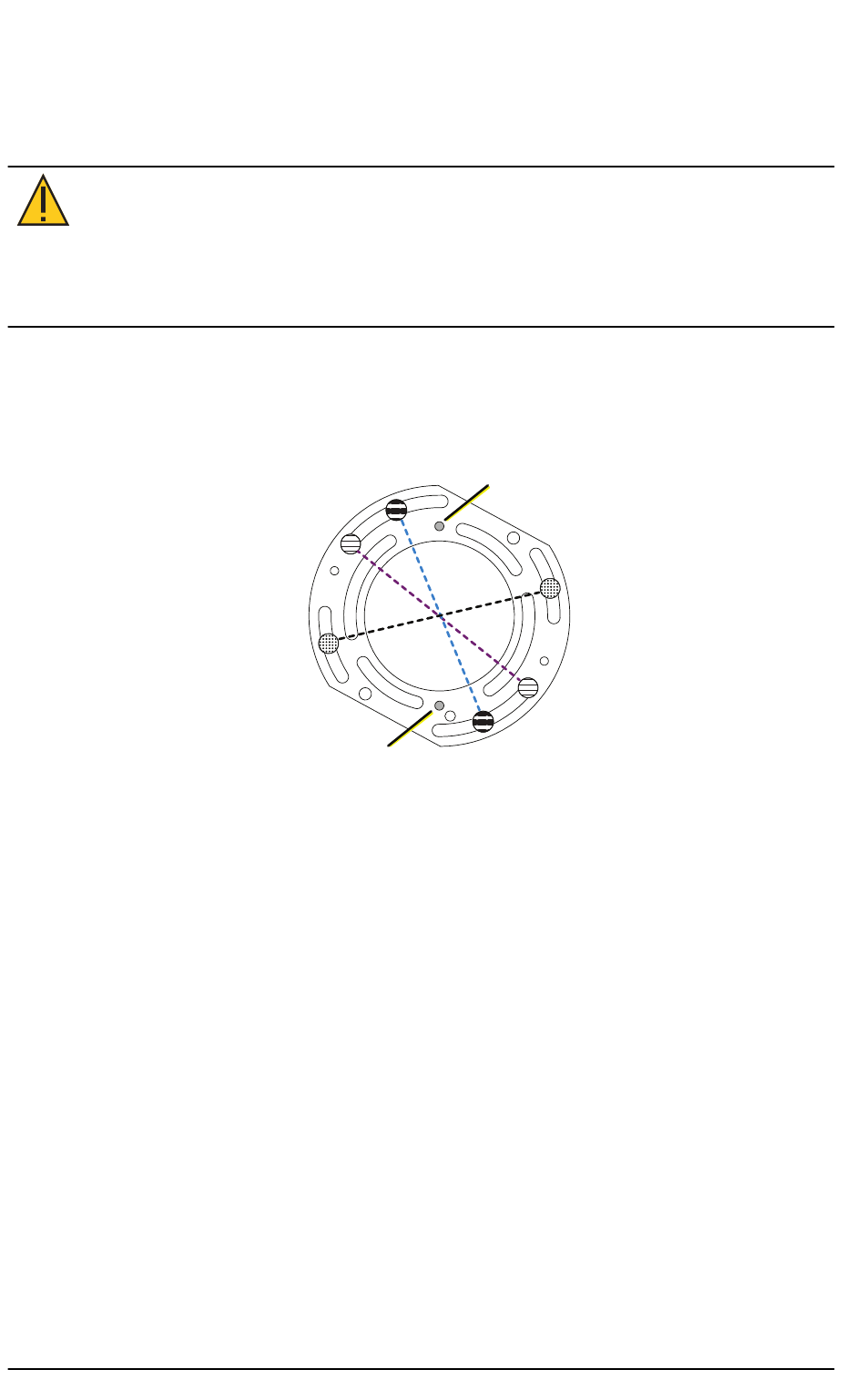

The canopy plate has built-in indentations
installation detail
2
3
Canopy
bolt hole
Install the mounting plate screws in one of the three
position-pairings shown. Only the slots on the outer
circumference will allow a true flush mounting.
®
connectors.
Mounting plate
Canopy
bolt hole
1
1
3
2
