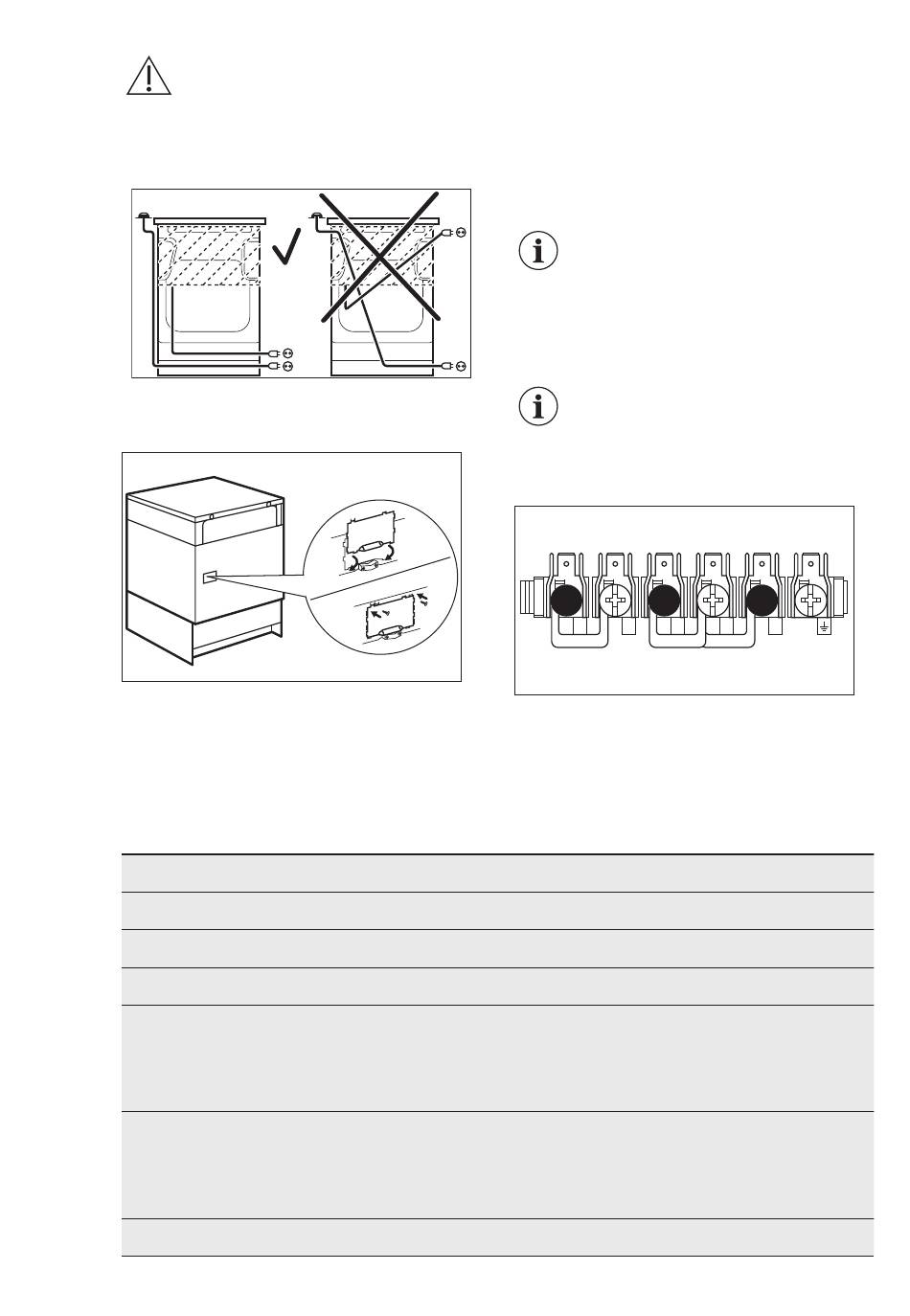

WARNING!
The power cable must not
touch the part of the
appliance shaded in the
illustration.
13.5 Covering terminal board
• The recommended cross-section area
is six square millimetres (6 mm²).
14. ENERGY EFFICIENCY
14.1 Product information for hob according to EU 66/2014
Model identification
Type of hob
Number of cooking zones
Heating technology
Diameter of circular cooking
zones (Ø)
Energy consumption per
cooking zone (EC electric
cooking)
Energy consumption of the hob (EC electric hob)
• When you refit the mains terminal
cover, make sure that the lower tabs
are located inside the bottom edge of
the aperture, before you fix the two
screws into the top edge of the mains
terminal cover.
• Make sure that the cover is securely
fastened.
13.6 Terminal board
Make sure that the links are fitted as
shown.
CCB6760ACM
Hob inside Freestanding Cooker
4
Radiant Heater
Left front
Left rear
Right front
Right rear
Left front
Left rear
Right front
Right rear
To open the cover of
terminal board obey the
procedure in opposite
sequence.
Do not remove blanking
plates.
L
L
N
N
14.0 cm / 21.0 cm
14.5 cm
14.5 cm
18.0 cm
178.9 Wh/kg
181.8 Wh/kg
181.8 Wh/kg
192.3 Wh/kg
183.7 Wh/kg
ENGLISH
31
