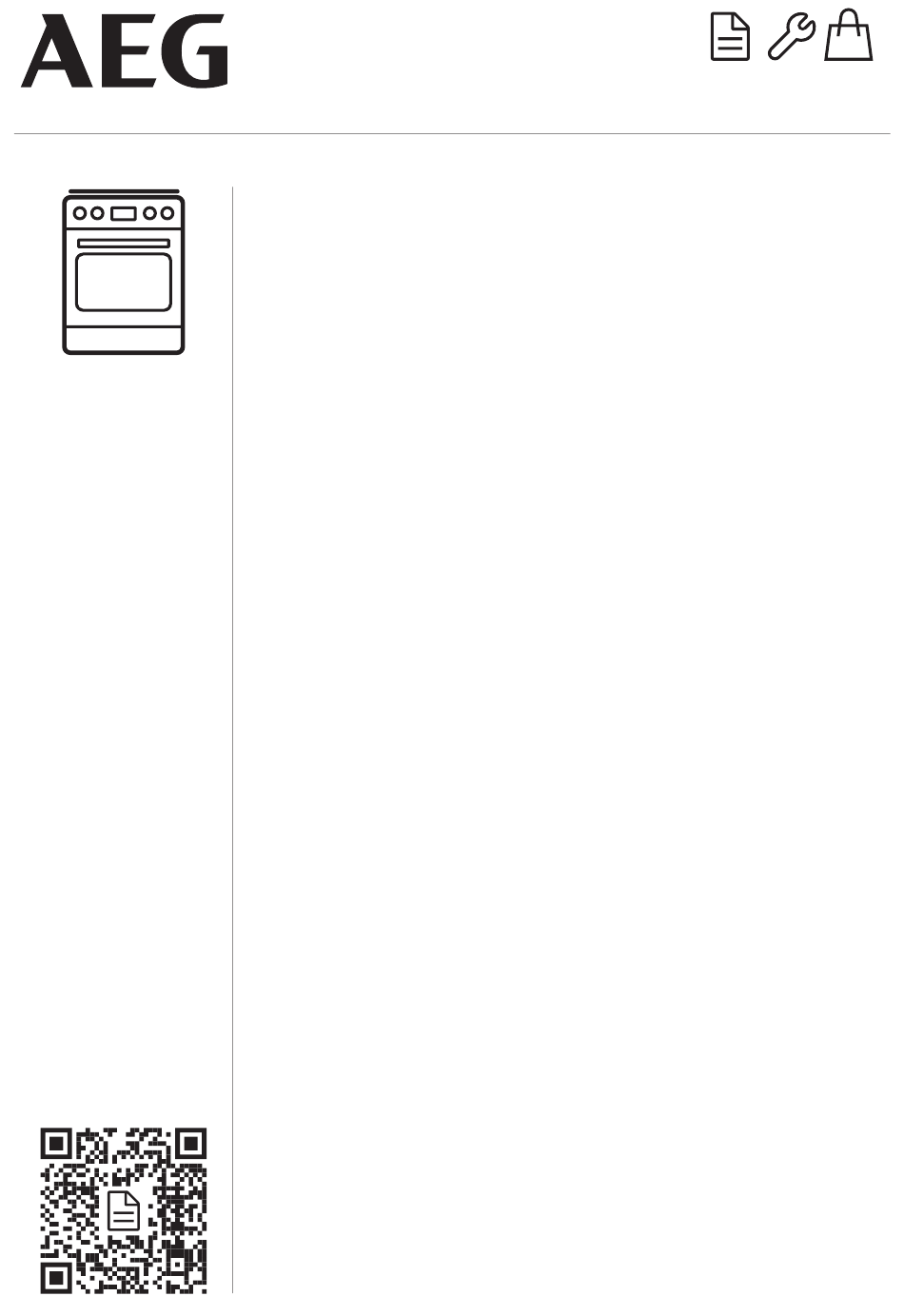

- Page 1 EN User Manual | Cooker CCB6445BBB aeg.com\register...
-
Page 2: Table Of Contents
Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, troubleshooting, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................5 3. INSTALLATION....................7 4. PRODUCT DESCRIPTION................9 5. BEFORE FIRST USE..................10 6. -
Page 3: General Safety
be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use. - Page 4 • Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid. • CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
-
Page 5: Safety Instructions
• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence. • The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. -
Page 6: Care And Cleaning
• The electrical installation must have an • Do not put flammable products or items isolation device which lets you disconnect that are wet with flammable products in, the appliance from the mains at all poles. near or on the appliance. The isolation device must have a contact •... -
Page 7: Internal Lighting
• Before maintenance, deactivate the • Concerning the lamp(s) inside this product appliance. and spare part lamps sold separately: Disconnect the mains plug from the mains These lamps are intended to withstand socket. extreme physical conditions in household • Make sure the appliance is cold. There is appliances, such as temperature, the risk that the glass panels can break. -
Page 8: Levelling Of The Appliance
Minimum distances Dimension 3.3 Levelling of the appliance CAUTION! Make sure you install the anti-tilt protection at the correct height. Make sure that the surface behind the appliance is smooth. 1. Set the correct height and area for the Use small feet on the bottom of appliance to appliance before you attach the anti-tilt set the appliance top surface level with other protection. -
Page 9: Electrical Installation
Applicable types of cables for different 24 mm phases: Phase Min. size cable 3x6.0 mm² 3 with neutral 5x1.5 mm² WARNING! The power cable must not touch the part of the appliance shaded in the illustration. 3.5 Electrical installation WARNING! The manufacturer is not responsible if you do not follow the safety precautions from Safety chapters. -
Page 10: Before First Use
4.2 Hob overview 4.3 Accessories • Wire shelf For cookware, cake tins, roasts. 265 mm 265 mm • Baking tray 145 mm For cakes and biscuits. 170 mm 170 mm • Grill- / Roasting pan To bake and roast or as pan to collect fat. 120/210 140/210 145 mm... -
Page 11: Hob - Daily Use
6. HOB - DAILY USE To activate the outer ring: turn the knob WARNING! clockwise through a light resistance to Refer to Safety chapters. Then turn the knob counterclockwise to the correct heat setting. 6.1 Heat setting To deactivate the outer ring: turn the knob to the off position. - Page 12 7.2 Minimum cookware diameter Do not use cookware on the ceramic hob Cooking Cookware diam‐ Power (W) with bases with pronounced edges or zone eter (mm) ridges, e.g. cast iron pans. These could scratch or scour the hob surface Left rear Φ...
-
Page 13: Hob - Care And Cleaning
Heat setting Use to: Time Hints (min) 7 - 8 Heavy fry, hash browns, loin steaks, 5 - 15 Turn over when needed. steaks. Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips. 8. HOB - CARE AND CLEANING 8.2 Cleaning the hob WARNING! •... -
Page 14: Cooling Fan
9.3 Cooling fan Fast grilling When the oven operates, the cooling fan To grill thin pieces of food in large quantities turns on automatically to keep the surfaces of and to toast bread. the oven cool. If you turn off the oven, the Turbo grilling cooling fan continues to operate until the To roast larger meat joints or poultry with bones... -
Page 15: Telescopic Runners - Inserting The Oven Accessories
9.5 Telescopic runners - inserting Put the wire shelf on the telescopic runners the oven accessories so that the feet point downwards. Deep pan: Keep the installation instructions for the telescopic runners for future use. With telescopic runners you can put in and remove the shelves more easily. -
Page 16: Clock Functions
10.3 Clock functions Clock function Application TIME OF DAY To set, change or check the time of day. DURATION To set how long the oven works. MINUTE MINDER To set a countdown. This function has no effect on the operation of the oven. You can set this function at any time, also when the oven is off. - Page 17 Food Temperature (°C) Time (min) Shelf position Frozen pizza 350 g 25 - 35 Cakes in baking tray Food Temperature (°C) Time (min) Shelf position Swiss roll 20 - 30 Brownie 30 - 40 Cakes in tin Food Temperature (°C) Time (min) Shelf position Soufflè...
-
Page 18: Information For Test Institutes
11.2 Information for test institutes Food Function Tem‐ Time (min) Accesso‐ Shelf po‐ pera‐ ries sition ture (°C) Small cakes (20 small Conventional cooking 20 - 30 Tray cakes per tray) Small cakes (20 small True fan cooking 20 - 30 Tray cakes per tray) Small cakes (20 small... -
Page 19: Removing The Shelf Supports
• Clean stains with a mild detergent. Everyday Use • Clean the cavity after each use. Fat accumulation or other residue may cause fire. • Do not store food in the appliance for longer than 20 minutes. Dry the cavity only with a microfibre cloth after each use. -
Page 20: The Back Lamp
when you insert the door. Use force if The back lamp necessary. 12.5 Removing and cleaning the door glasses The lamp glass cover is at the back of the cavity. 1. Turn the lamp glass cover The door glass in your product can be counterclockwise to remove it. -
Page 21: Troubleshooting
2. Lower the drawer until it is horizontal and push it in. 13. TROUBLESHOOTING WARNING! Refer to Safety chapters. 13.1 What to do if... Problem Possible cause Remedy You cannot activate the appliance. The appliance is not connected to Check if the appliance is correctly an electrical supply or it is connec‐... -
Page 22: Energy Efficiency
14.3 Product Information Sheet and Product Information according to EU Energy Labelling and Ecodesign Regulations for Oven Supplier's name Model identification CCB6445BBB 940002962 Energy Efficiency Index 95.3 Energy efficiency class Energy consumption with a standard load, conventional mode 0.95 kWh/cycle... -
Page 23: Oven - Energy Saving
Volume 73 l Type of oven Oven inside Freestanding Cooker Mass 49.4 kg IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Meth‐ ods for measuring performance. 14.4 Oven - Energy saving Residual heat When the cooking duration is longer than 30 Following tips below will help you save... - Page 24 867363618-C-272024...
