Related Manuals for AEG CCB6741MCB
Summary of Contents for AEG CCB6741MCB

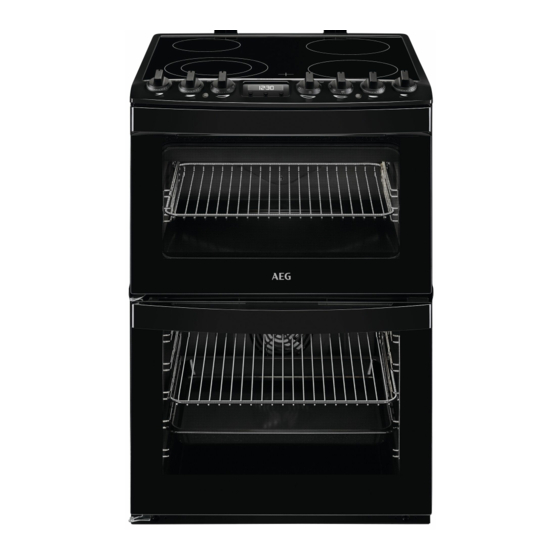

- Page 1 EN User Manual | Cooker CCB6741MCB CCB6741ACB CCB6741ACM aeg.com\register...
-
Page 2: Table Of Contents
Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, troubleshooting, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................5 3. INSTALLATION....................7 4. PRODUCT DESCRIPTION................9 5. BEFORE FIRST USE..................10 6. - Page 3 be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use.
- Page 4 • Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid. • CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
-
Page 5: Safety Instructions
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. - Page 6 The isolation device must have a contact • Do not let sparks or open flames to come opening width of minimum 3 mm. in contact with the appliance when you • Fully close the appliance door before you open the door. connect the mains plug to the mains •...
-
Page 7: Installation
• Make sure the appliance is cold. There is These lamps are intended to withstand the risk that the glass panels can break. extreme physical conditions in household • Replace immediately the door glass appliances, such as temperature, panels when they are damaged. Contact vibration, humidity, or are intended to the Authorised Service Centre. - Page 8 WARNING! The power cable must not touch the part of the appliance shaded in the illustration. Minimum distances Dimension 3.5 Covering terminal board 3.3 Levelling of the appliance • The recommended cross-section area is six square millimetres (6 mm²). • When you refit the mains terminal cover, make sure that the lower tabs are located Use small feet on the bottom of appliance to inside the bottom edge of the aperture,...
-
Page 9: Product Description
4. PRODUCT DESCRIPTION 4.1 General overview Control panel and hob Air vents for the cooling fan Heating element Lamp Shelf support, removable Cavity embossment Shelf positions 4.2 Hob overview Knobs for the hob Knob for the top oven functions Display 145 mm 180 mm Knob for the main oven functions... -
Page 10: Before First Use
5. BEFORE FIRST USE 5.2 Setting the time WARNING! You must set the time before you operate the Refer to Safety chapters. oven. 5.1 Initial preheating and cleaning Preheat both empty appliances before the Only the top oven works without the set first use and contact with food. -
Page 11: Hob - Hints And Tips
To activate the outer ring: turn the knob The indicator appears when a cooking zone is hot, but it does not function if mains power clockwise through a light resistance to is disconnected. Then turn the knob counterclockwise to the correct heat setting. -
Page 12: Hob - Care And Cleaning
Heat setting Use to: Time Hints (min) Keep cooked food warm. as neces‐ Put a lid on the cookware. sary 1 - 2 Hollandaise sauce; melt: butter, choco‐ 5 - 25 Mix from time to time. late, gelatine. Solidify: fluffy omelettes, baked eggs. 10 - 40 Cook with a lid on. -
Page 13: Oven - Daily Use
• Remove shiny metallic discoloration: use a solution of water with vinegar and clean the glass surface with a cloth. 9. OVEN - DAILY USE WARNING! Turbo grilling Refer to Safety chapters. To roast large meat joints or poultry with bones on one shelf position. - Page 14 9.5 Cooling fan 2. Turn the knob for the temperature to select a temperature. When the oven operates, the cooling fan 3. To deactivate the oven turn the knob for turns on automatically to keep the surfaces of the top / main oven functions to the off the oven cool.
-
Page 15: Oven - Clock Functions
1. Put the trivet into the deep pan. Make 1. Put the trivet into the deep pan. Make sure the supports of the wire shelf point sure the supports of the wire shelf point down. 2. Put the deep pan into the oven on the 2. -
Page 16: Oven - Hints And Tips
10.3 Clock functions Clock function Application TIME OF DAY To set, change or check the time of day. Only the top oven works without the set time. DURATION To set how long the oven works. The function works only for the main oven. MINUTE MINDER To set a countdown. - Page 17 11.1 Moist fan baking Bread and pizza Food Temperature (°C) Time (min) Shelf position Buns 25 - 35 Frozen pizza 350 g 25 - 35 Cakes in baking tray Food Temperature (°C) Time (min) Shelf position Swiss roll 20 - 30 Brownie 30 - 40 Cakes in tin...
- Page 18 Vegetarian Food Temperature (°C) Time (min) Shelf position Mixed vegetables in pouch 400 g 25 - 35 Omelette 20 - 30 Vegetables on tray 700 g 25 - 35 11.2 SteamBake Bakery Food Temperature Water in the Preheating Time (min) Shelf (°C) cavity em‐...
- Page 19 Food Temperature Water in the Preheating Time (min) Shelf (°C) cavity em‐ time (min) posi‐ bossment tion (ml) Rice 15 - 25 Pasta 15 - 25 Meat 15 - 25 Roasting Food Tempera‐ Water in the Preheating Time (min) Shelf ture (°C) cavity em‐...
-
Page 20: Oven - Care And Cleaning
Food Function Tempera‐ Time (min) Accesso‐ Shelf po‐ ture (°C) ries sition Fatless sponge cake, 1 tin True fan cooking 25 - 35 Grid (ø 26 cm) on the grid Fatless sponge cake, 1 tin True fan cooking 30 - 40 Grid 1 / 4 (ø... - Page 21 12.2 Catalytic cleaning 3. Set the oven temperature to 250 °C and let the oven operate for 1 hour. 4. When the appliance is cool, clean it with a CAUTION! soft and moist sponge. Do not clean the catalytic surface with oven sprays, soap or other cleaning 12.5 Cleaning the cavity agents.
- Page 22 12.8 Removing and cleaning the door glasses - main oven The door glass in your product can be different in type and shape from the example you see in the image. The number of glasses can also be different. 1. Push the door trim at one side to remove Install the shelf supports in the opposite sequence.
-
Page 23: Troubleshooting
2. Clean the glass cover. The back lamp 3. Replace the oven lamp with a suitable 300 °C heat-resistant oven lamp. Use the same oven lamp type. The lamp glass cover is at the back of 4. Install the glass cover. the cavity. -
Page 24: Energy Efficiency
14. ENERGY EFFICIENCY 14.1 Product Information according to EU and UK Ecodesign Regulations for Hob Model identification CCB6741MCB CCB6741ACB CCB6741ACM Type of hob Hob inside Freestanding Cooker Number of cooking zones Heating technology... - Page 25 • Put the cookware directly in the centre of the cooking zone. 14.3 Product Information Sheet and Product Information according to EU and UK Energy Labelling and Ecodesign Regulations for Oven Supplier's name CCB6741MCB 948904353 Model identification CCB6741ACB 948904362 CCB6741ACM 948904363 Top oven: 105.6 Energy Efficiency Index Main oven: 95.3...
-
Page 26: Environmental Concerns
Keep food warm Moist fan baking Choose the lowest possible temperature Function designed to save energy during setting to use residual heat and keep the food cooking. warm. 14.5 Product Information for power consumption and maximum time to reach applicable low power mode Power consumption in standby 0.8 W Maximum time needed for the equipment to automatically reach the applicable low power mode... - Page 28 867364064-A-252024...
