Operation check

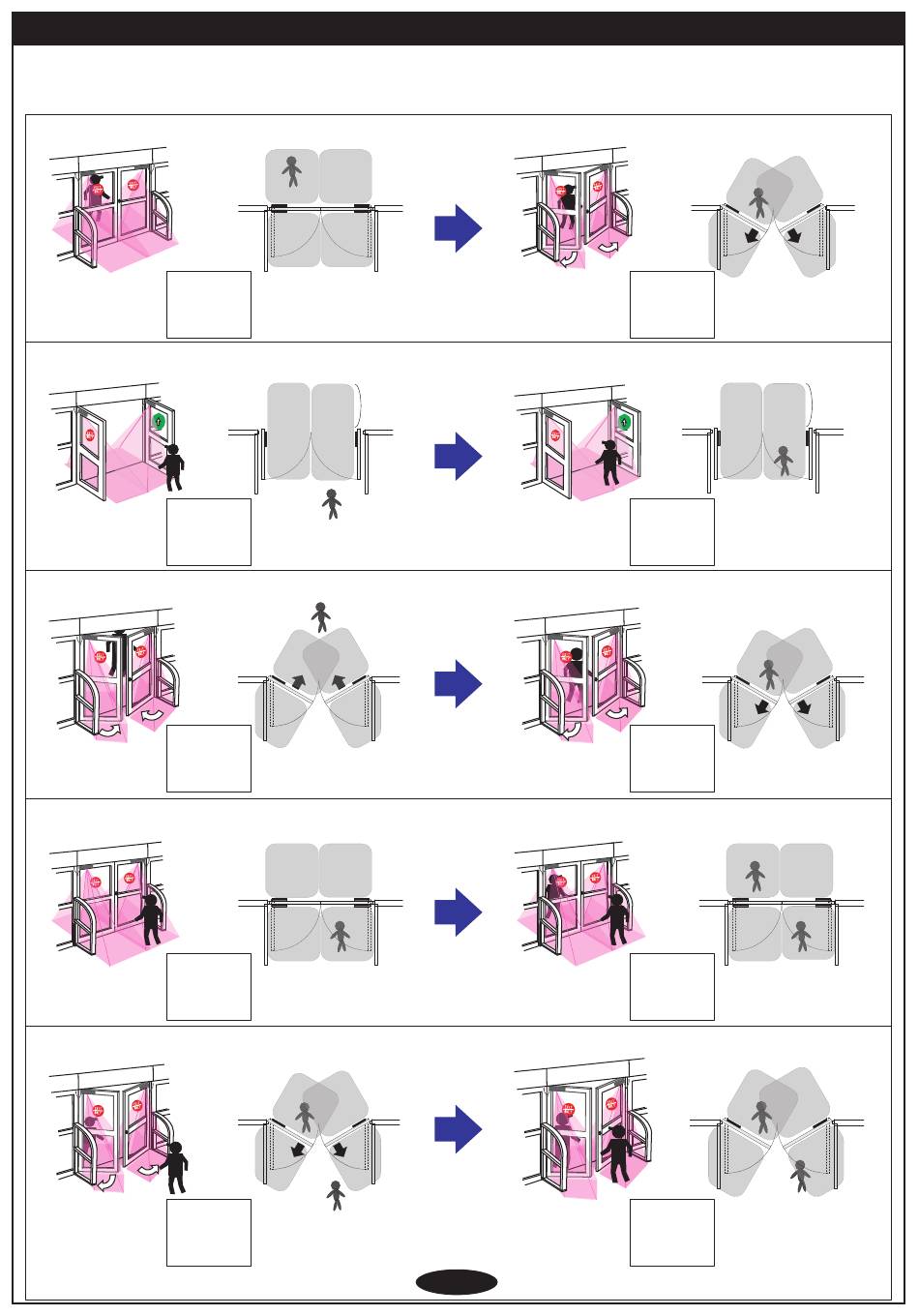

Before leaving the site, check five items in the right table.
Entering to approach side at full closed position.
RELAY OUTPUT
ACTIVATE
SAFETY
STALL
Entering to the door at full open position.
RELAY OUTPUT
ACTIVATE
SAFETY
STALL
Entering to approach side during closing cycle.
RELAY OUTPUT
ACTIVATE
SAFETY
STALL
Entering to swing side at full closed position.
RELAY OUTPUT
ACTIVATE
SAFETY
STALL
Entering to swing side during opening cycle.
RELAY OUTPUT
ACTIVATE
SAFETY
STALL
: ON
: OFF
: OFF
Active area
: ON
: OFF
: OFF
: OFF
: OFF
: OFF
: OFF
: ON
: ON
: ON
: OFF
: OFF
Doors open.
Doors stay opened.
Doors start re-opening.
Doors do not open.
Doors stall.
NOTE
Once the door reverses, swing side door will be active again.
1-7
RELAY OUTPUT
ACTIVATE : ON
SAFETY : OFF
STALL : OFF
RELAY OUTPUT
ACTIVATE : ON
SAFETY : OFF
STALL : OFF
RELAY OUTPUT
ACTIVATE : ON
SAFETY : OFF
STALL : OFF
RELAY OUTPUT
ACTIVATE : ON
SAFETY : ON
STALL : ON
RELAY OUTPUT
ACTIVATE : ON
SAFETY : ON
STALL : ON
Active area
