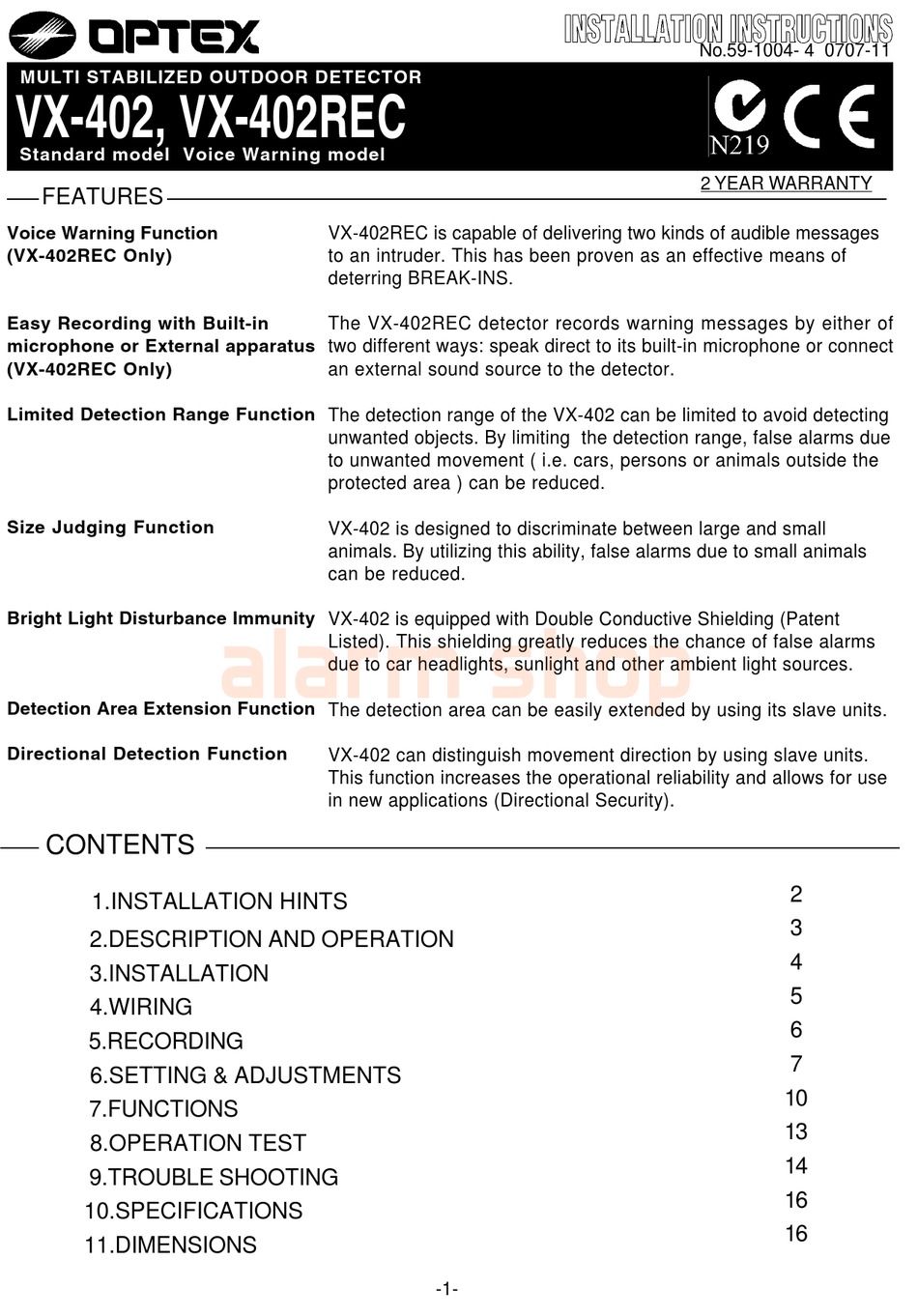

MULTI STABILIZED OUTDOOR DETECTOR
VX-402, VX-402REC
Standard model Voice Warning model
FEATURES
Voice Warning Function
(VX-402REC Only)
Easy Recording with Built-in
Microphone or External apparatus
(VX-402REC Only)
Limited Detection Range Function
Size Judging Function
Bright Light Disturbance Immunity
CONTENTS
3.INSTALLATION
6.SETTING & ADJUSTMENTS
VX-402REC is capable of delivering two kinds of audible messages
to an intruder. This has been proven as an effective means of
deterring BREAK-INS.
The VX-402REC detector records warning messages by either of
two different ways: speak direct to its built-in microphone or connect
an external sound source to the detector.
The detection range of the VX-402 can be limited to avoid detecting
unwanted objects. By limiting the detection range, false alarms due
to unwanted movement ( i.e. cars, persons or animals outside the
protected area ) can be reduced.
VX-402 is designed to discriminate between large and small
animals. By utilizing this ability, false alarms due to small animals
can be reduced.
alarm shop
VX-402 is equipped with Double Conductive Shielding (Patent
Listed). This shielding greatly reduces the chance of false alarms
due to car headlights, sunlight and other ambient light sources.
The detection area can be easily extended by using its slave units.
VX-402 can distinguish movement direction by using slave units.
This function increases the operational reliability and allows for use
in new applications (Directional Security).
-1-
No.59-1004- 4 0707-11
2 YEAR WARRANTY
2
3
4
5
6
7
10
13
14
16
16
Advertisement
Table of Contents
Related Manuals for Optex VX-402
Summary of Contents for Optex VX-402
- Page 1 Limited Detection Range Function The detection range of the VX-402 can be limited to avoid detecting unwanted objects. By limiting the detection range, false alarms due to unwanted movement ( i.e. cars, persons or animals outside the protected area ) can be reduced.
- Page 2 0.8m-1.2m (2.7ft-4ft) 5.Avoid pointing the sensor towards moving objects 4.VX-402 is designed to protect any light disturbances. (i.e. swaying trees, bushes, flags,etc.). If moving However, too much light may cause unstable objects are unavoidable, please refer to condition with the sensor, such as;...
- Page 3 2.DESCRIPTION AND OPERATION M4 x 12 Pole Mount Bracket M4 x 6 Mounting Screw T4 x 20 Plate Cover Terminals LED Indicator Pyro Electric Sensor (Do not touch) alarm shop Lock Screw Speaker (VX-402REC only) Plate Lock Screw DIP Switch A Lens Holder Sensitivity Select (Page 9)
- Page 4 3.INSTALLATION 3-1.Before the Installation Loosen the lock screw and Loosen the plate lock screw Remove the plate by sliding it down remove the cover. [about 10mm (0.4")]. and away from the unit base. 3-2.Wall Mount Wiring Hole Wiring Sponge Pad ( Terminals) Wiring Hole Plate Lock...
- Page 5 Power wires should not exceed the following lengths. IMPORTANT • Do not remove jumper while VX-402 VX-402REC WIRE GAUGE slave is not connected. Otherwise, VX-402 series continue to give the alarm. AWG 22(0.33m áu ) AWG 22(0.33mm 200m(670ft) 400m(1330ft) 110m(370ft) 230m(770ft) •...
- Page 6 5.RECORDING The VX-402REC detector records warning messages by either of two different ways: speak direct to its built-in microphone or connect an external sound source (tape-recorder or computer etc.) to the detector. 5-1.Description for Recording Recording Start Switch Recording Level Indicator Voice Mode Switch Microphone Day/Night Message:...
- Page 7 6.SETTING & ADJUSTMENTS 6-1.Detection Length Adjustment Press and slide the Detection Length Adjustment Switch to the desired position. Detection Length Adjustment Switch POSITION A Side view of detection pattern (3.3ft) 10 12 m 40 (ft) Adjustable zone. POSITION B (3.3ft) 10 12 m Length of Lower Detecion Area decides 40 (ft)
- Page 8 6-2.Area Angle Adjustment Top view 45° Adjustable 45゜ Active 90゜ 45゜ detection fingers. Area angle is 90° with 7 fingers Hold the pyro electric unit by 15° Turn optical cylinder. and turn it to the desired 45° Adjustable Angle moves by 15° per notch. direction (15°...
- Page 9 Weatherproof •Speaker with amplifier can not be used. •Wiring length AWG18(0.83mm ): 10 m 6-6.DIP Switch Setup DIP SWITCH A DIP SWITCH B VX-402 VX-402 SLAVE DETECTABLE DIRECTION: :LED INDICATOR -> -> S L A V E VX-402 ALARM OUTPUT:...
- Page 10 7.FUNCTIONS 7-1.Two Detectors Mode The functions of the VX-402 series can be extended by connecting components such as outdoor PIR's, active IR beams or magnetic contacts to the AUX INPUT terminal. Wiring Diagram To Control Panel From POWER SUPPLY (9.5-18VDC)
- Page 11 •In case the VX series are used for both master and slave unit, use the slave unit with following setting mode. VX-402 : Set the Direction Detection mode OFF. VX-402REC : Do not set the voice mode switch as a pre-warning mode.
- Page 12 7-2.Day/Night Message Mode (VX-402REC only) The detector will automatically change messages from that for the daytime to that for the night-time and vice versa. Daytime : Message A Night-time: Message B Warning! Caution! (Message B) (Message A) Voice Mode Switch 7-3.Arm/Disarm Mode (VX-402REC only) The detector will sound different messages when it is set for the armed mode or disarmed mode.
- Page 13 B Approx.12m(40ft) VX-402 has a multi-level detection pattern (from side view). A heat source beyond the detection area may cause the detector a false alarm by reflecting off the ground. Examples of reflective ground is water (puddle), wet road, smooth surface concrete and asphalt road.
- Page 14 9.TROUBLE SHOOTING PROBLEM DESCRIPTION PROBABLE CAUSE REMEDY Incorrect power supply voltage. Set supply voltage for a range of 9.5 to 18 VDC. Turn LED switch ON. LED does not light. LED switch is turned OFF. (See section 6-6 on page 9.) Set switch A-4 for Day/Night and see if it works.
- Page 15 PROBLEM DESCRIPTION PROBABLE CAUSE REMEDY Reset volume for an appropriate level. Volume controller is set for Low. (See section 6-5 on page 9.) Wire the voice control input correctly. No message at all. Voice control input is not wired correctly. (See section 4 on page 5.) Set DIP switch B-3 (Message A) and Set DIPswitch B-3 and DIP switch B-4...
- Page 16 10.SPECIFICATIONS MODEL VX-402 VX-402REC Detection Method Passive Infrared Coverage 12m(40ft)90° wide Detection Zones 14zones Mounting Height 0.8-1.2m(2.7-4ft) Sensitivity 2.0°C(3.6°F) at 0.6m/s Detectable Speed 0.3-1.5m/s(1-5ft/s) Power Input 9.5-18VDC Normal 25mA Max 28mA Normal 25mA Max 180mA Current Draw Normal 10mA Max 35mA...
