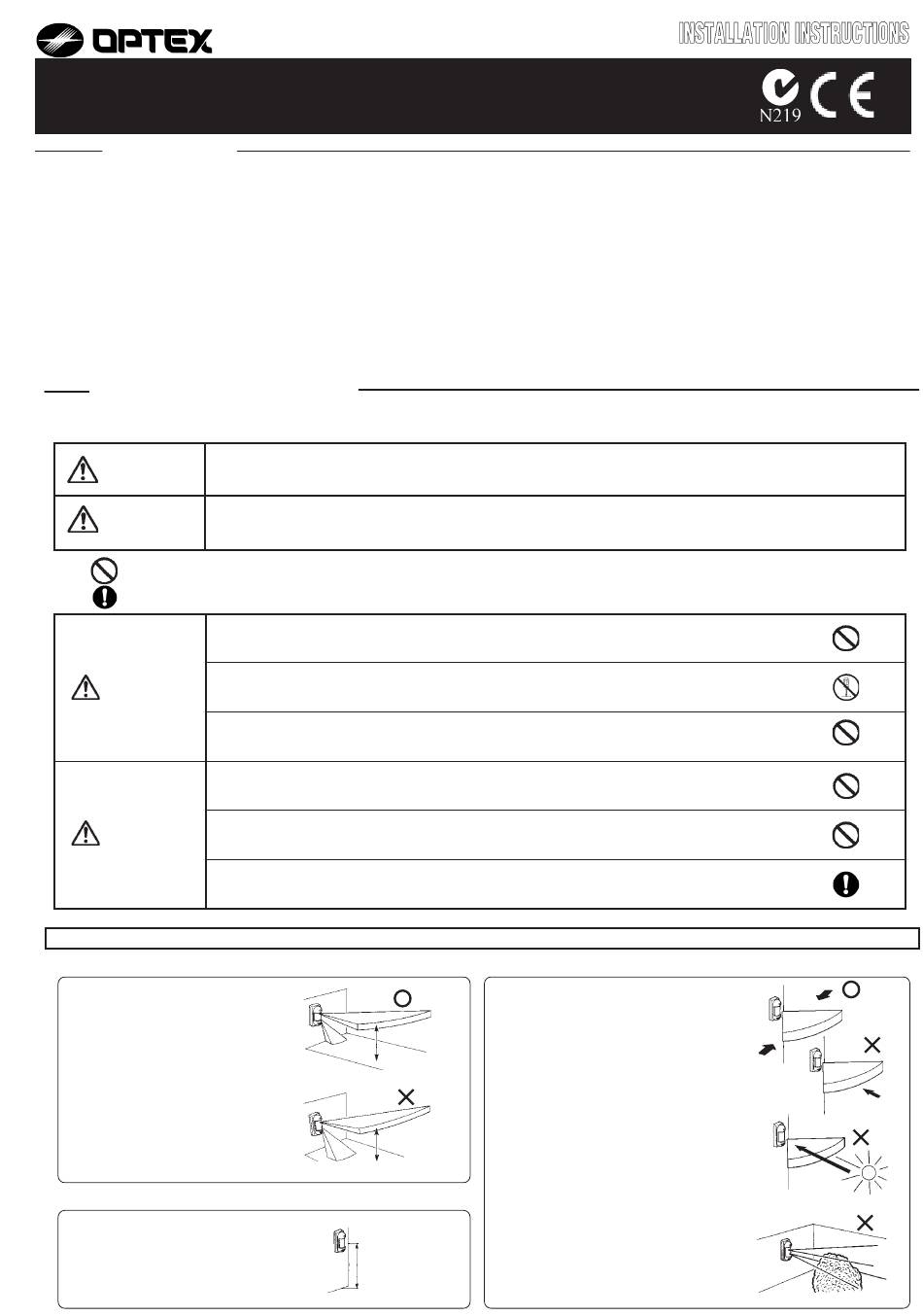

Optex VX-402R Installation Instructions Manual

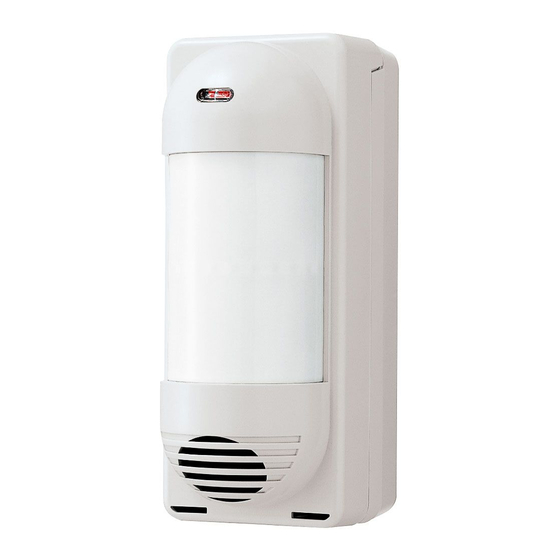

MULTI STABILIZED OUTDOOR DETECTOR
VX-402R VX-402R
BATTERY OPERATED BATTERY OPERATED
FEATURES
·Low Current Draw
·Battery Saving Circuit
·Operates on Wide Range of Power
·Back box for a wireless transmitter
·Limited Detection Range Function
·Size Judging Function
·Bright Light Disturbance Immunity
Safety-Related Precautions
·Before installation,make sure to read this instruction manual carefully for safe and effective product operation.
·After reading this installation manual, make sure to keep it in a convenient place for future use.
Warning
Caution
This icon indicates actions to be avoided. Details of the actions to be avoided are written beside or near icon.
This icon indicates instructions that should be strictly followed.
Warning
Caution
1.INSTALLATION HINTS
Select a place for installing the VX-402R while keeping the following points in mind.
1.Perpendicular Installation
Install the sensor perpendicular to the
ground to making upper detection area
parallel to the ground.
If the sensor is installed with some angle
to the ground, operational reliability of
the sensor may be decreased.
2. Installation height
Installation height is
0.8m-1.2m (2.7ft-4ft)
10uA (In Standby).
The alarm circuit will not be activated untill there is a 5 or 120 seconds period of inactivity in the pattern area.
3-9V Alkaline Battery or Lithium Battery.
Backbox can conceal a wireless transmitter circuitboad (W63mm x H140mm x D31mm).
The detection range of the VX-402R can be limited to avoid detecting unwanted objects. By limiting the
detection range, false alarms due to unwanted movement ( i.e. cars, persons or animals outside the
protected area ) can be reduced.
VX-402R is designed to discriminate between large and small animals. By utilizing this ability, false alarms
due to small animals can be reduced.
VX-402R is equipped with Double Conductive Shielding (Patent Listed). This shielding greatly reduces the
chance of false alarms due to car headlights, sunlight and other ambient light sources.
This icon denotes a situation involving the risk of serious injury or even death, if the
warning given is ignored.
Denotes a situation involving the risk of serious injury or damage to property if
the warning is ignored.
Never use this product for any application except purpose for detecting
moving target such as a human or a car. In addition, never use for any
activation for a shutter or other. It may cause hazards.
Never attempt to disassemble or modify the product, which increases the risk
of fire or damage of the product.
Never attempt to connect the terminals to units which reguire higher power
supply or current draw than its rating. It increases the risk of fire or damage
to the product.
To avoid the risk of damaging the product, never touch the main body of the
product with wet hands. (Also, if the product is wet after rain do not touch it)
Avoid applying water in directly from brackets, houses, or otherwise splash-
ing water directly onto the product. It increases the risk of damaging the
product.
Clean and inspect the device periodically for safe operation.
If any defect is detected, ask your local supplier to repair the device.
Parallel
0.8m-1.2m
3.Detection Area Setup
The detection area has directionality.
Mount the detector so that it must be
passed in order to gain entry.
VX-402R is designed to protect any light
disturbances.
However , too much light such as; strong
sunlight directed or reflected exactly into the
sensor's field of view may cause unstable
operation. It is recommended to avid installing
in such a place.
Avoid pointing the sensor towards moving
objects (i.e. swaying trees, bushes,
flags,etc.).
If moving objects are unavoidable, please
refer to TROUBLE SHOOTING reference
for proper installation.
No.59-1048-1 0209-18
2 YEAR WARRANTY
