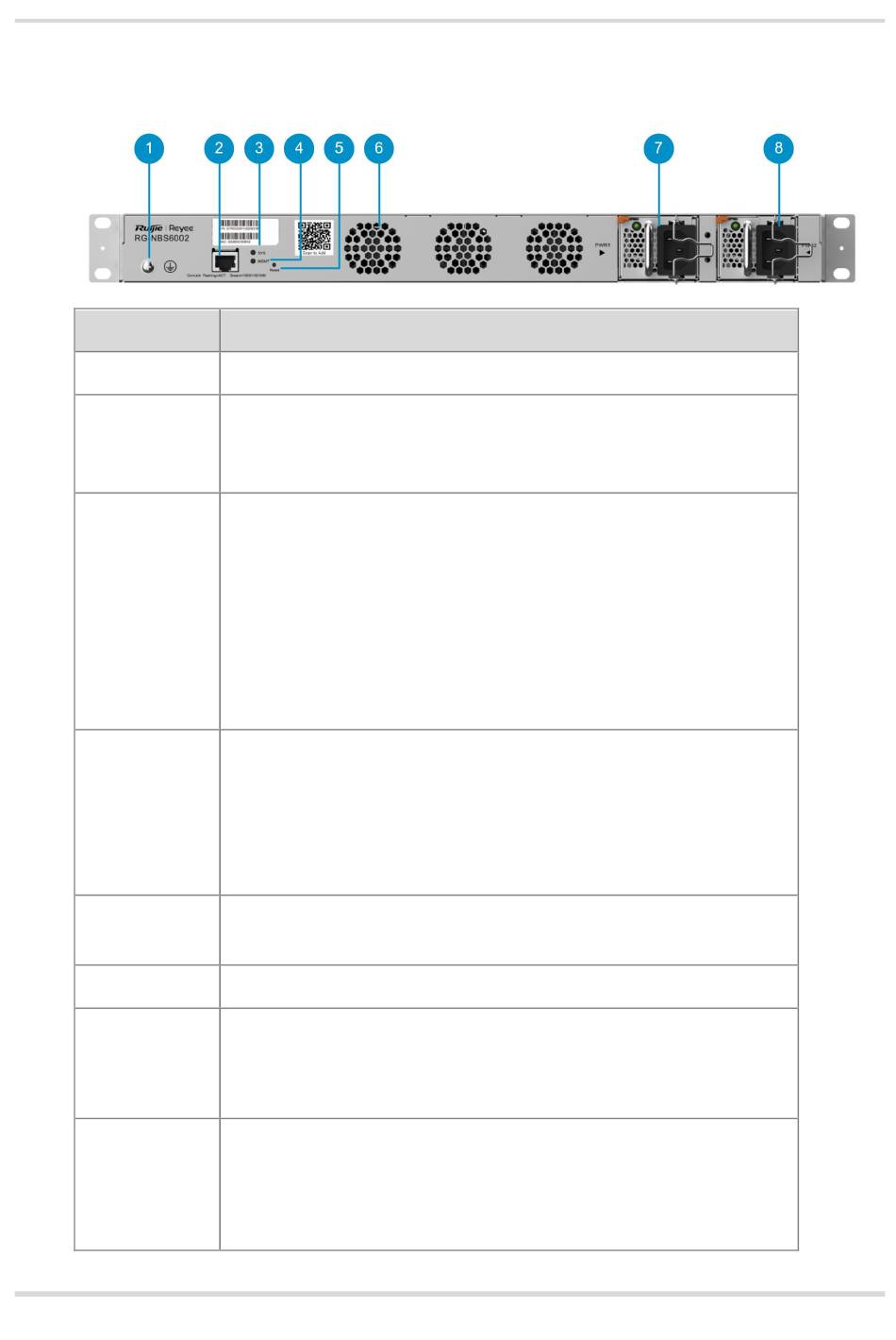

Figure 1-3 Rear Panel of an RG-NBS6002 Switch
Item
Grounding post
MGMT port
System indicator
(SYS)
Management port
indicator
Reset button
Fan module
Power supply
module
Power supply
module indicator
Description
Used to fasten the ground cable.
10/100/1000Base-T adaptive Ethernet port. The port uses an RJ-45
connector. The management port is used for configuration and software
upgrade.
● Solid green: The system is initialized.
● Blinking green (rapidly): The system is starting up.
● Blinking yellow: The temperature reaches the warning value or you are
unable to read the temperature. A service module is inserted in hot
swapping mode.
● Blinking red: A device fault occurs, which causes system or module failure
or causes device damage if the system continues to run.
The power supply module is faulty or inserted without a cable.
Off: The switch is not powered on.
10/100/1000Base-T adaptive Ethernet port status indicator. The statuses are
as follows:
● Solid green: The port has made a successful 1000 Mbps link.
● Blinking green: The port is sending or receiving traffic at 1000 Mpbs.
Off: No link is detected for the port.
After the reset button is pressed, the system is reset and restarts based on the
original software version
Three fan modules are used for heat dissipation.
Two power supply module slots PWR1 and PWR2 are available.
Insert power supply modules and then connect AC power cords.
1+1 power redundancy is supported.
Power supply module status indicator (PWR1 and PWR2). The statuses are
as follows:
● Solid green: Power supply is normal.
● Solid red: Power supply is abnormal.
(Note)
.
