Hardware Installation and Reference Guide
Rear View
1.1.3
Ports - Front Panel

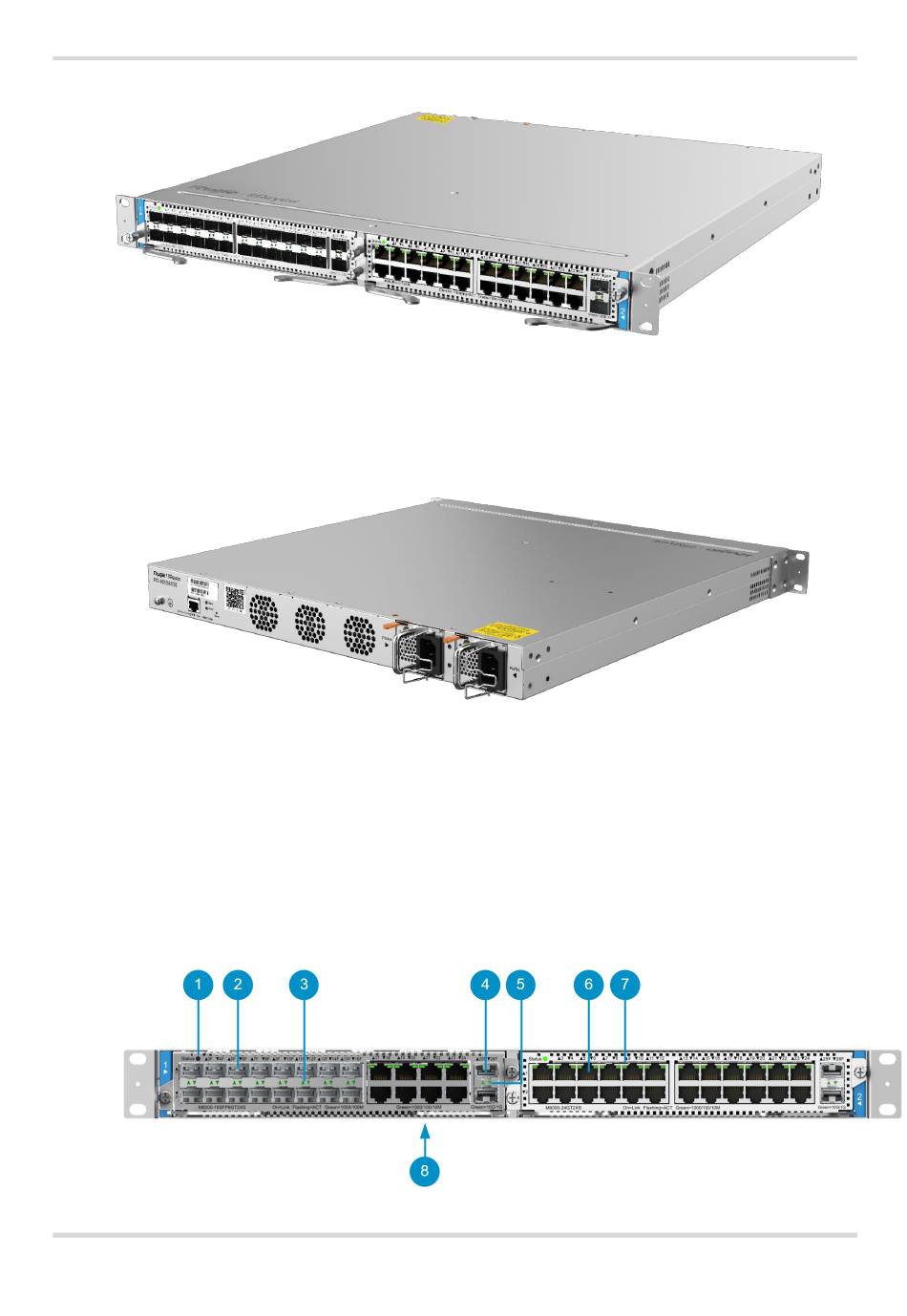

Figure 1-2 shows the front panel of an RG-NBS6002 switch. For the detailed meanings of numbers 1 to 7, see
the following table.
Figure 1-2
Front Panel of an RG-NBS6002 Series Switch (Service Module Combination of M6000-
16GT8SFP2XS and M6000-16SFP8GT2XS)
3
Product Overview
