Summary of Contents for Avalue Technology EMX-H610P

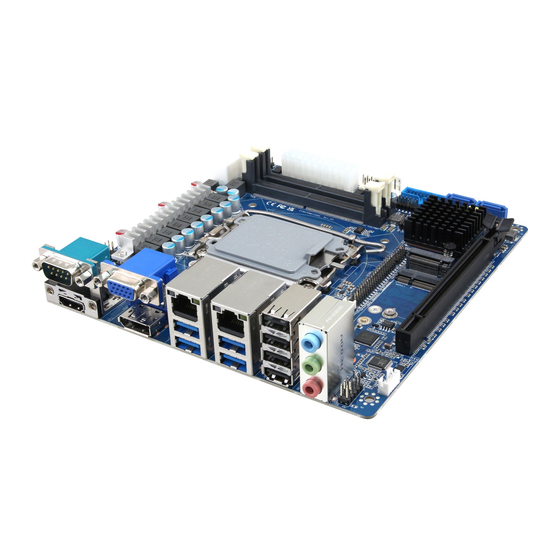

- Page 1 EMX-H610P Intel® 12th/13th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, supports LGA 1700 CPU Mini ITX motherboard User’s Manual Ed – 23 May 2023 Part No. E2047EM6100R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
- Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 EMX-H610P User’s Manual...
-
Page 5: Table Of Contents
2.3.20 Serial port connector (4COM1)...................... 29 2.3.21 JESPI1 connector (JESPI1) ......................30 3.BIOS Setup ........................31 Introduction ......................32 Starting Setup ......................32 Using Setup ......................33 Getting Help ......................34 In Case of Problems ....................34 EMX-H610P User’s Manual... - Page 6 3.6.3.2.1.1 M.2 KeyB (PCI-E Port 3~4) ....................55 3.6.3.2.1.2 M.2 KeyE (PCI-E Port 5~6) ....................56 3.6.3.2.1.3 Intel I225/I226 LAN Chip (PCI-E Port 7) ................57 3.6.3.2.1.4 Intel I225/I226 LAN Chip (PCI-E Port 8) ................58 6 EMX-H610P User’s Manual...
- Page 7 Launch EFI Shell from filesystem device ................65 4. Drivers Installation....................... 66 Install Chipset Driver ....................67 Install VGA Driver ....................68 Install ME Driver ...................... 69 Install Audio Driver ....................70 Install LAN Driver ....................71 5. Mechanical Drawing ....................73 EMX-H610P User’s Manual...
-
Page 8: Getting Started
1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x EMX-H610P motherboard 2 x SATA cables 1 x Backplane ... -
Page 9: Document Amendment History
User’s Manual 1.3 Document Amendment History Revision Date Comment May 2023 Avalue Initial Release EMX-H610P User’s Manual... -
Page 10: Manual Objectives
We strongly recommend that you study this manual carefully before attempting to set up EMX-H610P or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance. -
Page 11: System Specifications
1 x DP++ HDMI 1 x HDMI 2.0b 1 x VGA Onboard I/O COM 2: Support RS232/422/485 selected by BIOS selection 1 x 2 x 5 pin, pitch 2.00mm connector for COM 2 support RS232/RS422/485 connector EMX-H610P User’s Manual 11... - Page 12 Realtek ALC888S (co-lay ALC897) HD Audio Decoding Controller RealTek ALC105 Stereo Class-D 2W4Ω Amplifier Other Line-in, Mic-in, Line-out Ethernet LAN Chipset 2 x Intel® i226-LM 2.5 Gigabit Controller LAN Spec. 2 x 2.5 Gigabit Ethernet Mechanical & Environmental Specification 12 EMX-H610P User’s Manual...
- Page 13 Note: Windows 11 is not a LTSC release and will be supported on the Intel CCG Client roadmap. OS Information NEX Network & Edge customers may install non-LTSC releases(e.g. Win11) on NEX Network & Edge processors. 2. Win10 64bit UEFI 3. Linux Note: Specifications are subject to change without notice. EMX-H610P User’s Manual 13...
- Page 14 EMX-H610P User’s Manual Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of EMX-H610P. 14 EMX-H610P User’s Manual...
-
Page 15: Hardware Configuration
User’s Manual 2. Hardware Configuration EMX-H610P User’s Manual 15... -
Page 16: Product Overview
EMX-H610P User’s Manual 2.1 Product Overview 16 EMX-H610P User’s Manual... -
Page 17: Jumper And Connector List
4 x 1 wafer, pitch 2.54mm (with smart fan function supported) CPU fan connector 4 x 1 wafer, pitch 2.54mm CPUFAN1 Auxiliary Panel connector 4 x 2 header, pitch 2.00mm JAUXP1 SPI1 Miscellaneous setting connector 4 x 2 header, pitch 2.00mm EMX-H610P User’s Manual 17... - Page 18 4 x 2 header, pitch 4.20mm ATX12V COM-HDMI1 COM-HDMI connector SATA1/2 Serial ATA connector SODIMM1/2 260-pin DIMM slot 1/2 M2KE1 M.2 Key E CPU connector VGA1 VGA connector DP connector USB2X1 USB connector REAR1 PS2+USB connector 18 EMX-H610P User’s Manual...
-
Page 19: Setting Jumpers & Connectors
User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Clear CMOS (JCMOS1) Protect* Clear CMOS * Default 2.3.2 AT/ATX Power Mode Select (JSATX1) ATX* * Default EMX-H610P User’s Manual 19... -
Page 20: Cpu Tdp (Watts) (Jcfgid1)
EMX-H610P User’s Manual 2.3.3 CPU TDP (Watts) (JCFGID1) Config ID1 * Config ID0 * Default 2.3.4 M2KB1 Voltage setting (JM2KB1) +3.8V* +3.38V * Default 20 EMX-H610P User’s Manual... -
Page 21: General Purpose I/O Connector (Dio1)
User’s Manual 2.3.5 General purpose I/O connector (DIO1) Signal PIN PIN Signal 5V_SMB_CLK 5V_SMB_DATA 2.3.6 ATX Power connector (ATXPWR1) Signal PIN PIN Signal +3.3V +3.3V +3.3V ATX_PSON# ATX20_PWROK +V5A_SB +12V EMX-H610P User’s Manual 21... -
Page 22: Jpc Connector (Jpc1)
EMX-H610P User’s Manual 2.3.7 JPC connector (JPC1) Signal PIN PIN Signal VCCCORE_nPMALERT VCCCORE_PMSDA VCCCORE_PMSCL +V3P3_EXT 2.3.8 Miscellaneous setting connector (SPI1) Signal PIN PIN Signal + V3.3A_SPI SPI_CS0# SPI_CLK SPI_MISO SPI_MOSI SPI_HOLD# 22 EMX-H610P User’s Manual... -
Page 23: Speaker Connector (Spk1)
User’s Manual 2.3.9 Speaker connector (SPK1) Signal LSPK+ LSPK- RSPK+ RSPK- 2.3.10 LCD Inverter connector (JBKL1) Signal +12V LVDS_BKLTEN LVDS_BKLADJ EMX-H610P User’s Manual 23... -
Page 24: Front Panel Connector (Jfp1)
EMX-H610P User’s Manual 2.3.11 Front Panel connector (JFP1) Signal PIN PIN Signal HDD_LED+ PWR_LED+ HDD_LED- PWR_LED- SYS_RST# PWRBTN# 2.3.12 CPU fan connector (CPUFAN1) Signal +12V CPU_R_FANIN CPU_FANOUT 24 EMX-H610P User’s Manual... -
Page 25: System Fan Connector (Sysfan1)
User’s Manual 2.3.13 System fan connector (SYSFAN1) Signal SYS_FANOUT SYS_R_FANIN +12V 2.3.14 Serial port connector (COM2) Signal PIN PIN Signal NDCDB# NRXDB NTXDB NDTRB# NDSRB# NRTSB# NCTSB# NRIB# EMX-H610P User’s Manual 25... -
Page 26: Auxiliary Panel Connector (Jauxp1)
EMX-H610P User’s Manual 2.3.15 Auxiliary Panel connector (JAUXP1) Signal PIN PIN Signal FRONT_LAN1 FRONT_LAN1_ACT _LINK100_1000# FRONT_LAN1 _LINK2500# FRONT_LAN1 FRONT_LAN2_ACT _LINK100_1000# FRONT_LAN1 _LINK2500# 2.3.16 Audio connector (FAUD1) Signal PIN PIN Signal LINE2_JD LINE2_L SENSE_B_JD3 MIC2_JD LINE2_R AUD_FRONT_DET MIC2_R MIC2_L 26 EMX-H610P User’s Manual... -
Page 27: Power Connector (Atx12V1)
Power connector (ATX12V1) Signal PIN PIN Signal +V12S_CPU +V12S_CPU +V12S_CPU +V12S_CPU ATX_2X4+DET 2.3.18 USB 3.0 connector (JHUSB1) Signal PIN PIN Signal +V5A_CY_USB CYUSB3_RXN4 CYUSB3_RXN3 CYUSB3_RXP4 CYUSB3_RXP3 CY_USB3_TXN3 16 CY_USB3_TXN4 CY_USB3_TXP3 15 CY_USB3_TXP4 CY_USB3_DN3 CY_USB3_DN4 CY_USB3_DP3 CY_USB3_DP4 EMX-H610P User’s Manual 27... -
Page 28: Lvds Connector (Lvds1)
LVDS connector (LVDS1) Signal PIN PIN Signal LVDS_VDD12V LVDS_VDD12V LVDS_CLK2N LVDS_CLK1N/EPAUXN LVDS_CLK2P LVDS_CLK1P/EPAUXP LVDS_DATAN7 LVDS_DATAN6 LVDS_DATAP7 LVDS_DATAP6 LVDS_DATAN5 LVDS_DATAN4 LVDS_DATAP5 LVDS_DATAP4 LVDS_DATAN3 LVDS_DATAN2/eDPN0 LVDS_DATAP3 LVDS_DATAP2/eDPP0 LVDS_DATAN1/eDPN1 11 LVDS_DATAN0 LVDS_DATAP1/eDPP1 10 LVDS_DATAP0/eDP_HPD LVDS_VDD33V LVDS_VDD5V LVDS_VDD33V LVDS_VDD5V LVDS_VDD33V LVDS_VDD5V 28 EMX-H610P User’s Manual... -
Page 29: Serial Port Connector (4Com1)
Signal PIN PIN Signal NDCDC# NRXDC NTXDC NDTRC# NDSRC# NRTSC# NCTSC# NRIC# NDCDD# NRXDD NTXDD NDTRD# NDSRD# NRTSD# NCTSD# NRID# NDCDE# NRXDE NTXDE NDTRE# NDSRE# NRTSE# NCTSE# NRIE# NDCDF# NRXDF NTXDF NDTRF# NDSRF# NRTSF# NCTSF# NRIF# EMX-H610P User’s Manual 29... -
Page 30: Jespi1 Connector (Jespi1)
EMX-H610P User’s Manual 2.3.21 JESPI1 connector (JESPI1) Signal PIN PIN Signal ESPI_ IO0 +V3P3A ESPI_ IO1 PLT_RST#_BUF ESPI_ IO2 ESPI_CS# ESPI_ IO3 ESPI_DEG_CLK ESPI_CS1# ESPI_RST# ESPI_ALERT# 30 EMX-H610P User’s Manual... -
Page 31: Bios Setup
User’s Manual 3.BIOS Setup EMX-H610P User’s Manual 31... -
Page 32: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP 32 EMX-H610P User’s Manual... -
Page 33: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. EMX-H610P User’s Manual 33... -
Page 34: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 34 EMX-H610P User’s Manual... -
Page 35: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 3.6.1.1 System Language This option allows choosing the system default language. EMX-H610P User’s Manual 35... -
Page 36: System Date
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 36 EMX-H610P User’s Manual... -
Page 37: Cpu Configuration
Number of P-cores to enable in each processor package. Note: Number of Cores and E-cores are Active Processor Cores looked at together. When both are {0,0}, Pcode will enable all cores. Disabled Hyper-Threading Enable or Disable Hyper-Threading Technology. Enabled[Default], EMX-H610P User’s Manual 37... -
Page 38: Performance-Core Information
Enable/Disable Intel(R) Speed Shift Technology Intel(R) Speed Shift Disabled support. Enabling will expose the CPPC v2 interface to Technology Enabled[Default], allow for hardware controlled P-states. Disabled Enable/Disable processor Turbo Mode (requires Turbo Mode Enabled[Default], EMTTM enabled too). AUTO means enabled. 38 EMX-H610P User’s Manual... -
Page 39: Pch-Fw Configuration
Enable/Disable CPU Power Management. Allows CPU C states Enabled[Default], to go to C states when it’s not 100% utilized 3.6.2.2 PCH-FW Configuration 3.6.2.2.1 Firmware Update Configuration Item Option Description Disabled[Default], Me FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled EMX-H610P User’s Manual 39... -
Page 40: Trusted Computing
O.S. will not show Security Device. TCG EFI protocol Enable[Default] and INT1A interface will not be available. 3.6.2.4 ACPI Settings Item Options Description Enable ACPI Auto Disabled[Default], Enables or Disables BIOS ACPI Auto Configuration Enabled Configuration. 40 EMX-H610P User’s Manual... -
Page 41: Super Io Configuration
Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME). Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF). EMX-H610P User’s Manual 41... -
Page 42: Serial Port 1 Configuration
Low: RS232/422/485 = 250Kbps High: RS232 = 3 UART Slew Rate High Mbps, RS422/485 = 20Mbps Auto[Default], Non INT+EXT R Adjust the Serial Port with internal or external INT_EXT R mode INT R termination resistors EXT R INT+EXT R 42 EMX-H610P User’s Manual... -
Page 43: Serial Port 2 Configuration
Low: RS232/422/485 = 250Kbps High: RS232 = 3 UART Slew Rate High Mbps, RS422/485 = 20Mbps Auto[Default], Non INT+EXT R Adjust the Serial Port with internal or external INT_EXT R mode INT R termination resistors EXT R INT+EXT R EMX-H610P User’s Manual 43... -
Page 44: Serial Port 3 Configuration
3.6.2.5.3 Serial Port 3 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.5.4 Serial Port 4 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 44 EMX-H610P User’s Manual... -
Page 45: Serial Port 5 Configuration
3.6.2.5.5 Serial Port 5 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.5.6 Serial Port 6 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], EMX-H610P User’s Manual 45... -
Page 46: Nct6126 H/W Monitor
/Mode 07/Mode 08 Avalue Smart Fan Mode Select: Mode 01 to Mode 20 CPU Fan Mode /Mode 09/Mode 10 Or Manual(No Smart Fan) /Mode 11/Mode 12 /Mode 13/Mode 14 /Mode 15/Mode 16 /Mode 17/Mode 18 /Mode 19/Mode 20 46 EMX-H610P User’s Manual... -
Page 47: S5 Rtc Wake Settings
Enable or disable System wake on alarm event. Select Disabled[Default], FixedTime, system will wake on the hr::min::sec Wake system from S5 Fixed Time specified. Select DynamicTime , System will wake on Dynamic Time the current time + Increase minute(s) EMX-H610P User’s Manual 47... -
Page 48: Serial Port Console Redirection
Options Description Disabled[Default], Console Redirection Console Redirection Enable or Disable. Enabled Disabled[Default], Console Redirection EMS Console Redirection Enable or Disable. Enabled 3.6.2.9 USB Configuration The USB Configuration menu helps read USB information and configures USB settings. 48 EMX-H610P User’s Manual... -
Page 49: Network Stack Configuration
Optical drives are emulated as 'CDROM' drives with no Hard Disk media will be emulated according to a drive type. CD-ROM 3.6.2.10 Network Stack Configuration Item Options Description Disabled[Default], Network Stack Enable/Disable UEFI Network Stack. Enabled EMX-H610P User’s Manual 49... -
Page 50: Nvme Configuration
EMX-H610P User’s Manual 3.6.2.11 NVMe Configuration 3.6.3 Chipset 50 EMX-H610P User’s Manual... -
Page 51: System Agent (Sa) Configuration
User’s Manual 3.6.3.1 System Agent (SA) Configuration Item Option Description Disabled VT-d VT-d capability. Enabled[Default] 3.6.3.1.1 Memory Configuration EMX-H610P User’s Manual 51... -
Page 52: Graphics Configuration
EMX-H610P User’s Manual 3.6.3.1.2 Graphics Configuration Item Option Description Auto[Default] Select which of IGFX/PEG Graphics device should be Primary Display IGFX Primary Display. PEG Slot GTT Size Select the GTT Size 8MB[Default] 3.6.3.1.3 DMI/OPI Configuration 52 EMX-H610P User’s Manual... -
Page 53: Peg Port Configuration
Control the PCI Express Root Port. Enabled Disabled[Default] Set the ASPM Level: Force L0s – Force all links to L0s State AUTO – BIOS auto configure DISABLE – ASPM Disables ASPM L0sL1 Auto[Default] PCIe Speed Gen1/Gen2/ Configure PCIe Speed Gen3/Gen4/Gen5 EMX-H610P User’s Manual 53... -
Page 54: Pch-Io Configuration
The number of milliseconds reference code will wait for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. 3.6.3.2 PCH-IO Configuration 3.6.3.2.1 PCI Express Configuration 54 EMX-H610P User’s Manual... -
Page 55: Keyb (Pci-E Port 3~4)
Gen2 Configure PCIe Speed Gen3 Gen4 The number of milliseconds reference code will wait for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. EMX-H610P User’s Manual 55... -
Page 56: Keye (Pci-E Port 5~6)
Gen2 Configure PCIe Speed Gen3 Gen4 The number of milliseconds reference code will wait for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. 56 EMX-H610P User’s Manual... -
Page 57: Intel I225/I226 Lan Chip (Pci-E Port 7)
Gen2 Configure PCIe Speed Gen3 Gen4 The number of milliseconds reference code will wait for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. EMX-H610P User’s Manual 57... -
Page 58: Intel I225/I226 Lan Chip (Pci-E Port 8)
Gen2 Configure PCIe Speed Gen3 Gen4 The number of milliseconds reference code will wait for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. 58 EMX-H610P User’s Manual... -
Page 59: Sata Configuration
Test Mode Enable/Disable (Loop Back). Disabled[Default], Disabled SATA Port Enable or Disable SATA Port Enabled[Default], Hard Disk Drive[Default], Identify the SATA port is connected to Solid State SATA Device Type Solid State Drive Drive or Hard Disk Drive. EMX-H610P User’s Manual 59... -
Page 60: Hd Audio Configuration
HDA will be unconditionally disabled Enabled = HDA Enabled[Default], will be unconditionally enabled. 3.6.3.3 Board Configuration Item Option Description Disabled Active Panel (eDP/LVDS) Active Internal LVDS(eDP->Ch7513-to-LVDS) Enabled[Default], CH7513 EDID Panel 1024x768 24/1[Default], Port1-EDP to LVDS(Chrotel 7513) Panel EDID Option Option 800x600 18/1 60 EMX-H610P User’s Manual... - Page 61 Wake Up by Ring Wake Up by Ring from S3/S4/S5 Enabled[Default], 11db 14db Amplifier Gain Amplifier Gain 19db[Default], 25db Disabled M.2 KeyB 5G Workaround Enabled/Disabled M.2 KeyB 5G Card Workaround Enabled[Default], Disabled[Default], SHOW DMI INFO SHOW DMI INFO Enabled EMX-H610P User’s Manual 61...
-
Page 62: Security
3.6.4.1 Secure Boot Item Option Description Secure Boot feature is Active if Secure Boot is Enabled, Disabled[Default], Secure Boot Platform Key(PK) is enrolled and the System is in User Enabled mode. The mode change requires platform reset 62 EMX-H610P User’s Manual... -
Page 63: Boot
Number of seconds to wait for setup activation key. Setup Prompt Timeout 65535(0xFFFF) means indefinite waiting. On[Default] Bootup NumLock State Select the keyboard NumLock state. Disabled[Default] Quiet Boot Enable or disable Quiet Boot option. Enabled Boot Option #1 Sets the system boot order EMX-H610P User’s Manual 63... -
Page 64: Save & Exit
Any changes made to BIOS settings during this session of the BIOS setup program are discarded. The setup program then exits and reboots the controller. 3.6.6.3 Restore Defaults This option restores all BIOS settings to the factory default. This option is useful if the 64 EMX-H610P User’s Manual... -
Page 65: Launch Efi Shell From Filesystem Device
User’s Manual controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. EMX-H610P User’s Manual 65... -
Page 66: Drivers Installation
EMX-H610P User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 66 EMX-H610P User’s Manual... -
Page 67: Install Chipset Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 2. Click Accept. Step 4. Complete setup. EMX-H610P User’s Manual 67... -
Page 68: Install Vga Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go Step 1. Click Next to continue installation. Step 3. Click Next. Step 2. Click Yes. Step 4. Click Finish to complete setup. 68 EMX-H610P User’s Manual... -
Page 69: Install Me Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next Step 1. Click Next to continue setup. Step 5. Click Finish to complete the setup Step 2. Click Next. EMX-H610P User’s Manual 69... -
Page 70: Install Audio Driver
All drivers can be found on the Avalue Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step1. Click Next to Install. Step 2. Select Finish to complete Installation. 70 EMX-H610P User’s Manual... -
Page 71: Install Lan Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Click Install Drivers and Software Step 4. Click Next. Step 2. Click Next to continue installation. Step 5. Click Install. EMX-H610P User’s Manual 71... - Page 72 EMX-H610P User’s Manual Step 6. Click Finish to complete setup. 72 EMX-H610P User’s Manual...
-
Page 73: Mechanical Drawing
User’s Manual 5. Mechanical Drawing EMX-H610P User’s Manual 73... - Page 74 EMX-H610P User’s Manual Unit: mm Unit: mm 74 EMX-H610P User’s Manual...
