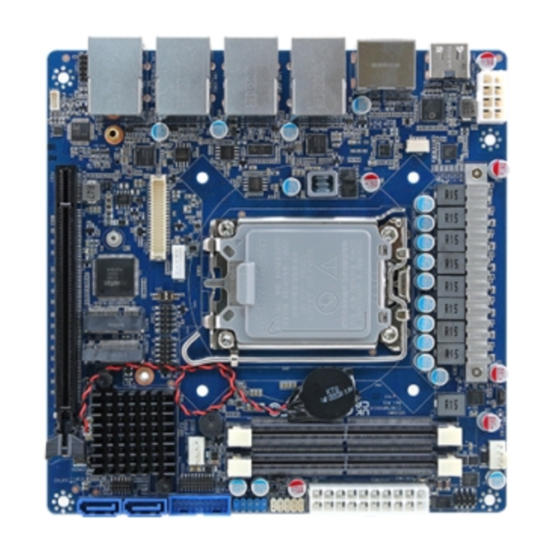

EMX-R680P
Intel® 12th/13th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron®
Processor, supports LGA 1700 CPU Mini ITX motherboard
User's Manual
Ed – 19 April 2023
st
1
Part No. E2047MR6800R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMX-R680P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology EMX-R680P

Summary of Contents for Avalue Technology EMX-R680P

  • Page 1 EMX-R680P Intel® 12th/13th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, supports LGA 1700 CPU Mini ITX motherboard User’s Manual Ed – 19 April 2023 Part No. E2047MR6800R...
  • Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
  • Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
  • Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 EMX-R680P User’s Manual...

  • Page 5: Table Of Contents

    In Case of Problems ....................32 BIOS setup ......................33 3.6.1 Main Menu ............................33 3.6.1.1 System Language ........................34 3.6.1.2 System Date ..........................34 3.6.1.3 System Time ..........................34 3.6.2 Advanced Menu ..........................34 3.6.2.1 CPU Configuration ......................... 35 EMX-R680P User’s Manual...
  • Page 6 3.6.3.2.1.5 Intel I225/I226 LAN Chip (PCI-E Port 10) ................57 3.6.3.2.1.6 M.2 KeyM 1 (PCI-E Port 21~24) .................... 58 3.6.3.2.1.7 M.2 KeyM 2 (PCI-E Port 25~28) .................... 59 3.6.3.2.2 SATA Configuration ....................... 60 3.6.3.2.3 HD Audio Configuration ......................61 6 EMX-R680P User’s Manual...
  • Page 7 Install Ethernet Driver ....................70 Install Audio Driver (For Realtek ALC888S HD Audio) ..........72 Install ME Driver ...................... 73 Install RST Driver for RAID Mode ................74 Install Serial IO Driver ..................... 75 5. Mechanical Drawing ....................76 EMX-R680P User’s Manual...

  • Page 8: Getting Started

    1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x EMX-R680P Motherboard  2 x SATA Cables  1 x I/O Shield ...

  • Page 9: Document Amendment History

    User’s Manual 1.3 Document Amendment History Revision Date Comment April 2023 Avalue Initial Release EMX-R680P User’s Manual...

  • Page 10: Manual Objectives

    We strongly recommend that you study this manual carefully before attempting to set up EMX-R680P or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance.

  • Page 11: System Specifications

    4 x USB 3.2 Gen 2 & 4 x USB 3.2 Gen 1 2 x DP++, 1 x HDMI 2.1b Onboard I/O COM 1-2: Support RS232/422/485 selected by BIOS selection 2 x 2 x 5 pin, pitch 2.00mm connector for COM1~2 support RS232/RS422/RS485 connector selected by BIOS selection. EMX-R680P User’s Manual 11...
  • Page 12 Audio Audio Codec RealTek ALC888S Audio Codec RealTek ALC105 Stereo Class-D 2W4Ω Amplifier Audio Interface Line-Out,Mic-In by Pin header Ethernet LAN Chipset 4 x Intel® i226LM 2.5 Gigabit Controller LAN Spec. 4 x 2.5 Gigabit Ethernet 12 EMX-R680P User’s Manual...
  • Page 13 6.7" x 6.7" (170mm x 170mm) larger than 410x360mm or smaller than 80x70mm) Weight 0.46kg BIOS Support: OS Information 1. Windows 10 ,Windows 11 64bit UEFI 2. Linux Note: Specifications are subject to change without notice. EMX-R680P User’s Manual 13...

  • Page 14: Architecture Overview-Block Diagram

    EMX-R680P User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of EMX-R680P. 14 EMX-R680P User’s Manual...

  • Page 15: Hardware Configuration

    User’s Manual 2. Hardware Configuration EMX-R680P User’s Manual 15...

  • Page 16: Product Overview

    EMX-R680P User’s Manual 2.1 Product Overview 16 EMX-R680P User’s Manual...

  • Page 17: Jumper And Connector List

    288-pin DIMM Slot 1/2 JAUXP1 Auxiliary Panel connector 4 x 2 header, pitch 2.00mm COM1/2 Serial Port connector 1/2 5 x 2 box header, pitch 2.00mm 10 x 2 header, pitch 1.27mm DIO1 General purpose I/O connector EMX-R680P User’s Manual 17...
  • Page 18 FAUD1 FAUD1 connector 6 x 2 header, pitch 1.27mm JESPI1 JESPI1 connector Serial ATA connector 1/2 JSATA1/2 LCD Inverter connector 5 x 1 wafer, pitch 2.00mm JBKL1 LVDS connector 20 x 2 wafer, pitch 1.25mm LVDS1 18 EMX-R680P User’s Manual...

  • Page 19: Setting Jumpers & Connectors

    User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 AT/ATX Power Mode Select (JSATX1) ATX* * Default CPU TDP (Watts) (JCFGID1) 2.3.2 Config ID1 * Config ID0 * Default EMX-R680P User’s Manual 19...

  • Page 20: General Purpose I/O Connector (Dio1)

    EMX-R680P User’s Manual 2.3.3 General purpose I/O connector (DIO1) Signal PIN PIN Signal 5V_SMB_CLK 17 18 5V_SMB_DATA 2.3.4 ATX Power connector (ATXPWR1) Signal PIN PIN Signal +V3P3S +V3P3S +V3P3S +V5A_SB ATX20_PWROK +V5A_SB +12V 20 EMX-R680P User’s Manual...

  • Page 21: Power Connector (Atx12V1)

    User’s Manual 2.3.5 Power connector (ATX12V1) Signal PIN PIN Signal ATX_2X4_DET +V12S_CPU +V12S_CPU +V12S_CPU +V12S_CPU 2.3.6 Front Panel connector (JFP1) Signal PIN PIN Signal HDD_LED+ PWR_LED+ HDD_LED- PWR_LED- SYS_RST# PWRBTN# EMX-R680P User’s Manual 21...

  • Page 22: Cpu Fan Connector (Cpufan1)

    EMX-R680P User’s Manual 2.3.7 CPU fan connector (CPUFAN1) Signal +12V CPU_ FANIN CPU_FANOUT 2.3.8 System fan connector 1 (SYSFAN1) Signal +12V SYS_ FANIN SYS_FANOUT 22 EMX-R680P User’s Manual...

  • Page 23: Auxiliary Panel Connector (Jauxp1)

    User’s Manual 2.3.9 Auxiliary Panel connector (JAUXP1) Signal PIN PIN Signal FRONT_LAN1_ACT FRONT_LAN2_ACT FRONT_LAN3_ACT FRONT_LAN4_ACT 2.3.10 USB connector (JUSB1) Signal PIN PIN Signal +V5A_USBB-C +V5A_USBB-C USB_11N USB_12N USB_11P USB_12P EMX-R680P User’s Manual 23...

  • Page 24: Usb Connector (Jusb3)

    EMX-R680P User’s Manual 2.3.11 USB connector (JUSB3) Signal PIN PIN Signal +V5A_USB5-6 +V5A_USB5-6 USB32_RXN10 USB32_RXN9 USB32_RXP10 USB32_RXP9 USB32_TXN10 USB32_TXN9 USB32_TXP10 USB32_TXP9 USB_N10 USB_N9 USB_P10 USB_P9 2.3.12 JPC1 connector (JPC1) Signal VCCCORE_nPMALERT VCCCORE_PMSDA VCCCORE_PMSCL +V3P3_EXT 24 EMX-R680P User’s Manual...
  • Page 25 User’s Manual 2.3.13 Speaker connector (SPK1) Signal LSPK+ LSPK- RSPK+ RSPK- 2.3.14 FAUD1 connector (FAUD1) Signal PIN PIN Signal LINE2_JD LINE2_LIN SENSE MIC2_JD LINE2_RIN ACZ_DET# MIC2_RIN MIC2_LIN EMX-R680P User’s Manual 25...
  • Page 26 2.3.15 JESPI1 connector (JESPI1) Signal PIN PIN Signal ESPI_DEG_IO0 +V3P3A ESPI_DEG_IO1 PLT_RST#_BUF ESPI_DEG_IO2 ESPI_CS# ESPI_DEG_IO3 ESPI_DEG_CLK ESPI_CS1# ESPI_RST# ESPI_ALERT# 2.3.16 Serial port connector (COM1) Signal PIN PIN Signal NDCDA#_TXN_1 NDCDA#_TXP_1 NTXDA_RXP_1 NTXDA_RXN_1 NDSRA# NRTSA# NCTSA# NRIA# 26 EMX-R680P User’s Manual...
  • Page 27 User’s Manual 2.3.17 Serial port connector (COM2) Signal PIN PIN Signal NDCDA#_TXN_2 NDCDA#_TXP_2 NTXDA_RXP_2 NTXDA_RXN_2 NDSRA# NRTSA# NCTSA# NRIA# 2.3.18 LCD Inverter connector (JBKL1) Signal +12V LVDS_BKLTEN LVDS_BKLADJ EMX-R680P User’s Manual 27...
  • Page 28 EMX-R680P User’s Manual 2.3.19 LVDS connector (LVDS1) Signal PIN PIN Signal LVDS_VDD33V LVDS_VDD5V LVDS_VDD33V LVDS_VDD5V LVDS_DATAP1 LVDS_DATAP0 LVDS_DATAN1 LVDS_DATAN0 LVDS_DATAP3 LVDS_DATAP2 LVDS_DATAN3 LVDS_DATAN2 LVDS_DATAP5 LVDS_DATAP4 LVDS_DATAN5 LVDS_DATAN4 LVDS_DATAP7 LVDS_DATAP6 LVDS_DATAN7 LVDS_DATAN6 LVDS_CLK2P LVDS_CLK1P LVDS_CLK2N LVDS_CLK1N LVDS_VDD12V LVDS_VDD12V 28 EMX-R680P User’s Manual...

  • Page 29: Bios Setup

    User’s Manual 3.BIOS Setup EMX-R680P User’s Manual 29...

  • Page 30: Introduction

    If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP 30 EMX-R680P User’s Manual...

  • Page 31: Using Setup

    Note: Some of the navigation keys differ from one screen to another.  To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. EMX-R680P User’s Manual 31...

  • Page 32: Getting Help

    BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 32 EMX-R680P User’s Manual...

  • Page 33: Bios Setup

    <Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. EMX-R680P User’s Manual 33...

  • Page 34: System Language

    Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 34 EMX-R680P User’s Manual...

  • Page 35: Cpu Configuration

    Number of E-cores to enable in each processor package. Active Efficient-cores 15/14/13/12/11 Note: Number of Cores and E-cores are looked at 10/9/8/7/6/5/4/3/2/1 together. When both are {0,0}, Pcode will enable all cores. Disabled Hyper-Threading Enable or Disable Hyper-Threading Technology. Enabled[Default], 3.6.2.1.1 Efficient-core Information EMX-R680P User’s Manual 35...

  • Page 36: Performance-Core Information

    P-states. Enable/Disable processor Turbo Mode (requires Disabled Turbo Mode Enabled[Default], EMTTM enabled too). AUTO means enabled. Disabled[Default], Enable/Disable CPU Power Management. Allows C-states CPU to go to C states when it’s not 100% utilized. Enabled 36 EMX-R680P User’s Manual...

  • Page 37: Pch-Fw Configuration

    MEBx AMT BIOS Features Enabled[Default], Setup. Note: This option does not disable Manageability Features in FW. 3.6.2.2.1 AMT Configuration Item Description Unconfigure ME Unconfigure ME with resetting MEBx password to default on next boot. EMX-R680P User’s Manual 37...

  • Page 38: Firmware Update Configuration

    Enabled 3.6.2.3 Trusted Computing Item Options Description Enables or Disables BIOS support for security device. O.S. Security Device Disabled will not show Security Device. TCG EFI protocol and Support Enabled[Default], INT1A interface will not be available. 38 EMX-R680P User’s Manual...

  • Page 39: Acpi Settings

    SUSPEND button is pressed. 3.6.2.5 Super IO Configuration You can use this item to set up or change the Super IO configuration for serial ports. Please refer to 3.6.2.5.1~ 3.6.2.5.5 for more information. EMX-R680P User’s Manual 39...

  • Page 40: Serial Port 1 Configuration

    Low: RS232/422/485 =250Kbps High: RS232 = 3Mbps, UART Slew Rate High RS422/485 = 20Mbps Auto[Default], Non INT + EXT R Adjust the Serial Port with internal or external termination INT_EXT R mode INT R resistors EXT R INT + EXT R 40 EMX-R680P User’s Manual...

  • Page 41: Serial Port 2 Configuration

    Low: RS232/422/485 =250Kbps High: RS232 = 3Mbps, UART Slew Rate High RS422/485 = 20Mbps Auto[Default], Non INT + EXT R Adjust the Serial Port with internal or external termination INT_EXT R mode INT R resistors EXT R INT + EXT R EMX-R680P User’s Manual 41...

  • Page 42: Serial Port 3 Configuration

    3.6.2.5.3 Serial Port 3 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM) Enabled[Default], 3.6.2.5.4 Serial Port 4 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM) Enabled[Default], 42 EMX-R680P User’s Manual...

  • Page 43: Serial Port 5 Configuration

    User’s Manual 3.6.2.5.5 Serial Port 5 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM) Enabled[Default], 3.6.2.6 NCT6126D HW Monitor EMX-R680P User’s Manual 43...

  • Page 44: Smart Fan Mode Configuration

    /Mode 08/Mode 09 Avalue Smart Fan Mode Select: Mode 01 to Mode 20 Or SYS Fan Mode /Mode 10/Mode 11 Manual(No Smart Fan) /Mode 12/Mode 13 /Mode 14/Mode 15 /Mode 16/Mode 17 /Mode 18/Mode 19 /Mode 20 44 EMX-R680P User’s Manual...

  • Page 45: S5 Rtc Wake Settings

    Select DynamicTime, System will wake on the current time Dynamic Time + Increase minutes(s). 3.6.2.8 Serial Port Console Redirection Item Option Description Disabled[Default], Console Redirection Console Redirection Enable or Disable. Enabled Console Redirection Disabled[Default], Console Redirection Enable or Disable. Enabled EMX-R680P User’s Manual 45...

  • Page 46: Usb Configuration

    Mass storage device emulation type. ‘AUTO’ enumerates Floppy Mass Storage devices according to their media format. Optical drives are Forced FDD emulated as ‘CDROM’, drives with no media will be Devices Hard Disk emulated according to a drive type. CD-ROM 46 EMX-R680P User’s Manual...

  • Page 47: Network Stack Configuration

    User’s Manual 3.6.2.10 Network Stack Configuration Item Option Description Disabled[Default] Network Stack Enable/Disable UEFI Network Stack. Enabled 3.6.2.11 NVMe Configuration EMX-R680P User’s Manual 47...

  • Page 48: Chipset

    EMX-R680P User’s Manual 3.6.3 Chipset 3.6.3.1 System Agent (SA) Configuration Item Option Description Disabled VT-d VT-d capability. Enabled[Default] 48 EMX-R680P User’s Manual...

  • Page 49: Memory Configuration

    User’s Manual 3.6.3.1.1 Memory Configuration 3.6.3.1.2 Graphics Configuration Item Option Description Auto[Default] Select which of IGFX/PEG Graphics device should be Primary Display IGFX Primary Display. PEG Slot GTT Size Select the GTT Size 8MB[Default] EMX-R680P User’s Manual 49...

  • Page 50: Dmi/Opi Configuration

    EMX-R680P User’s Manual 3.6.3.1.3 DMI/OPI Configuration 3.6.3.1.4 VMD setup menu Item Option Description Enable VMD Disabled[Default] Enable/Disable to VMD controller Enabled controller 50 EMX-R680P User’s Manual...

  • Page 51: Pci Express Configuration

    (PEG1) Enabled[Default], Disabled[Default] Set the ASPM Level: Force L0s – Force all links to L0s State AUTO – BIOS auto configure DISABLE – Disables ASPM ASPM. L0sL1 Auto[Default] /Gen1/Gen2 PCIe Speed Configure PCIe speed. /Gen3/Gen4 /Gen5 EMX-R680P User’s Manual 51...

  • Page 52: Pch-Io Configuration

    The number of milliseconds reference code will wat for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. 3.6.3.2 PCH-IO Configuration 3.6.3.2.1 PCI Express Configuration 52 EMX-R680P User’s Manual...

  • Page 53: Intel I225/I226 Lan Chip (Pci-E Port 3)

    Gen2 Configure PCIe speed. Gen3 Gen4 The number of milliseconds reference code will wat for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. EMX-R680P User’s Manual 53...

  • Page 54: Intel I225/I226 Lan Chip (Pci-E Port 4)

    Gen2 Configure PCIe speed. Gen3 Gen4 The number of milliseconds reference code will wat for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. 54 EMX-R680P User’s Manual...

  • Page 55: Keye (Pci-E Port 5~6)

    Gen2 Configure PCIe speed. Gen3 Gen4 The number of milliseconds reference code will wat for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. EMX-R680P User’s Manual 55...

  • Page 56: Intel I225/I226 Lan Chip (Pci-E Port 9)

    Gen2 Configure PCIe speed. Gen3 Gen4 The number of milliseconds reference code will wat for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. 56 EMX-R680P User’s Manual...

  • Page 57: Intel I225/I226 Lan Chip (Pci-E Port 10)

    Gen2 Configure PCIe speed. Gen3 Gen4 The number of milliseconds reference code will wat for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. EMX-R680P User’s Manual 57...

  • Page 58: Keym 1 (Pci-E Port 21~24)

    Gen2 Configure PCIe speed. Gen3 Gen4 The number of milliseconds reference code will wat for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. 58 EMX-R680P User’s Manual...

  • Page 59: Keym 2 (Pci-E Port 25~28)

    Gen2 Configure PCIe speed. Gen3 Gen4 The number of milliseconds reference code will wat for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. EMX-R680P User’s Manual 59...

  • Page 60: Sata Configuration

    Test Mode Enable/Disable (Loop Back). Disabled Disabled[Default], SATA Port Enable or Disable SATA Port Enabled Hard Disk Drive[Default], Identify the SATA port is connected to Solid State Drive SATA Device Type Solid State Drive or Hard Disk Drive 60 EMX-R680P User’s Manual...

  • Page 61: Hd Audio Configuration

    Control Detection of the HD-Audio device. Disabled = Disabled HD Audio HDA will be unconditionally disabled Enabled = HDA Enabled[Default], will be unconditionally enabled. 3.6.3.2.4 Board & Panel Configuration Item Option Description Active Disabled Active Internal LVDS(eDP->Ch7513-to-LVDS) Panel(eDP/LVDS) Enabled[Default] EMX-R680P User’s Manual 61...
  • Page 62 Wake Up by Ring Wake Up by Ring from S3/S4/S5 Enabled[Default], 11db 14db Amplifier Gain Amplifier Gain 19db[Default], 25db Disabled USB Standby Power Enable/Disable USB Standby Power during S3/S4/S5 Enabled[Default], Disabled[Default], SHOW DMI INFO SHOW DMI INFO Enabled 62 EMX-R680P User’s Manual...

  • Page 63: Security

    User’s Manual 3.6.4 Security  Administrator Password Set setup Administrator Password  User Password Set User Password 3.6.4.1 Secure Boot menu EMX-R680P User’s Manual 63...

  • Page 64: Boot

    Select the Keyboard NumLock state State Disabled[Default] Quiet Boot Enables or disables Quiet Boot option Enabled Boot Option #1 Set the system boot order. Boot Option #2 Set the system boot order. 3.6.6 Save and exit 64 EMX-R680P User’s Manual...

  • Page 65: Save Changes And Reset

    Reset system setup without saving any changes. 3.6.6.3 Restore Defaults Restore/Load Default values for all the setup options. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices. EMX-R680P User’s Manual 65...

  • Page 66: Mebx

    EMX-R680P User’s Manual 3.6.7 MEBx 66 EMX-R680P User’s Manual...

  • Page 67: Drivers Installation

    User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. EMX-R680P User’s Manual 67...

  • Page 68: Install Chipset Driver

    All drivers can be found on the Avalue Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 11 operation system. Step 3. Click Install. Step1. Click Next. Step 2. Click Accept. Step 4. Setup completed. 68 EMX-R680P User’s Manual...

  • Page 69: Install Vga Driver

    Note: The installation procedures and screen shots in this section are based on Windows 11 operation system. Step 1. Click Begin installation. Step 3. Click Start. Step 2. Click Next. Step 4. Click Finish to complete setup. EMX-R680P User’s Manual 69...

  • Page 70: Install Ethernet Driver

    Windows 11 operation system. Step 3. Click Next. Step 1. Click Install Drivers and Software to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Install. 70 EMX-R680P User’s Manual...
  • Page 71 User’s Manual Step 6. Click Finish to complete setup. EMX-R680P User’s Manual 71...

  • Page 72: Install Audio Driver (For Realtek Alc888S Hd Audio)

    All drivers can be found on the Avalue Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 11 operation system. Step 2. Select Finish to complete Step 1. Click Next to Install. Installation. 72 EMX-R680P User’s Manual...

  • Page 73: Install Me Driver

    If the warning message appears while the installation process, click Continue to go on. Step1. Click Next to start installation. Step 3. Click Next to continue installation. Step 4. Click Finish to complete setup. Step 2. Click Next. EMX-R680P User’s Manual 73...

  • Page 74: Install Rst Driver For Raid Mode

    Note: The installation procedures and screen shots in this section are based on Windows 11 operation system. Step 1. Click Next to continue installation. Step 3. Click Next. Step 2. Click Next. Step 4. Click Finish to complete setup. 74 EMX-R680P User’s Manual...

  • Page 75: Install Serial Io Driver

    Windows 11 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Finish to complete setup. EMX-R680P User’s Manual 75...

  • Page 76: Mechanical Drawing

    EMX-R680P User’s Manual 5. Mechanical Drawing 76 EMX-R680P User’s Manual...
  • Page 77 User’s Manual Unit: mm EMX-R680P User’s Manual 77...
  • Page 78 EMX-R680P User’s Manual Unit: mm 78 EMX-R680P User’s Manual...
