Device overview

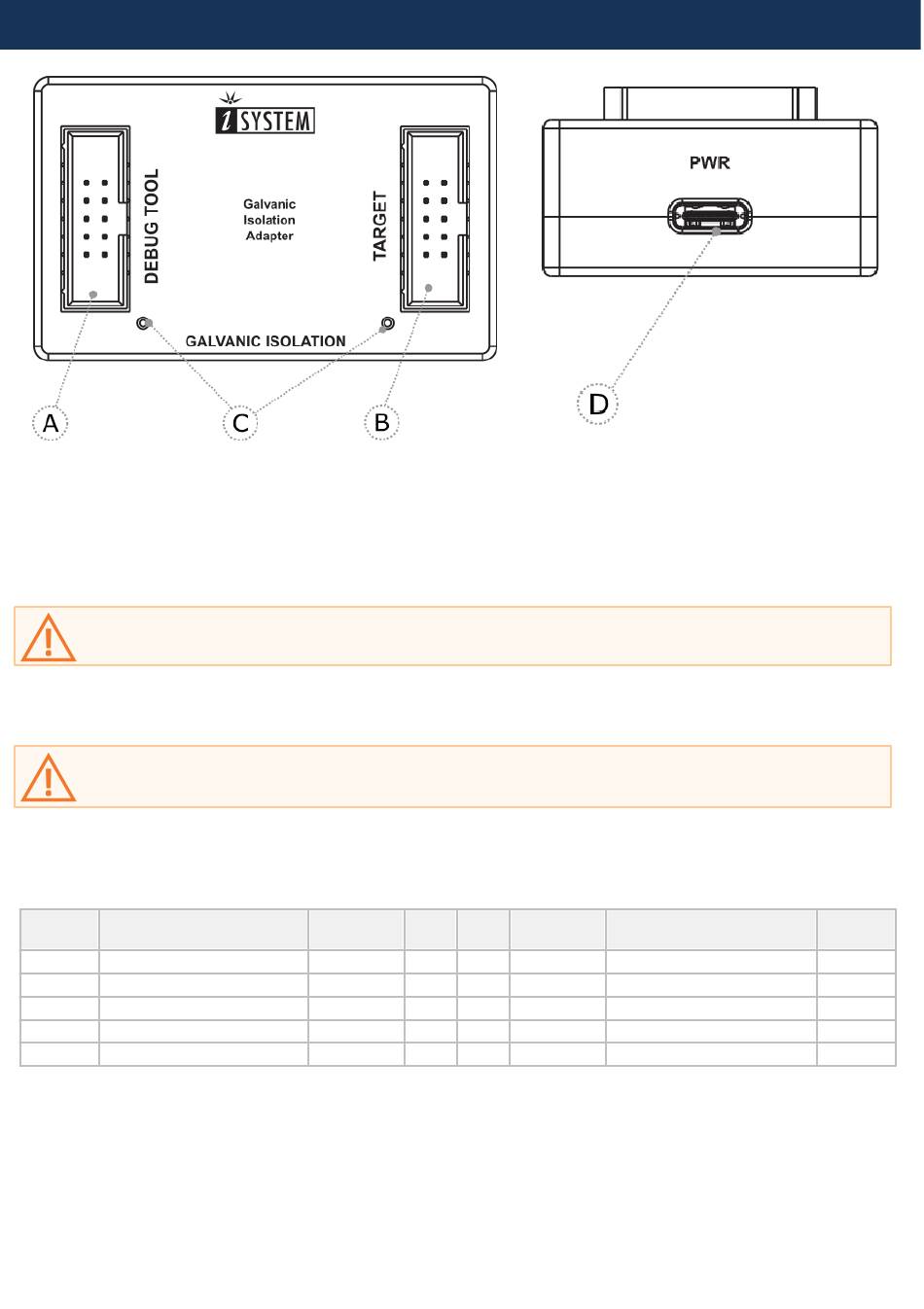

A – DEBUG TOOL connector.
B – TARGET connector.
C – LED lights indicate power supply status.
If LEDs on the GI Adapter are OFF, immediately turn everything OFF!
D – USB-C Power supply socket (PWR).
Use only original iSYSTEM USB-C Power supply for powering and connecting with the GI
Adapter, otherwise the primary functionality of the GI Adapter would be counteracted.
Pinout
The following pinout is valid on the target side:
Signal Signal Description
Direction
I Reference Voltage
Ground
Ground
Not Connected
Ground
Signal Pin Pin
Vref 1 2
GND 3 4
GND 5 6
NC 7 8
GND 9 10
10-pin Infineon DAP pinout
Signal Signal Description
DAP1 DAP Data pin
DAP0 DAP clock
DAP2 Optional 2d DAP Data pin
DAPEN DAP Enable
nRESET Reset
Signal
Direction
I/O
O
I/O
O
I/O
