Chapter 5: Standard Chart Operations

Removing a Chart Card

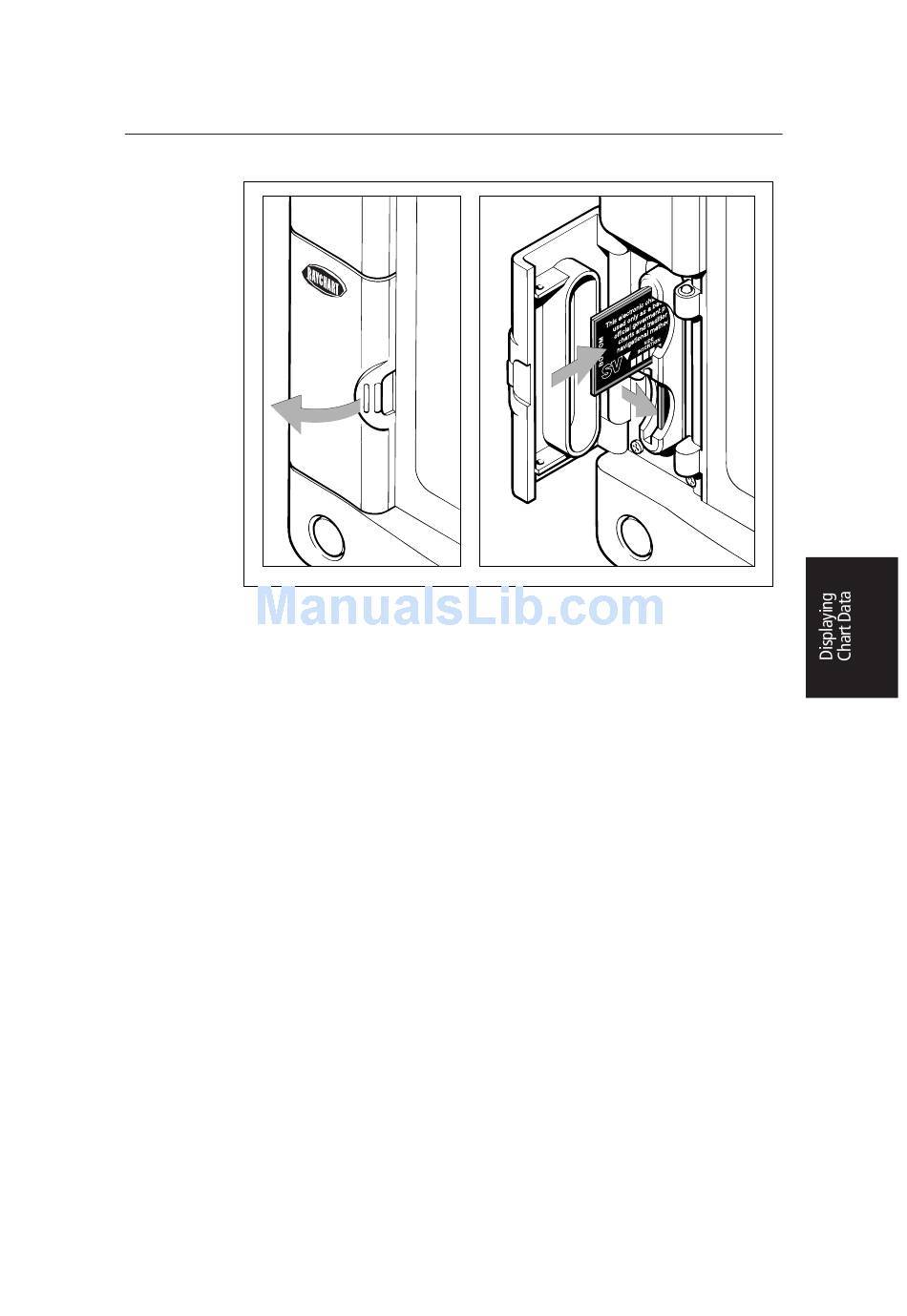

➤ To remove a chart card:
1. Open the card cover, at the lower left of the display front panel.
2. Press down on the card you wish to remove, and move the top of the card to
the left to clear the retaining pegs.
The card will spring half-way out, enabling you to grip the card and remove
it from the slot.
3. Remember to close the card cover so that is clicks shut, to prevent water
entering the card reader assembly.

Displaying the Chart Data

The new chart information will be displayed when you move the cursor into an
area covered by the new chart or, if it is already in the area, change the range
scale.
If a chart repeater is connected, the chart can also be accessed by the repeater
display. To see the chart you may need to zoom or pan, to redraw the chart area
to the screen.
The boundary of each chart digitized in the current card is defined by a box or
rectangle. (You can switch off the chart boundaries display if you wish, as part
of the chartplotter set up described in Chapter 7.)
