LeaksProtect User manual | Ajax Systems Support

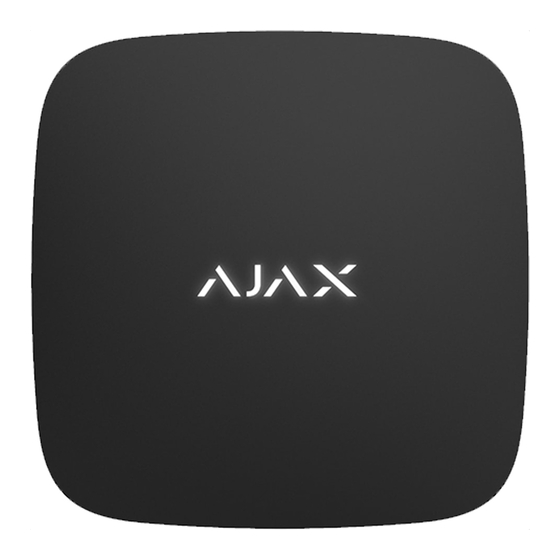

LeaksProtect is a wireless leak detector for indoor use. Detects
minimal leaks for you to respond and =x the problem in time.
LeaksProtect connects to the Ajax security system via the protected
Jeweller
meters in line of sight.
LeaksProtect can work as part of a water leak detection system
together with the Ajax hub and
LeaksProtect can be connected to third-party security systems
https://support.ajax.systems/en/manuals/leaksprotect/?_gl=1*u....&_ga=2.172733284.679383060.1687678623-1259365304.1687091388
LeaksProtect User manual
radio protocol. The communication range is up to 1300
Updated June 6, 2023
WaterStop
smart shutoff valve. Also,
Language:
Eng
25/6/23, 10:37 πµ
Ʃελίδα 1 από 17
Advertisement
Table of Contents
Related Manuals for AJAX LeaksProtect
Summary of Contents for AJAX LeaksProtect
- Page 1 LeaksProtect connects to the Ajax security system via the protected Jeweller radio protocol. The communication range is up to 1300 meters in line of sight. LeaksProtect can work as part of a water leak detection system together with the Ajax hub and WaterStop smart shutoff valve. Also, LeaksProtect can be connected to third-party security systems https://support.ajax.systems/en/manuals/leaksprotect/?_gl=1*u….&_ga=2.172733284.679383060.1687678623-1259365304.1687091388...
-
Page 2: Operating Principle
LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ using the uartBridge ocBridge Plus integration modules. Users can con=gure LeaksProtect via the Ajax app for macOS, Windows, iOS, or Android. The system noti=es users of all events through push noti=cations, SMS, and calls (if activated). - Page 3 LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ At the bottom of its body, LeaksProtect is equipped with four pairs 0:00 0:12 of water-sensitive contacts. If at least one contact pair gets wet, the detector immediately transmits an alarm signal to the hub, notifying the user and security company.
- Page 4 LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ automation scenario. You can con=gure other automation scenarios, for example, to stop the water supply either by schedule or after arming the system. More about scenarios Connecting the detector to the Ajax...
- Page 5 3. Select Add — the countdown will begin. 4. Switch on the device. LeaksProtect has a rigid “ON” button: press it with force to switch the detector on. For the detection and pairing to occur, the device should be located within the wireless coverage area of the hub (at the same facility).
- Page 6 LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ If the connection failed, LeaksProtect switches off after 6 seconds. To retry the connection, you do not need to reboot the device. If LeaksProtect is paired with another hub, switch the detector off, then retry the standard adding procedure.
- Page 7 LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ Parameter Value Temperature of the detector, measured on the processor and changes gradually. Acceptable error between the value in the app and the room temperature — 2°C. The value is updated as soon as the...
- Page 8 LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ Leakage detected Alarm if the water sensor contacts wet Shows the status of the device: active, completely disabled by the user, or only Temporary Deactivation noti=cations about triggering of the...
- Page 9 LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ detected Switches the detector to the signal Jeweller Signal Strength Test strength test mode Allows the user to disconnect the device without removing it from the system. Two options are available: Entirely —...
- Page 10 LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ The LeaksProtect LED indicator may light up red or green depending 0:00 0:04 on the device status. Indication when pressing the power button Event Indication Pressing the power button (detector is...
-
Page 11: Functionality Testing
Functionality Testing Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start straight away but within a period of 36 seconds when using the standard settings. The test time start depends on the settings of the detector scanning period (the paragraph on “Jeweller”... -
Page 12: Selecting The Location
LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ Selecting the Location When selecting the device location, please take into account its remoteness from the hub (up to 1300 meters) and the absence of any obstacles between the devices hindering the radio signal transmission: walls, eoors, large objects located in the room. -
Page 13: Detector Testing
When the liquid gets on the detector contacts, it closes the electrical circuit. It is enough to close one contact pair to activate the alarm. 1. To check LeaksProtect, close one contact pair with a wet =nger for 3 seconds (the delay prevents false triggering). If water is detected, the detector LED will light up red for 1 second. -
Page 14: Maintenance
To replace the batteries, turn off the detector, loosen the screws and remove the LeaksProtect front panel. Change the batteries with new ones type AAA, adhering to polarity. -
Page 15: Tech Specs
LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ Battery replacement Tech specs Jeweller Radio communication protocol Learn more 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz Radio frequency band 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 –... -
Page 16: Complete Set
LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ Operating temperature range From 0°С to +50°С Operating humidity Up to 100% Overall dimensions 56 × 56 × 14 mm Weight 40 g Service life 10 years Compliance with standards Complete Set 1. - Page 17 LeaksProtect User manual | Ajax Systems Support 25/6/23, 10:37 πµ The full text of the warranty User Agreement Technical support: support@ajax.systems Subscribe to the newsletter about safe life. No spam Email Subscribe https://support.ajax.systems/en/manuals/leaksprotect/?_gl=1*….&_ga=2.172733284.679383060.1687678623-1259365304.1687091388 Ʃελίδα 17 από 17...
