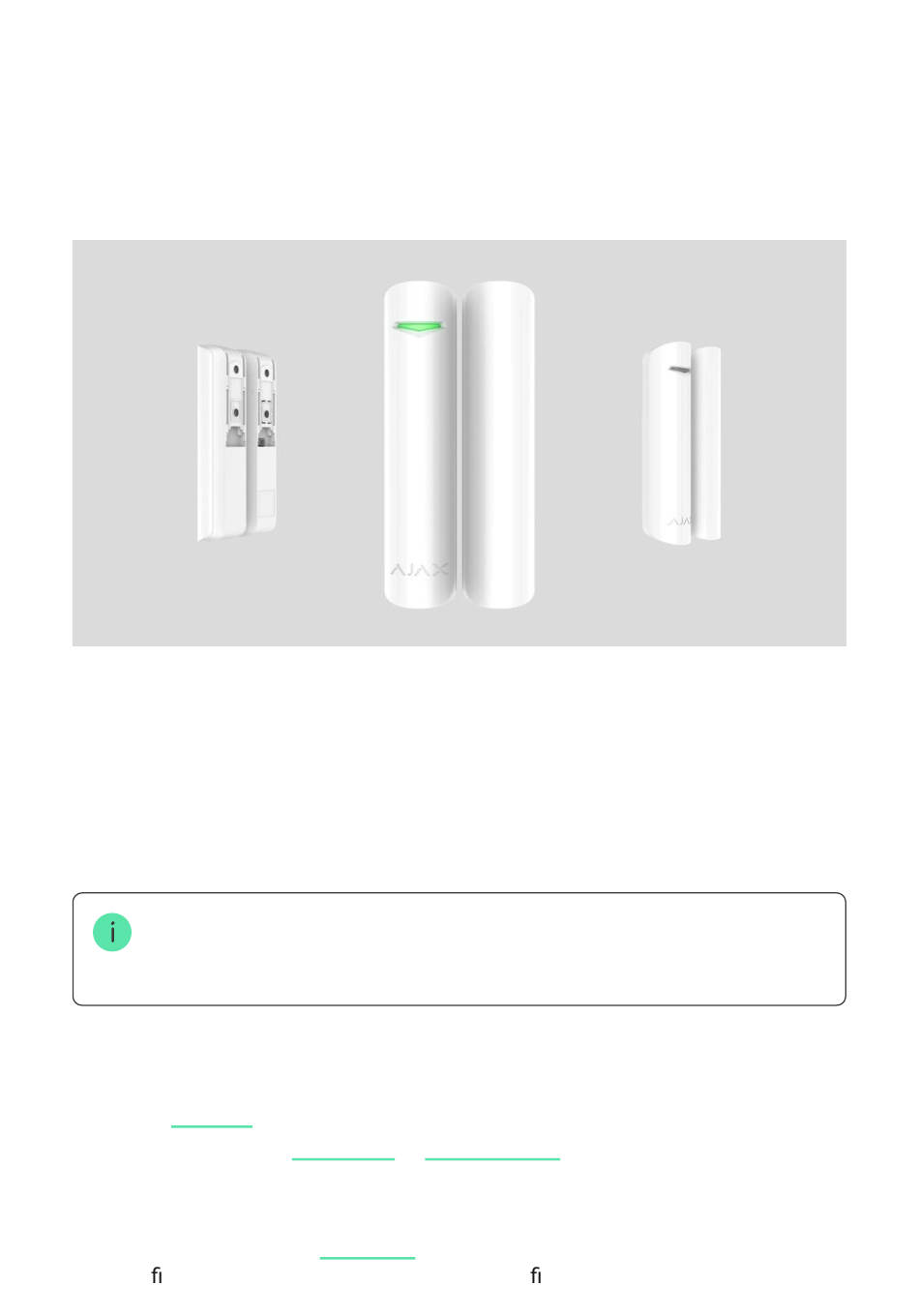

DoorProtect User Manual
DoorProtect is a wireless door and window opening detector designed for
indoor use. It can operate up to 7 years from a pre-installed battery and capable
to detect more than 2 millions openings. DoorProtect has a socket for
connecting an external detector.
The functional element of DoorProtect is a sealed contact reed relay. It consists of
ferromagnetic contacts placed in a bulb that form a continuous circuit under the effect
of a constant magnet.
DoorProtect operates within the Ajax security system, connecting via the
protected
Jeweller
line of sight. Using the
DoorProtect can be used as part of third party security systems.
The detector is set up via
app noti es user of all events through push noti cations, SMS and calls (if
activated).
Updated January 24, 2022
radio protocol. Communication range is up to 1,200 m in the
uartBridge
or
ocBridge Plus
Ajax apps
for iOS, Android, macOS and Windows. The
integration modules,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DoorProtect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX DoorProtect

Summary of Contents for AJAX DoorProtect

  • Page 1 2 millions openings. DoorProtect has a socket for connecting an external detector. The functional element of DoorProtect is a sealed contact reed relay. It consists of ferromagnetic contacts placed in a bulb that form a continuous circuit under the effect of a constant magnet.

  • Page 2: Functional Elements

    The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company. Buy opening detector DoorProtect Functional Elements 1. DoorProtect 2. Big magnet (should be placed to the right of the detector) 3.
  • Page 3 DoorProtect consists of two parts: the detector with a sealed contact reed relay, and the constant magnet. Attach the detector to the door frame, while the magnet can be attached to the moving wing or sliding part of the door. If the sealed contact reed relay is within the coverage area of the magnetic eld, it closes the circuit, which means that the detector is closed.
  • Page 4 1. Select the Add Device option in the Ajax app. 2. Name the device, scan/write manually the QR Code (located on the body and packaging), and select the location room. 3. Select Add — the countdown will begin. 4. Switch on the device.
  • Page 5 If the detector has paired with the hub, it will appear in the list of devices in the Ajax app. The update of the detectors statuses in the list depends on the detector ping interval set in the hub settings. The default value is 36 seconds.
  • Page 6 Battery level of the device. Displayed as a percentage Battery Charge How battery charge is displayed in Ajax apps The tamper state, which reacts to detachment or damaging of the detector body Entry delay (alarm activation delay) is the time...
  • Page 7 By timer — the device is automatically disabled by the system when the recovery timer expires (speci ed in the settings for Devices Auto Deactivation). The feature is con gured in the Ajax PRO app. Firmware The detector rmware version Device ID The device identi er Device No.
  • Page 8 Settings To change the detector settings in the Ajax app: 1. Select the hub if you have several of them or if you are using the PRO app. 2. Go to the Devices tab. 3. Select DoorProtect from the list.
  • Page 9 5.55.0.0 or higher Alarm LED indication How to nd the rmware version or the ID of the detector or device? If active, DoorProtect primarily reacts to Primary Detector opening/closing If active, DoorProtect registers external detector External contact...
  • Page 10 3.50 and later) Signal Attenuation Test What is Attenuation Test User Guide Opens DoorProtect User Guide in the Ajax app Allows the user to disconnect the device without removing it from the system. Three options are available: No — the device operates normally and transmits all alarms and events Entirely —...
  • Page 11 Learn more about Chime Detectors settings 1. Go to the Devices menu. 2. Select the DoorProtect detector. 3. Go to its settings by clicking the gear icon in the upper right corner. 4. Go to the Chime Settings menu. 5. Select the events to be noti ed by the siren: If a door or a window is open.

  • Page 12: Functionality Testing

    Attenuation Test Installing the Detector Selecting the location Location of DoorProtect is determined by its remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted oors, large objects located within the room.
  • Page 13 The distance between the magnet and detector should not exceed 1 cm. When positioning the parts of DoorProtect in the same plane, use the big magnet. Its actuation threshold — 2 cm. Attach the magnet to the moving part of the door (window) to the right of the detector.
  • Page 14 Double-sided adhesive tape may be only used for temporary attachment. The tape will run dry in the course of time, which may result in falling of DoorProtect and actuation of the security system. Furthermore, the device may fail from a hit.
  • Page 15 4. closer than 1 m to the hub. Connecting a Third-Party Wired Detector A wired detector with the NC contact type can be connected to DoorProtect using the outside-mounted terminal clamp. We recommend to install a wired detector at a distance not exceeding 1 meter —...
  • Page 16 If the door opens 10 times a day and the ping interval is 60 seconds, then DoorProtect will operate up to 7 years from the pre-installed battery. Setting the ping interval of 12 seconds, you will reduce the battery life to 2 years.

  • Page 17: Tech Specs

    Radio frequency band 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the region of sale. hubs radio signal Operates with all Ajax range extenders ocBridge Plus Compatibility uartBridge Maximum RF output power Up to 20 mW...

  • Page 18: Complete Set

    7. Installation kit 8. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should rst contact the support service —...
  • Page 19 Technical support: support@ajax.systems Subscribe to the newsletter about safe life. No spam Email Subscribe...
