Lower Controls - Mec 1330SE Operator's Manual

Section 5 - Controls & Components
1
7
9
09110036.B

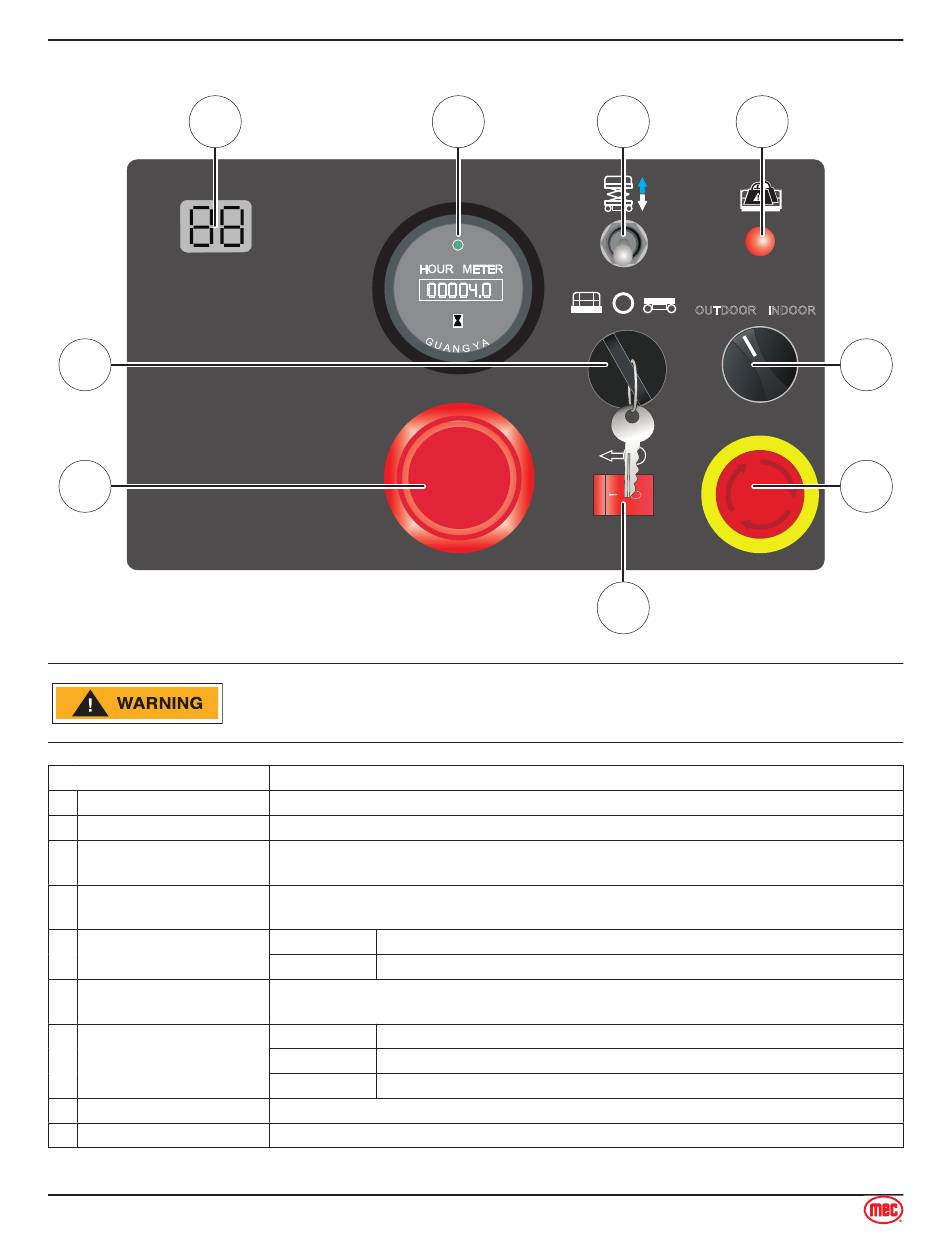

Control
1 LED Display
2 Hour Meter
Platform Lift / Lower
3
Switch
4 Platform Overload
5 Outdoor/Indoor Switch
6 Emergency Stop Switch
7 Key Switch
8 Brake Release Switch
9 Main Power Switch
Page 13

Lower Controls

ALWAYS be aware of the machine's position and of your surroundings
before activating any control function.
Indicates the state of battery charge and displays diagnostic codes when necessary.
The hour meter displays the number of hours the machine has operated.
With the Key Switch in the BASE position, move this switch up to lift the platform or
down to lower the platform.
Indicates too much weight on the platform.
Remove weight from the platform to restore function and continue.
OUTDOOR Select to limit the maximum height when outdoors.
INDOOR Select to allow unrestricted height when indoors.
Press the EMERGENCY STOP switch at any time to stop all machine functions.
Turn button clockwise to the on position to operate the machine.
PLATFORM Select to operate from the platform control panel.
OFF Select to stop operation from either control panel.
BASE Select to operate from the base control panel.
See page 37 for instructions.
Pull to turn the power on or push to turn the power off.
