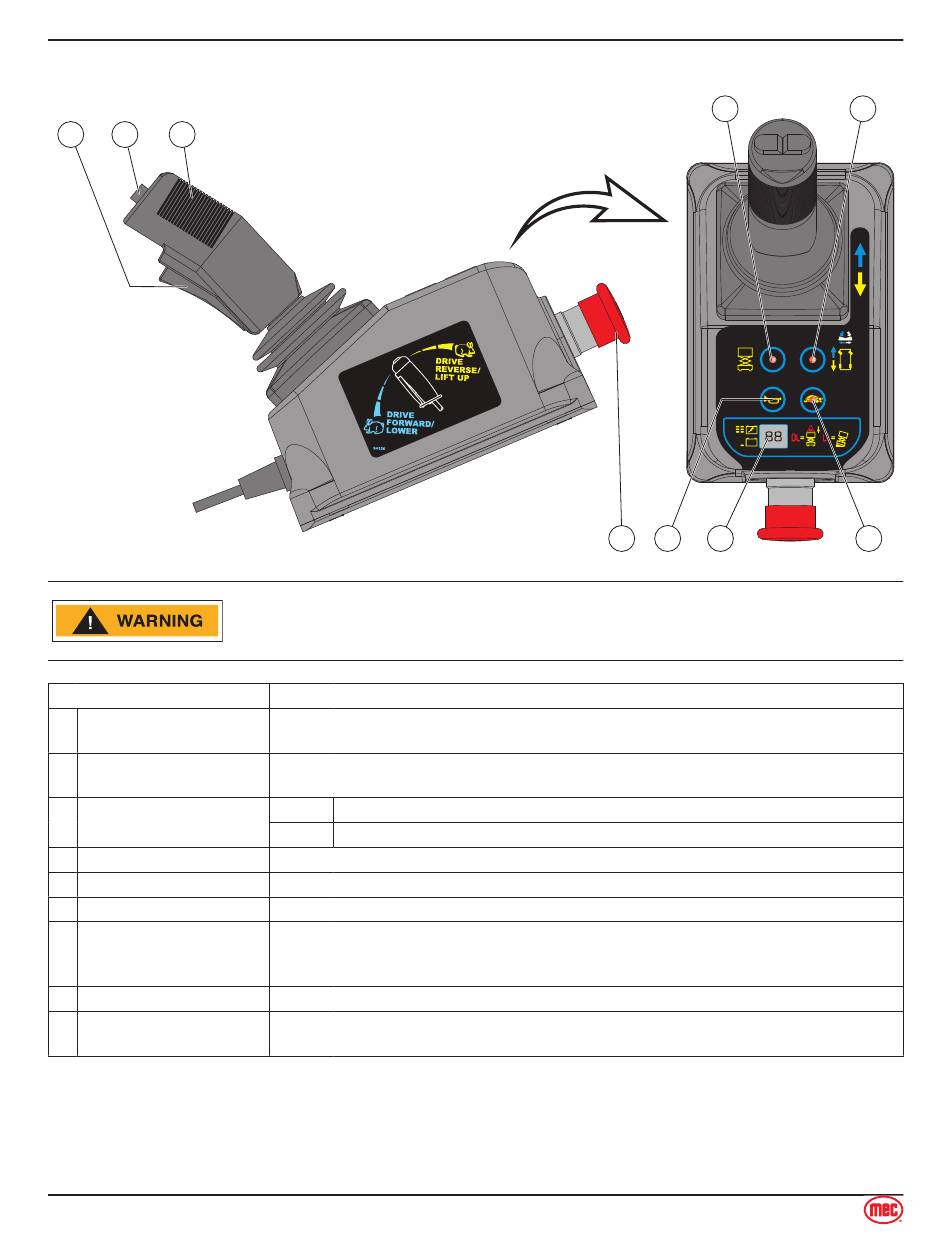

Upper Controls - Mec 1330SE Operator's Manual

Section 5 - Controls & Components
1 2 3
Control
1 Function Enable Switch
2 Steer Switch
3 Control Handle
4 Horn Button
5 Lift Select
6 Drive Select
7 Drive Speed Select
8 LED Display
9 Emergency Stop Switch
Page 12

Upper Controls

ALWAYS be aware of the machine's position and of your surroundings
before activating any control function.
Squeeze the Function Enable Switch to enable LIFT & DRIVE & STEER functions
from Control Handle.
Using your thumb press the thumb rocker switch in either direction to activate
STEER Left or Right function.
DRIVE Proportionally controls Forward and Reverse travel.
LIFT Proportionally controls Lift and Lower functions.
Press to sound warning horn.
Press this button to select the LIFT function.
Press this button to select the DRIVE function.
Press this button to activate the slow or fast drive function.
Light ON indicates Low Speed Drive is selected.
Light OFF indicates High Speed Drive is selected.
Indicates the state of battery charge and displays diagnostic codes when necessary.
Press the EMERGENCY STOP switch at any time to stop all machine functions.
Turn the button clockwise to the on position to operate the machine.
