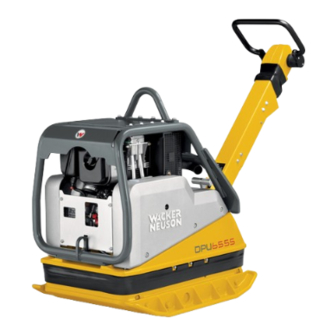

Vibratory plate
DPU 6555He
Operator´s Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPU 6555He and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wacker Neuson DPU 6555He

Summary of Contents for Wacker Neuson DPU 6555He

  • Page 1 0226268en 03.2010 Vibratory plate DPU 6555He Operator´s Manual...
  • Page 2 Manufacturer Wacker Neuson SE Preußenstraße 41 80809 München www.wackerneuson.com Tel.: +49-(0)89-354 02-0 Fax: +49-(0)89-354 02-390 Translation of the original operator’s manual in German...
  • Page 3 Foreword This operator's manual contains information and procedures for the safe opera- tion and maintenance of your Wacker Neuson machine. In the interest of your own safety and to prevent accidents, you should carefully read through the safety information, familiarize yourself with it and observe it at all times.

  • Page 4: Table Of Contents

    Table Of Contents Technical Data Description Max. admissible inclination ..............22 Description of function .................22 Transport to work site /Recommendations on compaction Transport to work site ................24 Recommendations on compaction ............26 Operation Starting ....................27 Mechanical oil pressure control ............28 Electric start ..................30 Starting the engine with the safety starting crank ........32 Starting in cold weather ...............35 Starting with external battery etc.
  • Page 5 Installation of accessories which are not from Wacker Neuson. It is no problem to install spare parts from Wacker Neuson. It is no problem to install accessories that are available in the Wacker Neuson product range of your machine. Please refer to the installation regulations in this operator's manual.
  • Page 6 Have damaged or defective components replaced immediately! For further information, refer to chapter Troubleshooting. Spare parts, accessories Use only spare parts from Wacker Neuson or such that are equivalent to the orig- inal parts in design and quality. Only use accessories from Wacker Neuson.
  • Page 7 2 Safety Exclusion of liability Wacker Neuson will refuse to accept liability for injuries to persons or for damage to materials in the following cases: Structural modifications. Improper use. Failure to comply with this operator's manual. Improper handling. Using of spare parts which are not from Wacker Neuson and not equivalent to the original parts in design and quality.
  • Page 8 2 Safety Checking for signs of damage Inspect the machine when it is switched off for any signs of damage at least once per work shift. Do not operate the machine if there is visible damage or defects. Have any damage or defects eliminated immediately. Qualification of the operating personnel Operator qualifications Only trained personnel are permitted to start and operate the machine.
  • Page 9 When wearing ear protection while working, you must pay attention and exercise caution because your hearing is limited, e.g. in case someone screams or a sig- nal tone sounds. Wacker Neuson recommends that you always wear ear protection. Transport Switching off the machine Before you transport the machine, it must be switched off, and the engine must be given sufficient time to cool down.
  • Page 10 2 Safety Lifting When lifting the machine, observe the following instructions: Designate a skilled person to guide you for the lifting procedure. You must be able to see or hear this person. Use only suitable and certified hoisting gear, lifting tackle and load-bearing equipment with sufficient lifting capacities.
  • Page 11 2 Safety Work environment Familiarize yourself with your work environment before you start work. This in- cludes e.g. the following items: Obstacles in the work and traffic area. Load-bearing capacity of the ground. The measures needed to cordon off the construction site from public traffic in particular.
  • Page 12 2 Safety Switching off the machine Switch off the engine in the following situations: Before breaks. If you are not using the machine. Store the machine in such a way that it cannot tilt, fall or slip. Storage location After operation, allow the machine to cool and then store it in a sealed-off, clean and dry location protected against frost and inaccessible to children.
  • Page 13 You must also comply with the relevant guidelines and regulations, particularly DIN 4150-3. The foundation must also have sufficient load-bearing capacity to withstand the compaction energy. In case of doubt involve a soil mechanics specialist in the evaluation. Wacker Neuson is not liable for any structural damage. Operator's manual...
  • Page 14 2 Safety Safety during the operation of combustion engines Checking for signs of damage Check the engine while switched off for leaks and cracks in the fuel line, tank and fuel cap at least once per work shift. Do not operate the machine if there is visible damage or defects. Have any damage or defects eliminated immediately.
  • Page 15 This machine is equipped with an EPA-certified engine. Modifying the motor speed influences the EPA certification and emission. The motor may only be set by a skilled technician. For more detailed information, contact your nearest motor or Wacker Neuson representative. Operator's manual...
  • Page 16 Using only a Wacker Neuson battery Use only Wacker Neuson batteries to replace defective batteries, see chapter Technical Data. Only the Wacker Neuson battery is vibration resistant and thus suitable for the high vibratory stresses. Operator's manual...
  • Page 17 Dispose of replaced or spilled operating fluids according to the applicable regulations for environmental protection. If operating fluids escape from the machine, cease operation of the machine and have it repaired immediately by your Wacker Neuson representative. Operator's manual...
  • Page 18 2 Safety 2.10 Safety and information labels Your machine has adhesive labels containing the most important instructions and safety information. Make sure that all the labels are kept legible. Replace any missing or illegible labels. The item numbers for the labels are in the parts book. Pos.
  • Page 19 2 Safety Pos. Label Description If the machine falls, it can cause severe crushing injuries. Do not lift the machine by the guide handle or the center pole. Warning US machines WARNING WARNUNG ADVERTENCIA 0219261 ADVERTISSEMENT 0219176 Operator's manual...

  • Page 20: Technical Data

    Technical Data Technical Data DPU 6555He DPU 6555Heap Item no. 0610354 0610357 0610356 Length x width x height 1700 x 714 x 1190 Operating weight Forward/reverse speed m/min: Surface compaction performance 1193 1402 m2/h: Power transmission From drive engine directly to exciter unit via...
  • Page 21 Technical Data DPU 6555He DPU 6555Heap Fuel consumption l/h: Tank capacity Electrical system Battery Special Wacker Neuson-battery for vibro plates - 12 V - 55 Ah Alternator Rotary current generator with electronic regulator and rectifier Charging rate max. Charging voltage Starter Starter motor D.C.

  • Page 22: Description

    Description Description Max. admissible inclination Description of function 2.2.1 The vibration required for compaction is produced by the exciter (13) which is firmly joined to the lower mass (5). This exciter (13) is designed as a central vibrator with aligned vibrations. Such a principle permits the direction of vibration to be changed by turning the eccentric weights (15).
  • Page 23 Description Forwards Standstill Reverse 2.2.2 The drive engine (1) anchored to the upper mass (4) drives the exciter (13). The torque is transmitted by means of a friction connection through the centrifugal clutch (11) and the exciter V-belt (12). 2.2.3 The centrifugal clutch (11) interrupts flow of power to the exciter (13) at low engine speed and thus permits perfect idling of the drive engine (1).

  • Page 24: Transport To Work Site /Recommendations On Compaction

    Transport to work site /Recommendations on compaction Transport to work site /Recommendations on compaction Warning Improper use can result in injury or serious material damage. ∗ Read and follow all the safety instructions at the beginning of this operator's manual, see chapter Safety information. Transport to work site Danger Danger of fire and explosions by fuel!
  • Page 25 Transport to work site /Recommendations on compaction ∗ Only attach suitable tackle at the central lifting point (16) provided. The central lifting point is located exactly above the centre of gravity of the machine. The central lifting point can be displaced rearwards (18), given an application in which the height of the machine is of importance (torque wrench setting = 85 Nm).

  • Page 26: Recommendations On Compaction

    Transport to work site /Recommendations on compaction Recommendations on compaction 3.2.1 Ground conditions The max. compaction depth depends on several factors relating to the ground condition, such as moisture, grain distribution etc, it is therefore not possible to specify exact values. Recommendation: In each case determine the max.

  • Page 27: Operation

    Operation Operation Warning Improper use can result in injury or serious material damage. ∗ Read and follow all the safety instructions at the beginning of this operator's manual, see chapter Safety information. Starting 4.1.1 Starting requirements: Engine oil: Check the oil level with the dipstick (19). Add oil (see Technical data) through the filler neck (21) as needed.

  • Page 28: Mechanical Oil Pressure Control

    Operation Mechanical oil pressure control It is necessary to reactivate the mechanical oil pressure control in the following cases: ∗ after the initial filling - first filling - of the fuel tank or if the tank has run dry. ∗ in the case of an automatic engine stop due to an inefficient engine oil supply.
  • Page 29 Operation Check oil level every 8 to 15 operating hours in spite of the mechanical oil pressure control. Warning* Danger of poisoning by exhaust fumes! Exhaust fumes contain toxic carbon monoxide that can lead to unconsciousness or death. ∗ Always switch off the engine during maintenance work! ∗...

  • Page 30: Electric Start

    Operation Electric start 1. Turn the throttle control lever (8) clockwise into load position 1/2 - 3/4. 2. Leave decompression lever (2) in the position „e“. 3. Put the ignition key into ignition switch (25) and turn it clockwise into operating position (the charge control lamp (27) lights up and the buzzer will be heard).
  • Page 31 Operation Wait until the engine stops before repeating the starting procedure. 4. The charge control lamp (27) must turn off immediately after the engine has started running and the acoustic alarm has stopped. Stop the engine immediately in case of eventual irregularities, then locate the fault and repair it.

  • Page 32: Starting The Engine With The Safety Starting Crank

    Operation Starting the engine with the safety starting crank 1. Turn the throttle control lever to the load position 1/2 - 3/4. 2. Turn the decompression lever (2) all the way to „f“. At this point automatic decompression lever engages with an audible click, and the engine is ready to start.
  • Page 33 Operation * Slowly turn the safety starting crank counter-clockwise until the ratchet engages. Then start turning the handle with force and with ever increasing speed. The highest possible turning speed must have been reached when the decompression lever reaches position ”e”...
  • Page 34 Operation * Let loose of the safety starting crank immediately and stop the engine if it should start turning in the wrong direction (smoke coming from the air filter) after a back kick. Wait until the engine stops before repeating the starting procedure. 5.

  • Page 35: Starting In Cold Weather

    Operation Starting in cold weather Always free the engine if the temperature is less than -5 °C (23 °F). 1. Push the throttle lever (8) to the full throttle position. 2. Turn decompression lever to any position in front of starting position „f“.
  • Page 36 Operation 5. Clean the area around the dosing device and then pull off the cover. 6. Fill the housing to the upper edge with low viscosity oil. Replace cover and press down with force. Exactly two successive fillings are required. 7.

  • Page 37: Starting With External Battery Etc

    Operation Starting with external battery etc. 4.6.1 Essential requirements for battery jumper cable: ∗ Cable cross-section must be at least 16 mm . (2.5 sq. inches). ∗ Clamps must be completely insulated with plastic. Only connect 12 Volt batteries. The on-board battery will explode if connected to a 24 Volt truck battery! The use of starter sprays is absolutely forbidden! External (donor) battery...

  • Page 38: Forward And Reverse Motion

    Operation Forward and reverse motion The engine speed can be infinitely varied on the throttle control lever. The direction of travel is determinet with the shift lever (6). Depending on the position of the shift lever (6), the vibration plate compacts in forward direction, at standstill or in reverse direction.

  • Page 39: Stopping The Engine

    Operation Stopping the engine Never switch off the engine with the automatic decompression (2) as this inevitably results in damage to the valve drive and decompression mechanism. 1. Move the throttle control lever (8) to the stop. 2. Turn the ignition key to the stop position and then pull it out once the engine has stopped.

  • Page 40: Maintenance

    Maintenance Maintenance Warning* Danger of poisoning by exhaust fumes! Exhaust fumes contain toxic carbon monoxide that can lead to unconsciousness or death. ∗ Always switch off the engine during maintenance work! Maintenance schedule Component Maintenance work Maintenance interval approx. 8 hours after Drive engine First oil change and filter.

  • Page 41: Engine Oil And Oil Filter

    Maintenance Engine oil and oil filter 5.2.1 Check oil level: ∗ Remove dirt from the oil dip stick area. Check oil level on oil dipstick (19). Place the machine in an horizontal (level) position and stop the engine before checking the oil level. ∗...
  • Page 42 Maintenance 5. Replace oil filter. 6. Clean filter insert carefully to avoid bending the screen netting. Wipe off screw plug or blow out with compressed air. Watch out for the ”TOP” marking on the oil filter! 7. Check and, if necessary, replace O-ring „k“. 8.

  • Page 43: Air Filter

    Maintenance Air filter 5.3.1 Air filter inspection: ∗ Check and, if necessary, remove coarse dirt accumulation such as leaves, dust deposits etc. from air admission holes. ∗ Examine and, if necessary, clean dust outlet (l) openings of cyclone prefilter. ∗ Air filter service indicator: Start engine and push throttle to full rpm’s for a few seconds.
  • Page 44 Maintenance 4. Knock the dry dirt out of the filter element. Do not clean the filter element with compressed air to avoid causing damages. Note: Check the filter insert for cracks or other damages while holding it against a light or when illuminating it with a lamp. Do not reuse the filter element if you have determine any kind of damages in the area of the filtering paper (s) or, as the case may be, in the area of the sealing lip (t).

  • Page 45: Fuel System

    Maintenance Fuel system Do not work close to an open fire and do not smoke when working on the fuel system. 5.4.1 Water separator inspection: ∗ Turn hex screw „v“ 2 - 3 turns to detach. ∗ Collect the emerging drops in a transparent container. First water and then fuel drops will emerge, as water is specifically heavier than diesel fuel.
  • Page 46 Maintenance fuel. ∗ Close fuel supply line. ∗ Pull fuel line „w“ off from both sides of the fuel filter „x“ and then put in a new filter. Important: Pay attention to cleanliness and avoid letting any dirt into the fuel line. ∗...

  • Page 47: Battery

    Maintenance Battery 5.5.1 Check acid level: 1. Remove battery cover. 2. Check acid level, if necessary top up with distilled water. 3. Secure battery cover. Make sure the positive battery terminal cover is correctly in place before proceeding to install the battery cover. Check to see that the gas venting hose does not have any kinks! Protect hands end eyes against the acid! Note: Only replace defective batteries with original Wacker batteries.

  • Page 48: Hydraulic Control

    Maintenance Hydraulic control 5.6.1 Check oil level 1. Move centre pole into vertical position. 2. Open filler bore (1). 3. Oil level must coincide with marking (a), top up with hydraulic fluid if necessary (see Technical Data). 4. Close filler bore.. 5.6.2 Venting hydraulic control 1.

  • Page 49: Exciter

    Maintenance Exciter 5.7.1 Check oil level: 1. Position vibration plate horizontally. 2. Open filler bore (40). 3. The oil level must reach the start of the thread of the filler bore (40). 4. If necessary, pour in oil (see Technical Data) through filler bore (40) (use funnel 0,75 l).
  • Page 50 Maintenance 5.7.2 Changing the oil: 1. Remove extension plates if necessary. 2. Open filler bore (40). Warning Danger through overturning. If the machine overturns, it can cause severe injury such as crushing. Only use suitable and tested hoisting gear and lifting tackle of sufficient lifting capacity.

  • Page 51: Exciter V-Belt

    Maintenance Exciter V-belt It is not necessary to retighten the V-belt owing to the use of the automatic centrifugal clutch. Should the V-belt width fall below 15,5 mm the V-belt must be replaced. 5.8.1 Changing the exciter V-belt: 1. Remove belt guard (41). 2.

  • Page 52: Faults

    Too much hydraulic oil in centre pole Correct oil level in accordance with head. mark. No reverse motion Cause Remedy Mechanical fault. Contact Wacker Neuson service dept. Loss of hydraulic oil Cause Remedy Leaks, hydraulic hose defective. Contact Wacker Neuson service dept. T01008GB.fm...

  • Page 53: The Charge Control Lamp Will Not Extinguish

    Faults The charge control lamp will not extinguish and/or the buzzer will not stop buzzing Cause Remedy Dynamo defective. Contact Wacker Neuson service dept. Replace control unit (on rear of the Control unit defective. dynamo). Engine does not start Cause Remedy Ignition lock defective.
  • Page 54 Faults T01008GB.fm...
  • Page 55 3 Disposal Disposal Disposal of batteries For customers in EU countries This device contains one or more batteries or rechargeable batteries (hereafter referred to as "batteries"). This battery is subject to the European Directive 2006/66/EC on (waste) batteries, as well as the corresponding national legisla- tion.
  • Page 56 3 Disposal...
  • Page 57 EC Declaration of Conformity Manufacturer Wacker Neuson SE Preußenstraße 41, 80809 München Product Type DPU 6555 Product type Vibrating plate Item no. 0610354, 0610355, 0610356 Installed power output Measured sound pow- dB(A) 108 er level Guaranteed sound dB(A) 109 power level Conformity assessment procedure acc.
